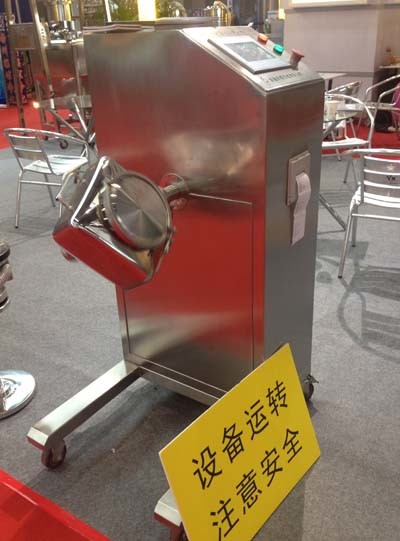

This model is for the application in laboratory for the blending of different proportion of powder, granules, or power and granules. It is good for R & D in lab for getting appropriate blending parameters.

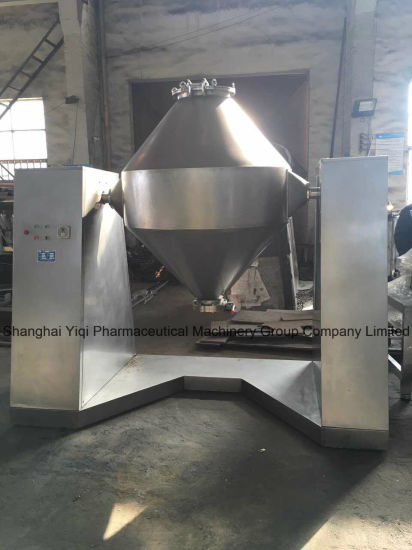

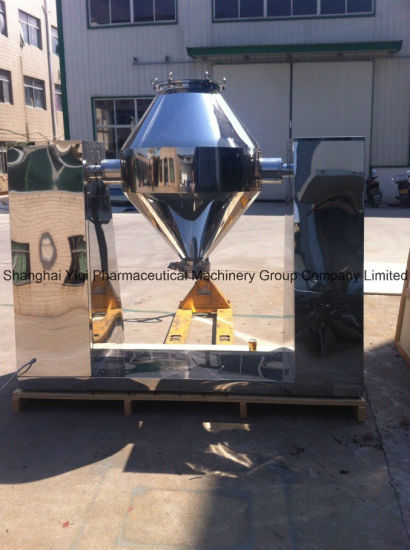

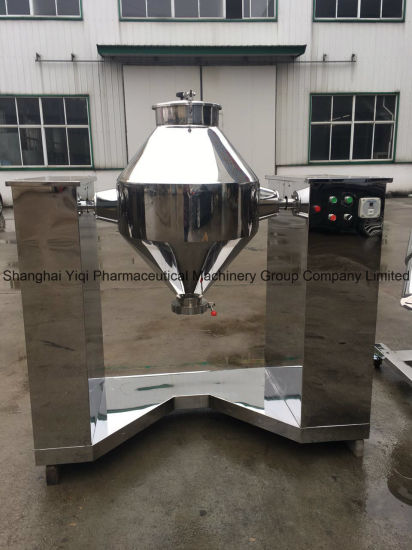

This machine is with four casters, movable for convinent using. It consist of main frame, rotating system, electrical control system and cone-shaped mixing hopper. The mixing hopper is mainly composed of stainless steel mixing chamber, stainless steel cover and collar, press block, and butterfly valve.
model | Main structural dimensions | Net loading | Blending speed | Total power | G. W |
| A | B | DN | L1 | L2 | H | H1 | H2 | L | kg | rpm | kw | kg |
| HSD-20 | 500 | 650 | 100 | 700 | 1060 | 500 | 1100 | 1150 | 16 | 10 | 3-25 | 0.25 | 200 |
| HSD-50 | 650 | 700 | 100 | 800 | 1150 | 700 | 1400 | 1300 | 40 | 25 | 3-20 | 0.37 | 400 |
| HSD-100 | 800 | 700 | 150 | 1000 | 1500 | 800 | 1500 | 1700 | 80 | 50 | 3-15 | 0.75 | 600 |
