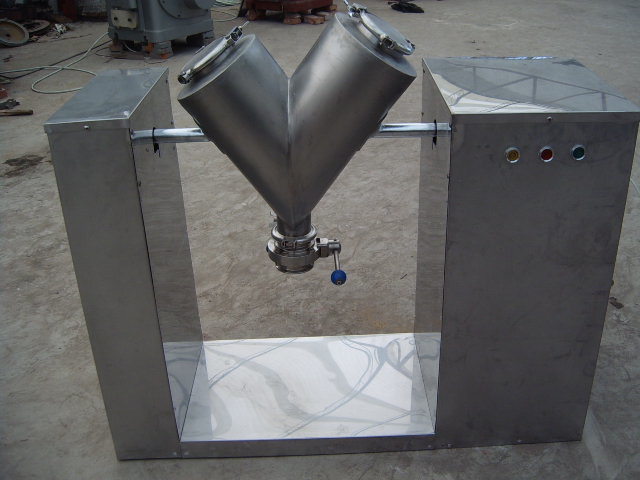

Pharmaceutical & Chemical Lab Use V Type Mixer

Quantity:
  • Shanghai, China
  • 300sets/Month
  • L/C, T/T, Western Union
  • GHJ
  • Verticle
  • Conical
  • Cycle Operating
  • New
  • Mini Mixer
  • Small Mixer for Powder or Granules
  • syq
  • Export Packaging
  • CE
  • Shanghai, China
  • 8419820090
  • V-Mixer
  • Convection Mixer
  • Gravity
  • Powder
  • CE, ISO
  • Pharmaceutical
V-shell blenders are commonly used in pharmaceutical, nutriceutical, food and related industries to mix dried powder and granules.

Through mechanical transmission, the materials in the shels are made to move back and forth, crossed over and rotate 360 degree to achieve ultimate uniform mixing. Our machine is made of high quality of thick SS304(optional 316L)mirrow polished of inner and outer shell to meet the GMP standard. We offer the most affordable V-blenders in the market from laboratory to large scale production batch.

Features:
1. No blind angles in the V-shells.
2. No accumulation of materials.
3. High speed mixing bar, with efficient and short mixing time.
4. The V-shells have elegant appearance.
5. For discharging, rotating valves and rapid swivel heads are adopted.

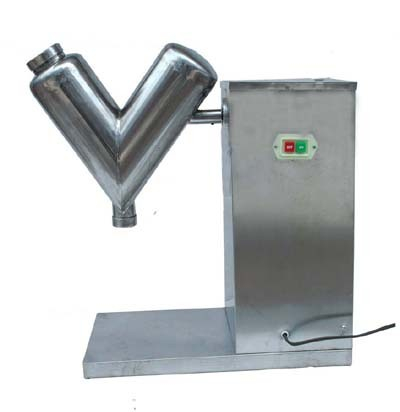

6. Single arm V-shell blenders are available for laboratory use. Pharmaceutical & Chemical Lab Use V Type Mixer
type Specification m3 Max. loading
L
Rotation speed
r.p.m
Power
kw
External dimensions
mm
Net weight
kw
V-5 0.005 5 15 0.55 650×400×600 45
V-15 0.05 15 15 0.75 980×380×900 200
V-50 0.15 50 12 0.75 1500×560×1350 250
V-100 0.3 100 12 1.1 1600×600×1450 290
V-200 0.5 200 12 1.5 1910×600×1600 320
V-500 1 500 12 2.2 3100×2300×3100 380
V-600 1.5 600 10 3 3420×2600×3500 900
V-800 2 800 10 3 3700×2800×3550 1000
V-1000 3 1200 9 4 4200×2850×3800 1100
