CE Approved GMP Standard Pharmaceutical Trouch Mixer

Quantity:


Inquire

Min. Order: 1 Set
Production Capacity: 8000PCS/Y
Transport Package: Export Standard Packaging
Payment Terms: L/C, T/T, Western Union
Model NO.: CH-200
Layout Type: Horizontal
Mixing Drum Shape: Trough Type
Additional Capabilities: Mixing
Operating type: Cycle Operating
Condition: New
for Humid Material Mixing: for Powder Mixing in Pharmaceutical Industry
with Various Volumes of Mixing Capacity: 200L, 300L, 400L, 500L, 1000L and More
for Chemical Industry: for Pharmaceutical Industry
for Food Industry Mixing of Wet Material: for Mixing of Pill Making
Trademark: SYQPM
Specification: CE
Origin: Shanghai
HS Code: 8419820090
Mixer Type: Trough Mixer
Working: Shear Mixer
Stirring Type: Spiral
Application: Liquid with Suspended Solids, Powder, Granules
Certification: CE, ISO
Application Area: Pharmaceutical

Product Description

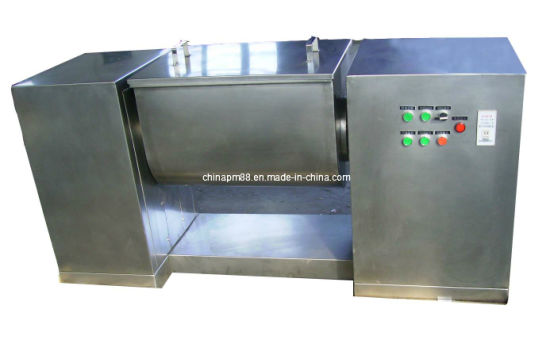

The machine is stainless steel horizontal channel mixer, in the pharmaceutical, chemical, food industries for mixing powder or paste materials.
By mechanical rotation, the S-type impeller rotating, flipping back and forth to
promote the material and mix, operation, use of electrical control, mixing time
can be set to automatically shut down, thereby improving the quality of each
batch of mixed material.

Model	Blade shape	Working volume (L)	Mixing speed (r/min)	Stirring angle	Stirring power (KW)	Batch turning power (KW)	Overall dimension (mm)	Weight (kg)
CH-100	S type single screw	100	24	<105°	2.2	0.55	1380×600×1000	400
CH-200	S type single screw	200	20	<105°	4	0.75	2000×650×1200	450
