Automatic Vacuum Emusifying Mixer & Homogenizer

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
800/Y
Payment Terms:
L/C, T/T, Western Union
Model NO.:
VEM
Layout Type:
Horizontal
Mixing Drum Shape:
Drum
Additional Capabilities:
Milling
Operating type:
Continuous Operating
Condition:
New
for Homonization:
for Pharmaceutical, Chemical or Food
Trademark:
syq
Transport Package:
Polywood Case
Specification:
CE
Origin:
Jiangsu Province
HS Code:
8479820090
Mixer Type:
Homogenizer
Working:
High Speed Mixer
Stirring Type:
Spiral
Application:
Liquid with Suspended Solids, Liquid
Certification:
CE, ISO, UL
Application Area:
Pharmaceutical

Product Description

Description:

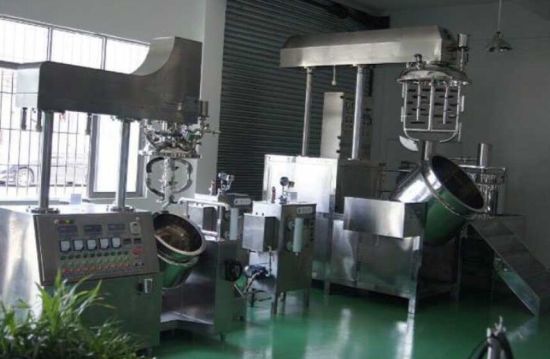

The series of vacuum mixer are mainly used in all kinds of liquid- liquid phase, liquid-solid phase mixing, dispersion and emulsion processing. All kinds of slow agitator: paddle-type, spiral type and frame type(also with scraper), can be installed in the stainless steel tank body for completed mixing. In addition, high-speed emulsifier in the tank: scattered disc type, the upper suction shearing type, the lower suction shearing type, the upper and lower suction type, and emulsifier installed at the bottom of tank body etc., can meet different requirements of materials with various physical properties and achieve superfine dispersion and emulsification.

The series of vacuum emulsifying mixer adopting sanitary stainless steel material, with good internal and external polish surface, manufactured meticulously, can maximize the the stability of equipment on the basis of mixing emulsification effects. Tanks can be heated or cooled, with Miller sandwich plate, having advantages of large exchange area and high efficiency of exchanging heat.

Application

1. Soluble (or miscible materials) solid and liquid in accelerated dissolution
2.Immiscible solid-liquid phase suspensions in superfine mixing dispersion
3. Immiscible liquid-liquid phase solution in inclusive micro-emulsion
4. High-viscosity material powder-liquid in overall mixing and superfine dispersion
5.Nanomaterial aggregates in strong deploymerization and superfine dispersion
Cosmetic: face cream, hand cream, BB cream, lipstick cream, sunscreen cream, eyelash to cream, hair gel, lotion, bath shampoo, hair gel, nail polish, hair conditioner etc.
Pharmaceutical industry: ointments, syrup, nutrition, bio-products, paste of pharmaceutical etc.
Daily use industry: toothpaste, detergents, shoes polish, soap, fragrance etc
Food industry: sauces, jam, chocolate, butter, vegetable proteins, animal proteins etc.
Chemical industry: Painting, pigment, dyes, paints, adhesives detergents.

Item	VEM 5L	VEM 10L	VEM 30L	VEM 50L	VEM 100L	VEM 150L	VEM 250L	VEM 350 L	VEM 500L	VEM 650 L	VEM 1000 L
Volume(L)	6	12	35	63	120	165	250	350	500	650	1000
Working volume(L)	5	10	30	50	100	150	200	280	400	520	800
Mixing power(KW)	0.55	0.55	0.75	0.75	1.1	1.1	1.5	2.2	3	3	7.5
Mixing speed(RPM)	0-86RPM 0-65RPM
Homogenizing power (KW)	0.75	1.1	1.5	1.5	3	3	4	5.5	7.5	11	15
Diameter of homogenization(MM)	50	50	80	80	100	100	125	125	150	150	250
Woring speed(RPM)	0~3200RPM
Design volume of the water tank(L)	3	6	20	35	70	95	130	170	300	400	600
Working volume of the water tank(L)	2.5	5	17	28	60	85	100	130	250	320	480
Mixing motor(KW)	0.015	0.015	0.18	0.37	0.55	0.55	0.75	0.75	1.1	1.1	1.5
Mixing speed(RPM)	60-1000
Design volume for material tank(L)	3	6	15	20	50	70	130	200	250	300	500
Workig volume of the material tank(L)	2.5	5	13	22	40	65	100	160	200	240	800
Mixing power(KW)	0.015	0.015	0.18	0.37	0.55	0.55	0.75	0.75	1.1	1.1	1.5
Mixing speed (RPM)	60-1000
