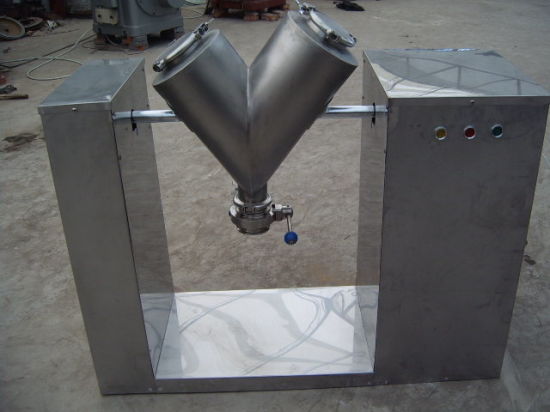

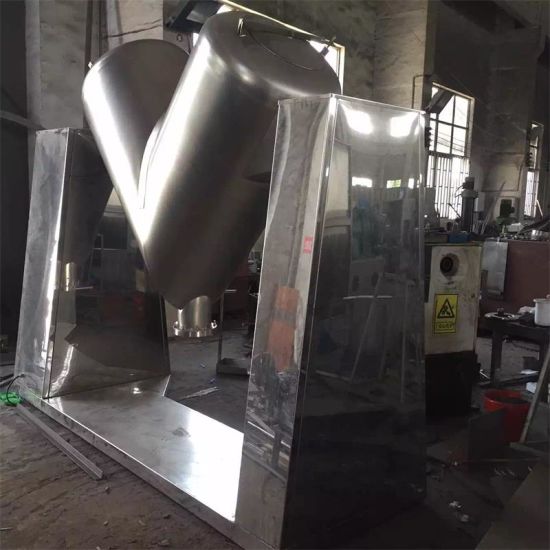

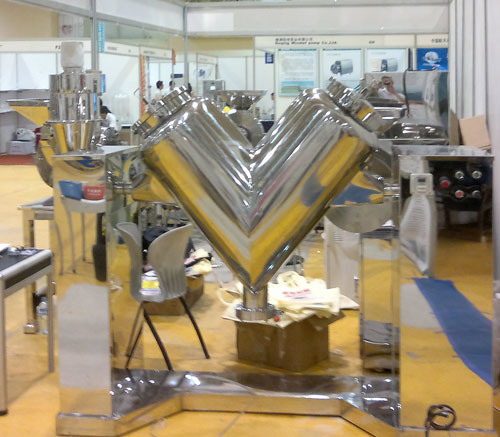

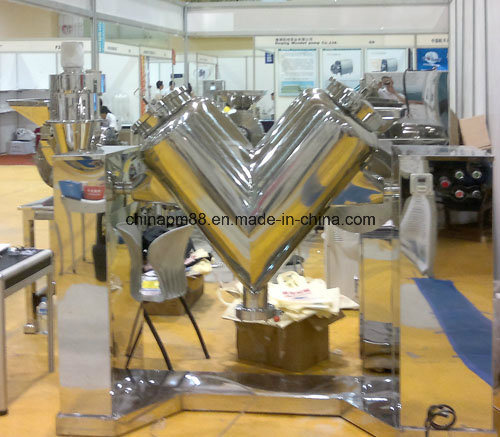

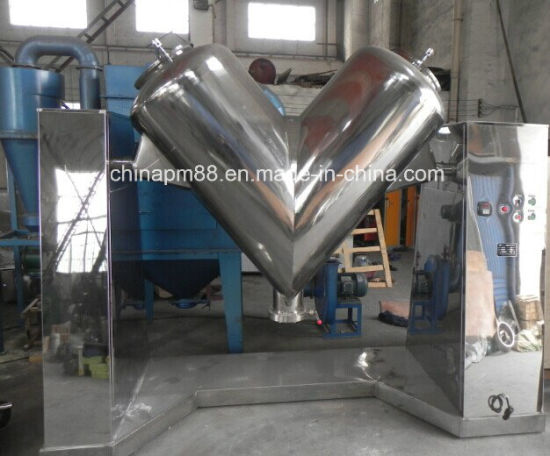

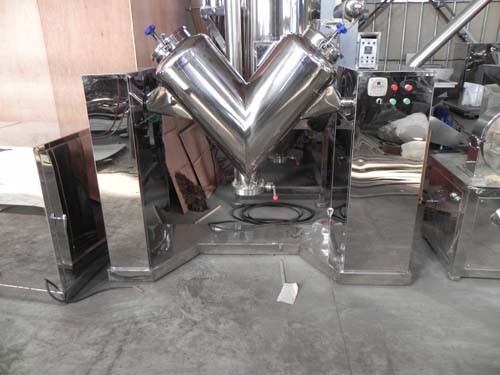

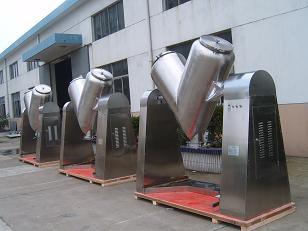

Automatic Pharmaceutical V Shell Power Granule Mixer

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 300sets/Month
Payment Terms: L/C, T/T, Western Union
Model NO.: GHJ
Layout Type: Verticle
Mixing Drum Shape: Conical
Operating type: Cycle Operating
Condition: New
Powder Mixer for Lab: Mini Mixer
Mixer for Dry Materials: Small Mixer for Powder or Granules
Trademark: syq
Transport Package: Export Packaging
Specification: CE
Origin: Shanghai, China
HS Code: 8419820090
Mixer Type: V-Mixer
Working: Convection Mixer
Stirring Type: Gravity
Application: Powder
Certification: CE, ISO
Application Area: Pharmaceutical

Product Description

V-shell blenders are commonly used in pharmaceutical, nutriceutical, food and related industries to mix dried powder and granules.

Through mechanical transmission, the materials in the shels are made to move back and forth, crossed over and rotate 360 degree to achieve ultimate uniform mixing. Our machine is made of high quality of thick SS304(optional 316L)mirrow polished of inner and outer shell to meet the GMP standard. We offer the most affordable V-blenders in the market from laboratory to large scale production batch.

Features:
1. No blind angles in the V-shells.
2. No accumulation of materials.
3. High speed mixing bar, with efficient and short mixing time.
4. The V-shells have elegant appearance.
5. For discharging, rotating valves and rapid swivel heads are adopted.
6. Single arm V-shell blenders are available for laboratory use. Automatic Pharmaceutical V Shell Power Granule Mixer

type	Specification m3	Max. loading L	Rotation speed r.p.m	Power kw	External dimensions mm	Net weight kw
V-5	0.005	5	15	0.55	650×400×600	45
V-15	0.05	15	15	0.75	980×380×900	200
V-50	0.15	50	12	0.75	1500×560×1350	250
V-100	0.3	100	12	1.1	1600×600×1450	290
V-200	0.5	200	12	1.5	1910×600×1600	320
V-500	1	500	12	2.2	3100×2300×3100	380
V-600	1.5	600	10	3	3420×2600×3500	900
V-800	2	800	10	3	3700×2800×3550	1000
V-1000	3	1200	9	4	4200×2850×3800	1100
