2D Movement Mixing Machine (EYH Series)

Quantity:
  • Shanghai, China
  • 8000PCS/Y
  • L/C, T/T, Western Union
  • EYH
  • Non-Customized
  • New
  • 1 Year
  • for Food, Chemical or Pharmaceutical Industry
  • SYQ
  • Wooden Case for Export Standard
  • CE
  • Shanghai, China
  • 8419820090
  • Preparation Machinery
  • Tablet, Capsules, Chemical Materials etc
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
This is a rocking mixer for powder blending and it is widely used in pharmaceutical, chemical, food, dye, feed, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume(1000tp-10000litres).

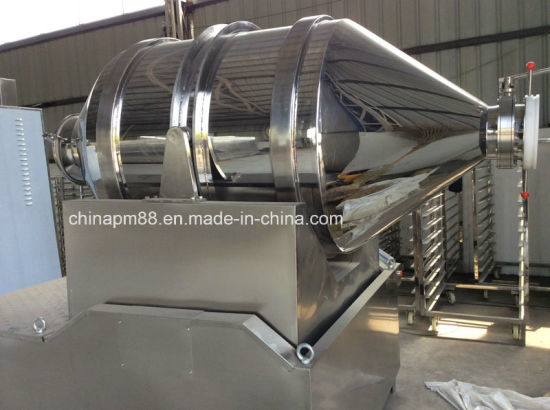

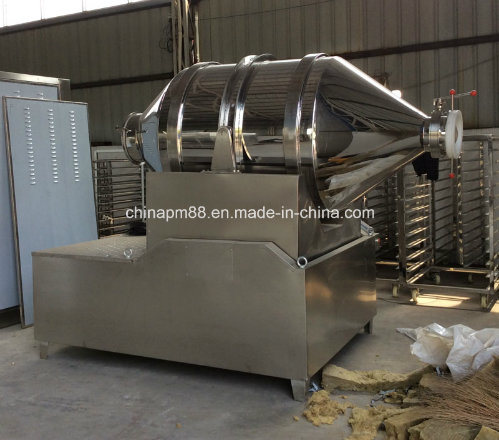

EYH Series Two Dimensions Mixer mainly consists of three big parts. rotating cylinder,swinging rack and frame. The rotating cylinder lies on the swinging rack,supported by four wheels and its axial fixation is done by two stop wheels Two of four wheels are driven by rotating system to make the cylinder rotate. The swinging rack is driven by a set of crandshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
The rotating cylinder of EYH Two Dimensions Mixer can make two motions at the same time.One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack.Materials to be mixed will be rotated when the cylinder is rotating,and will be mixed from left to right and vice versa when the cylinder is swinging.As the result of these two motions,materials can be mixed fully in a short time. EYH Two Dimensions Mixer is suitable for mixing of all powder and granule materials.

The mixing barrel swings while rotates so that the materials in the barrel can be fully mixed. Because the discharge port of the barrel is out of the barrel cenbtreline, the mixer features quick mixing and discharging, as well as high volume mixing capacity.

2D Movement Mixing Machine (EYH Series)
model Hopper volume Loading volume Max. loading weight Rotating speed Motor rate Overall dimension
(L×W×H)
Hopper weight Weight
(kg)
EYH-60 60 30 20 50 0.4 700×730×1100(mm) 15 115
EYH-150 150 75 50 37 1.15 800×1050×1450(mm) 50 190
EYH-300 300 150 100 30 1.15 900×1350×1550(mm) 60 340
EYH-600 600 300 200 23.6 3 1170×1640×2050(mm) 140 1150
EYH-800 800 400 280 19.8 3 1320×1950×2150(mm) 200 1600
EYH-1000 1000 500 350 19.8 3 1360×2040×2300(mm) 240 1700
EYH-1500 1500 750 520 16.2 4.4 1580×2400×2550(mm) 320 2000
EYH-2000 2000 1000 700 16.2 7.4 1740×2600×2770(mm) 430 2600
EYH-3000 3000 1500 1050 13.8 11 1800×2900×2950(mm) 620 3500
EYH-4000 4000 2000 1400 12.8 13 1970×3300×3300(mm) 700 4100
EYH-6000 6000 3000 2100 11.2 18.5 2300×2900×3800(mm) 1100 6100
EYH-8000 8000 4000 2800 10.4 22 2540×4100×4050(mm) 1450 7900
EYH-10000 10000 5000 3500 9 30 2900×4500×4400(mm) 1650 9500
