Yk Model Swing Granulating Machine (YK-160)

Quantity:
  • Shanghai, China
  • 5000PCS/Y
  • L/C, T/T
  • YK-160
  • Customized
  • New
  • 1 Year
  • for Wet Materials
  • Pharmaceutical Manufacturing Machine
  • Syq
  • Standard Export Packaging
  • GMP
  • Shanghai
  • 8479820090
  • Preparation Machinery
  • Granules
  • High Precision
  • CE, GMP, ISO
  • 220V
  • Non-Computerized
The machine is for wet materials by forcing them through the screen under its swing cylinder. It is widely used in food, chemical and pharmacy industries. The machine can also be used for crushing dry block materials.

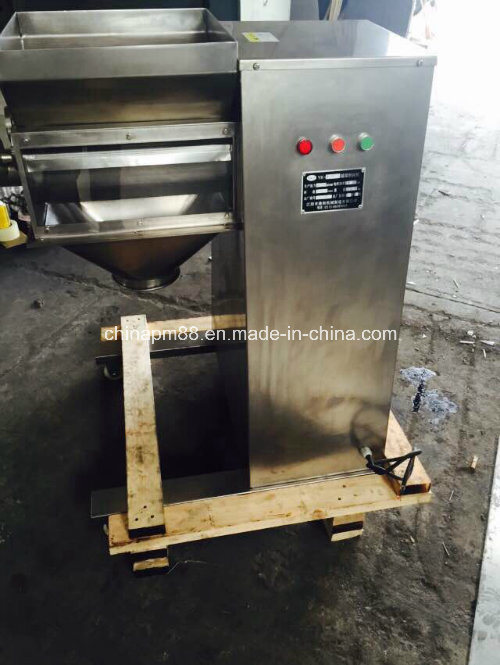

Yk Model Swing Granulating Machine (YK-160)

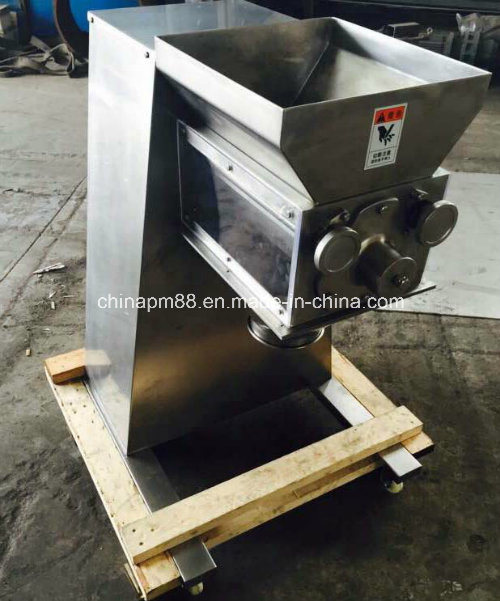

Yk Model Swing Granulating Machine (YK-160)
2. Working Method

Driven by the motor, V-belt Pulley, worm and wormwheel, the eccentric bent shaft and lifting rack make the heptangular hobs rotating in reciprocation, so the raw materials between the screen and the hobs are squeezed into granules through the screen. The production capacity varies as to different materials, materials' water content and viscosity and screen hole size, etc.

For dry block materials, the cylinder crushes them and forces them to discharge through the screen.
3. Structure

1. The feeding hopper and granulating units are constructed for easy installation, cleaning and operation of the machine
2. Granulating units are duly sealed in case of any lubricating oil leaking into the raw materials
3. Screen clip is used to hold the screen close and tight to the swing cylinder, which can be adjusted manually with the hand wheel, use the ratchet to immobilize the net into place.
4. Use different sizes of screens to make different sizes of granules.

3. Technical Parameters
Model YK-100 YK-160
Capacity(kg/h) 30-200 50-300
Motor power(kw) 1.1 2.2
Cylinder speed(rpm) 55
Swing angle 360
Cylinder diameter(mm) 100 160
Weight(kg) 280 450
Overall size(L*W*H)(mm) 700*600*1050 1000*800*1300
