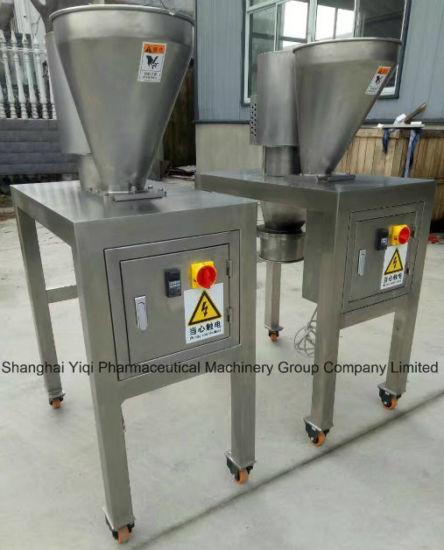

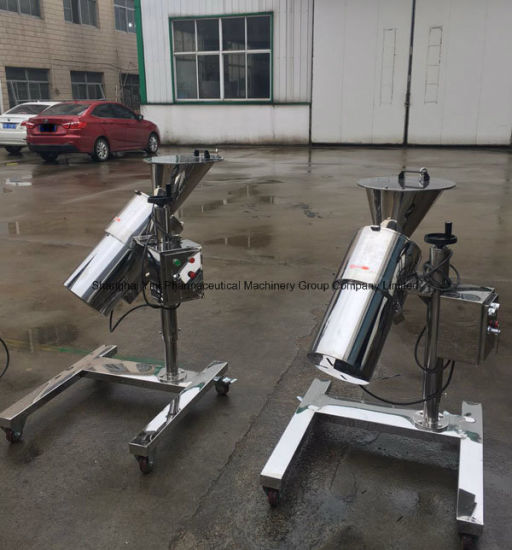

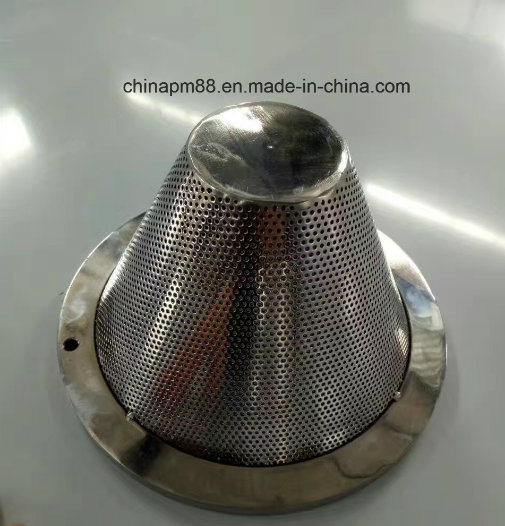

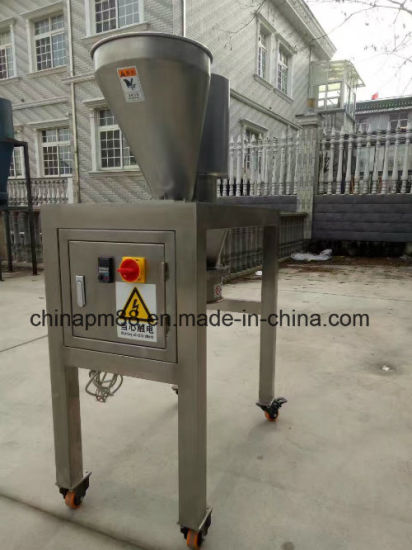

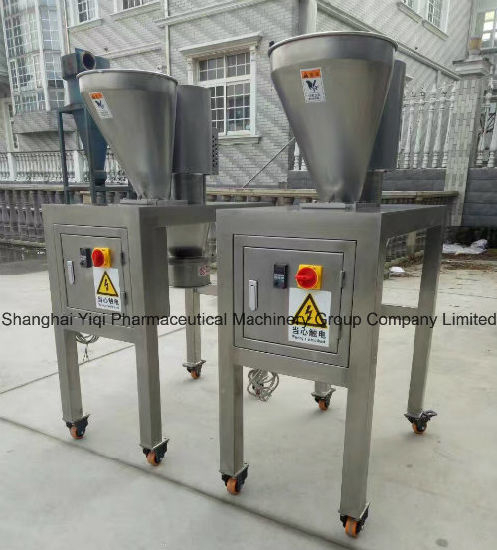

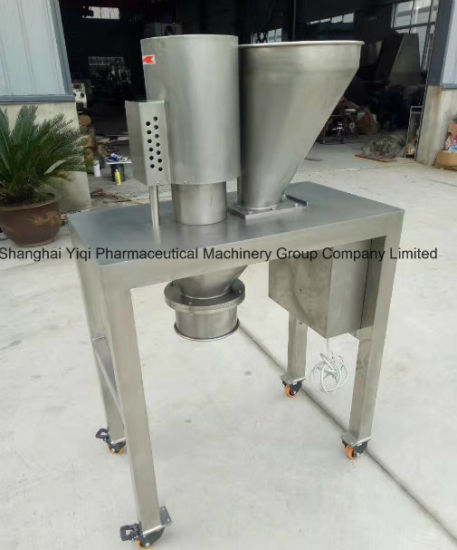

FZ series pulverizing granulator Brief Description : FZ Series Milling and Granulating Machines are widely applied in pharmaceutical, food, and fine chemical processing industries. It is completely made of high quality stainless steel SS304 or even SS316, and it is strictly conformed to the current cGMP standard. It is one of the most necessary solid dosage processing equipment in re-sizing the granules, re-granulating unqualified tablets or retrieve powder from unqualified capsules. Working Principle: The material to be processed enters into the feed inlet of grinding and granulating machine, which drops into the conical sieve chamber. The rotary knife rotates a whirling action to the material, and place the granules to the sieve mesh surface by centrifugal force. The granules are grinded into particles by the shearing action produced by the rotary knife, the sieve mesh, and discharged through the sieve apertures. The size s of particles can be adjusted by the sieve meshes . Technical Parameters: | Parameters | FZB-150 | FZB-300 | FZB-450 | FZB-700 | FZB-1000 |
| Capacity | 15-150 kg/hr | 30-300 kg/hr | 45-450 kg/hr | 70-700 kg/hr | 100-1000 kg/hr |
| Granularity | 6-80 mesh |
| Temp. Rise (C) | < 30 |
| Range of Speed | 300~3600 rpm |
| Power | 1.5 kw | 1.5 kw | 2.2 kw | 3.0 kw | 5.5 |
| Dimension | 850 * 450 *1380 | 850 * 450 * 1380 | 930 * 450* 1460 | 1200 * 580 * 1800 | 1300*600*1875 |
Height of discharge hopper
from the ground level | 650 mm | 650 mm | 690 mm | 690 mm | 700 mm |
FZB means with frequency control.
