China High Speed Multi Mill (KZL series)

Quantity:
  • Shanghai, China
  • 600/Y
  • L/C, T/T, Western Union, Paypal
  • KZL-300
  • Non-Customized
  • New
  • 1 Year
  • 150-400kg Per Hour
  • 1.65cbm
  • 380V, 50Hz, 3p
  • 20L
  • syq
  • Polywood Case
  • 2.2kw
  • Jiangsu Province
  • 8479899090
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, GMP
  • 380V
  • Non-Computerized
Features
This m ulti mill model KZL model is widely applied in the pharmaceutical, chemical and foodstuff industries with good grinding effect. It's designed reasonably with filter sieve s , and main shaft. This is a high speed grinding granulator which could handle the block s of brittle material s and smash them easily .
The specialized friction filter grind s solid granules and block s by a centrifugal force .
This high efficient granulator could replace oscillating granulator.

Applications

Crush heat sensitivity raw materials.
Make dry or wet granule uniform.
Crush and granulate blocks.
Make granule s from wet material s

Technical parameters


Type 80 120 160 200
Length (mm) 185 185 185 185
Diameter of filter hole (mm) 1--8
Product capacity (kg/h) 50-100 100-200 150-300 200-400
Motor power (kw) 0.55 1.1 1.5 2.2
Running speed (r/min) 1500-3000 1000-1500 1000-1500 800-1000
Overall size 650x450x1000 1000x800x1200 1060x850x1350 1100x1000x1500


Technical parameters of KZL-300 high speed grinding granulator:
Model KZL-300
Blade length(mm) 220
Blade Diameter(mm) 300
Working capacity( kg/h) 150-400
Motor (kw) 2.2
(Frequency conversion stepless speed regulation)
Rotation speed (r/min) 200-1450
G. W (kg) 200
Overall dimensions(mm) 1100*1000*1500

Picture:

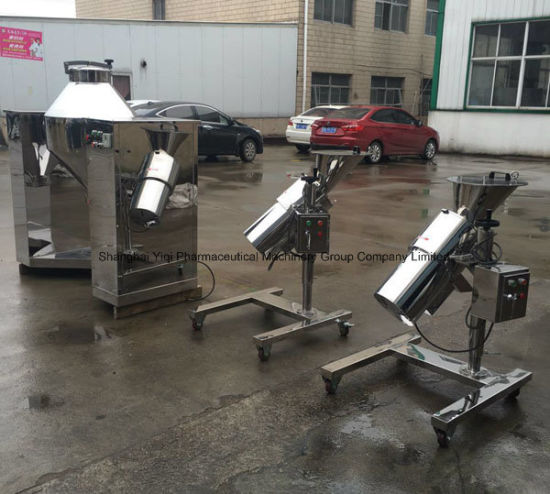

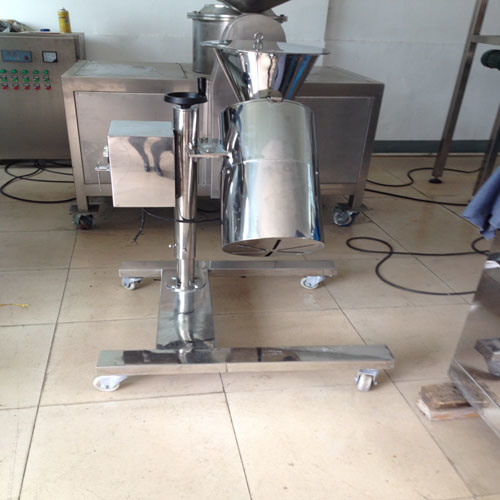

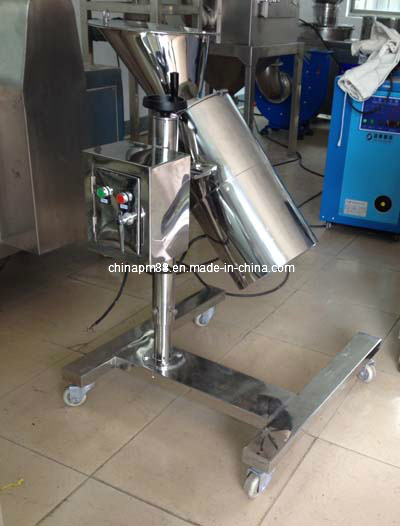

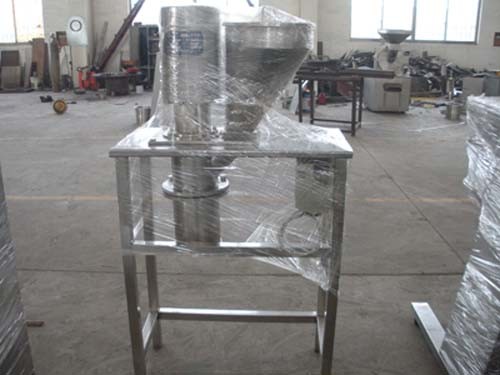

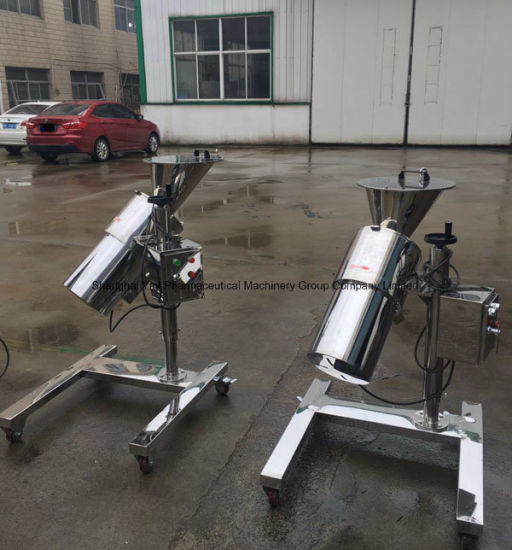

China High Speed Multi Mill (KZL series)
