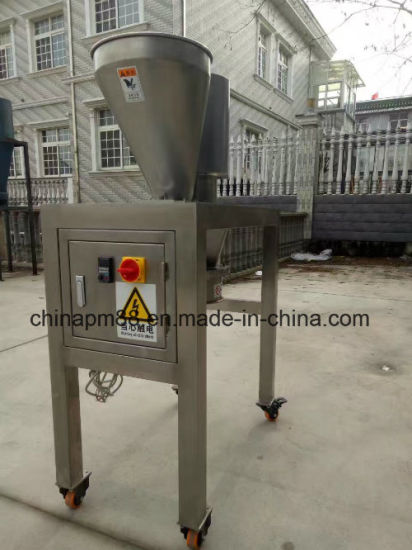

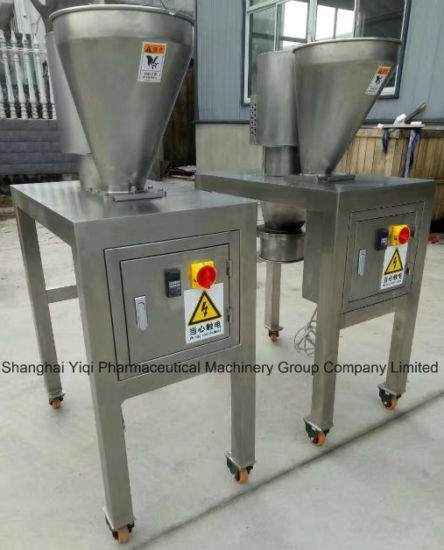

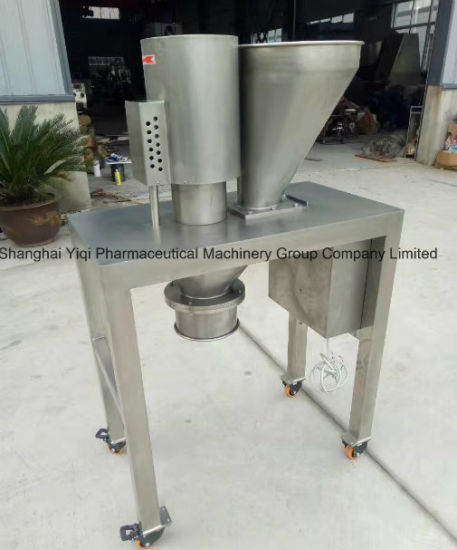

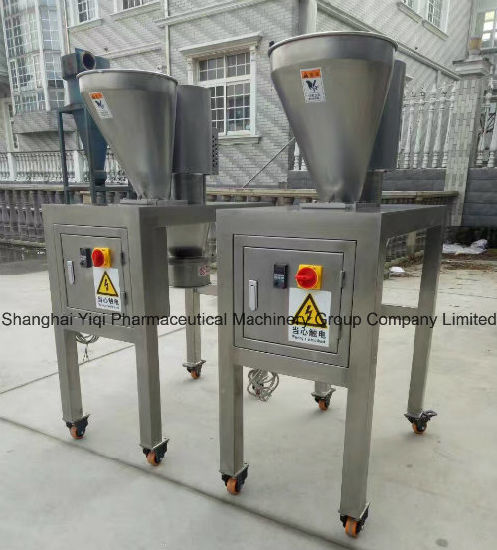

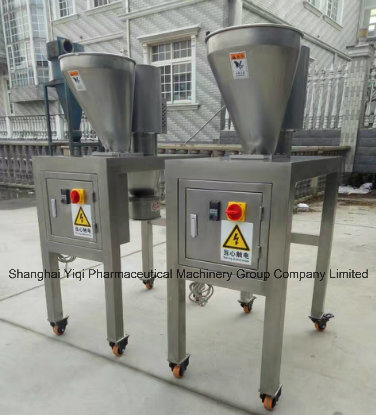

Fz Series Grinding Granulator /Co-Mill

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 800
Payment Terms: L/C, T/T
Model NO.: FZ
Customized: Non-Customized
Condition: New
Warranty: 1 Year
Capacity: 15-1000kg
Power: 2.2kw
Trademark: SYQ
Transport Package: Polywood Case
Specification: 1CBM
Origin: Shanghai
HS Code: 8479899090
Type: Preparation Machinery
Finished Dosage Form: Granules
Precision: Precision
Certification: CE, GMP, ISO
Voltage: 380V
Computerized: Non-Computerized

Product Description

FZ series pulverizing granulator

Brief Description :
FZ Series Milling and Granulating Machines are widely applied in pharmaceutical, food, and fine chemical processing industries. It is completely made of high quality stainless steel SS304 or even SS316, and it is strictly conformed to the current cGMP standard. It is one of the most necessary solid dosage processing equipment in re-sizing the granules, re-granulating unqualified tablets or retrieve powder from unqualified capsules.

Working Principle:

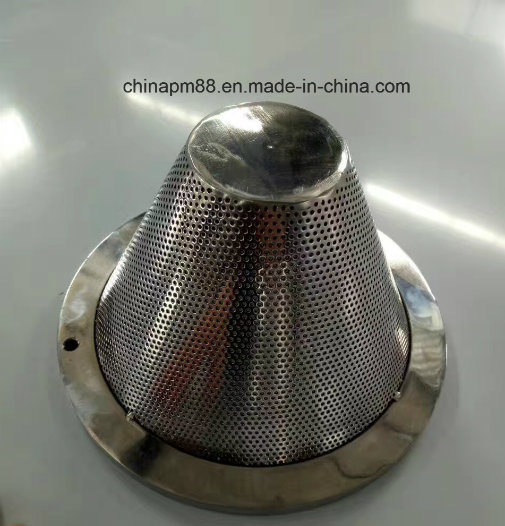

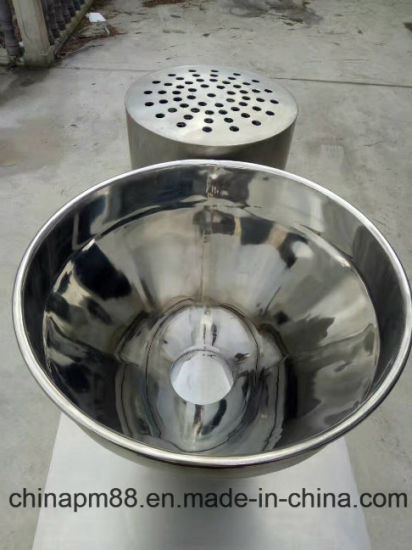

The material to be processed enters into the feed inlet of grinding and granulating machine, which drops into the conical sieve chamber. The rotary knife rotates a whirling action to the material, and place the granules to the sieve mesh surface by centrifugal force. The granules are grinded into particles by the shearing action produced by the rotary knife, the sieve mesh, and discharged through the sieve apertures. The size s of particles can be adjusted by the sieve meshes .

Technical Parameters:

Parameters	FZB-150	FZB-300	FZB-450	FZB-700	FZB-1000
Capacity	15-150 kg/hr	30-300 kg/hr	45-450 kg/hr	70-700 kg/hr	100-1000 kg/hr
Granularity	6-80 mesh
Temp. Rise (C)	< 30
Range of Speed	300~3600 rpm
Power	1.5 kw	1.5 kw	2.2 kw	3.0 kw	5.5
Dimension	850 * 450 *1380	850 * 450 * 1380	930 * 450* 1460	1200 * 580 * 1800	13006001875
Height of discharge hopper from the ground level	650 mm	650 mm	690 mm	690 mm	700 mm
