High Shear Mixing Granulator PLC Control

Quantity:
  • Shanghai, China
  • 600/Y
  • L/C, T/T, Western Union
  • GHL-100
  • Customized
  • New
  • 1 Year
  • Mixing and Granulating

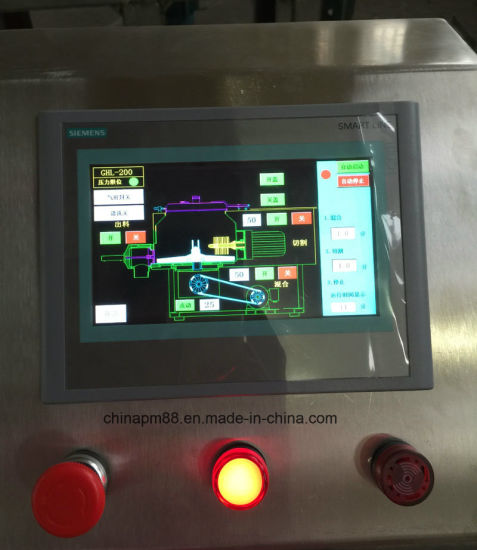

  • PLC Controlled HMI System
  • GMP Standard High Quality
  • SYQ
  • Standard Wooden Pack for Export
  • CE
  • Shanghai
  • 8419303090
  • Preparation Machinery
  • Granules
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
This high shear mixer granulator is very widely applied in pharmaceutical, food, and chemical industry for granulating and mixing. It works in high efficiency. Normally works together with fluid bed dryer in pharmaceutical manufacturing.

Features:

The machine adopts horizontal cylinder structure, its structure is reasonable.

Air filled seal shaft for to drive. When washing the machine, it can be changed to water.
· T he granule is closed to ball shape. Its fl uidity is good.
·Compared to traditional process, 25% of adhesive can be reduced and the drying time is short.
·The dry mixing time is 2 minutes and the granulating time is 1-4 minutes. Compared to the traditional process, 4-5 times of efficiency is raised.
·Dry mixing, humid mixing and granulating are finished in the same sealed container.
·It is in conformity with the requirements of GMP.
·The whole operation has strict safe and protective measures.
Principle
The powder raw material and adhesive in a cylinder are fully mixed at the bottom to become a humid soft material. Then it is cut by high-speed cutter and become uniform granules.

Technical parameters of GHL- 100:

1 . Total volume of granulating tank: 10 0L
2 . Working capacity: 20-50 kg/ batch
3 . Stirring paddle: 8 0- 1 20r.p.m
4 . Power of stirring motor : 4.5/7.5 KW
5 . Chopper speed : 2900/ m in
6 . Power of chopper : 2.2 KW
7 . Consumption of compressed air :0. 6 m3/min



High Shear Mixing Granulator PLC Control

High Shear Mixing Granulator PLC Control

High Shear Mixing Granulator PLC Control


High Shear Mixing Granulator PLC Control


High Shear Mixing Granulator PLC Control
This machine could be integrated with fluid bed dryer to be completed granulating line:
High Shear Mixing Granulator PLC Control


Technical Parameters of GHL Series high shear mixer granulator:

item
specification
name unit 10 50 150 200 250 300 400 600
capacity L 10 50 150 200 250 300 400 600
output kg/batch 3 15 50 80 100 130 200 280
mixing speed r.p.m 300/600 200/400 180/270 180/270 180/270 140/220 106/155 80/120
admix power kw 1.5/2.2 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
cutting speed r.p.m 1500/3000 1500/ 3000 1500/ 3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
cutting power kw 0.85/1.1 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
compressed air consumption m3/min 0.6 0.6 0.9 0.9 0.9 1.1 1.5 1.8
weight kg 250 500 800 1000 1300 1800 2200 2600
