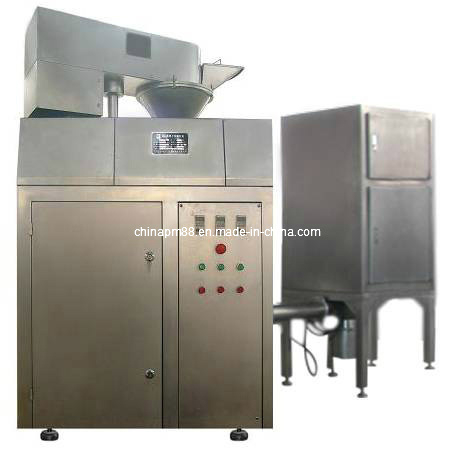

Pharmaceutical Granulating Machinery Compactor & Dry Granulator

Quantity:
  • 500/Y
  • Strong Wooden Case
  • L/C, T/T, Western Union, cash
  • GK-80
  • Customized
  • New
  • 1 Year
  • for Pharmaceutical Industry and Chemical Industry
  • for Extruding The Granules From Dry Materials
  • It Is Designed for Chemical Industry Too
  • High Quality with Druable Working Life
  • SYQ
  • CE
  • Shanghai
  • 84309090
  • Preparation Machinery
  • Granules
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
The machine is an ideal equipment to compress and making granules from dry powder materials by using the crystal water contained (0.5-5%) in the dry powder itself.

The machine has such features as reliable, compact structure, easy cleaning and repair, high output and good fluidity, etc.

The granules made by this machine can be further used to make capsule fillings, electuary and pills, the machine is mainly used in pharmacy, foodstuff, chemical and other related industries. And it is especially suitable for the granulating process when wet granulating is not applicable. It can also be matched into use with spray drier, mixer, etc.

Technical Parameters:
1) Ouput: 150-250kg/hour ( flake shape), 50-100kg/hour ( granule shape)
2) Granule size: 0.5-2mm
3) Max pressure: 294Kn(30T)
Side sealing pressure: 9.8Kn
4) Feeding motor: 2.2Kw
5) Granulating Motor: 2.2Kw
6) Compressing motor: 7.5Kw

7) Feeding screw speed: 6-33 adjustable
8) Compressing Wheel speed: 4-25 adjustable

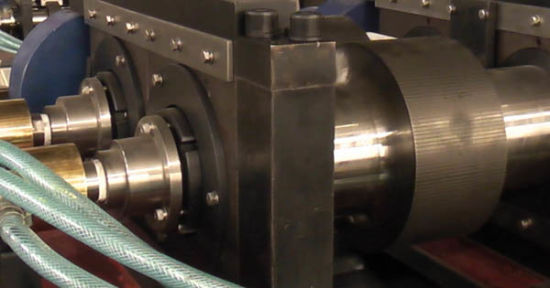

9) Dimension of compressing wheel: 240X100mm
10) Weight ( approximately): 2000Kg
11) Main unit dimension: 1600X1000X2300mm
12) Control cabinet dimension: 600X400X1300mm
Pharmaceutical Granulating Machinery Compactor & Dry Granulator

Pharmaceutical Granulating Machinery Compactor & Dry Granulator



MODE
MODEL 80 MODEL 120 MODEL 200
Capacity(kg/h) 20-60 30-100 50-200
Hopper volume(L) 3 5 8
Roll size(mm) 200×80 200×120 250×200
Max roll pressure(T) 10×2 15×2 25×2
Roll speed(r/min ) 2-20(adjustable) 2-20(adjustable) 2-30(adjustable)
Feeding speed(r/min) 6-60(adjustable) 6-60(adjustable) 6-60(adjustable)
Roll drive power(kw) 4 7.5 11
Feeding drive power(kw) 1.5 2.2 3
Granulating drive power(kw) 1.1 2.2 2.2
Oil pump drive power(kw) 0.75 1.1 2.2
Max hydraulic pressure(M Pa) 20 30 50
Roll & feeding speed control Electromagnetic speed control or frequency changing speed control Electromagnetic speed control or frequency changing speed control Electromagnetic speed control or frequency changing speed control
Weight(kg) 2300 2800 3500
Overall size (L×W×H)(mm)
1540×1250
×2400
1800×1650
×2600
2200×2500
×2200
