Ce Automatic Pharmaceutical Dry Granulator Gk-120

Quantity:
  • Shanghai, China
  • 500/Y
  • L/C, T/T, Western Union, cash
  • GK-120
  • Customized
  • New
  • 1 Year
  • for Pharmaceutical Industry and Chemical Industry
  • for Extruding The Granules From Dry Materials
  • It Is Designed for Chemical Industry Too
  • High Quality with Druable Working Life
  • SYQ
  • Strong Wooden Case
  • CE
  • Shanghai
  • 84309090
  • Preparation Machinery
  • Granules
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
It is for compacting and granulating dry powder materials by using the crystal water contained (0.5-5%) in the dry powder itself. The machine is easy operation and cleaning, with compact structure, and high output and good fluidity. It is welcomed by users for its durability.
The granules made by this machine can be further used to make capsule fillings, electuary and tablets, the machine is mainly used in pharmaceutical, foodstuff, chemical and other related industries. And it is especially suitable for the granulating process when wet granulating is not applicable. It can also be matched into use with spray drier, mixer, etc.

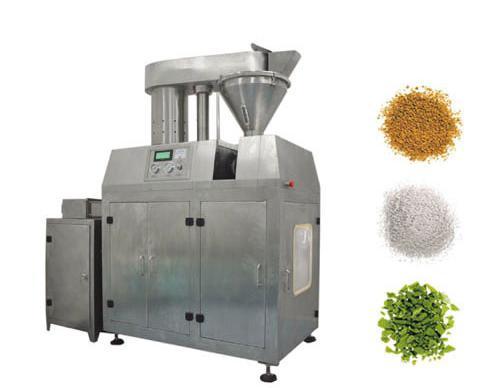

Ce Automatic Pharmaceutical Dry Granulator Gk-120

Technical Parameters:
1) Ouput: 150-250kg/hour ( flake shape), 50-100kg/hour ( granule shape)
2) Granule size: 0.5-2mm
3) Max pressure: 294Kn(30T)
Side sealing pressure: 9.8Kn
4) Feeding motor: 2.2Kw
5) Granulating Motor: 2.2Kw
6) Compressing motor: 7.5Kw

7) Feeding screw speed: 6-33 adjustable
8) Compressing Wheel speed: 4-25 adjustable
9) Dimension of compressing wheel: 240X100mm
10) Weight ( approximately): 2000Kg
11) Main unit dimension: 1600X1000X2300mm
12) Control cabinet dimension: 600X400X1300mm

Technical Parameters:

MODE
MODEL 80 MODEL 120 MODEL 200
Capacity(kg/h) 20-60 30-100 50-200
Hopper volume(L) 3 5 8
Roll size(mm) 200×80 200×120 250×200
Max roll pressure(T) 10×2 15×2 25×2
Roll speed(r/min ) 2-20(adjustable) 2-20(adjustable) 2-30(adjustable)
Feeding speed(r/min) 6-60(adjustable) 6-60(adjustable) 6-60(adjustable)
Roll drive power(kw) 4 7.5 11
Feeding drive power(kw) 1.5 2.2 3
Granulating drive power(kw) 1.1 2.2 2.2
Oil pump drive power(kw) 0.75 1.1 2.2
Max hydraulic pressure(M Pa) 20 30 50
Roll & feeding speed control Electromagnetic speed control or frequency changing speed control Electromagnetic speed control or frequency changing speed control Electromagnetic speed control or frequency changing speed control
Weight(kg) 2300 2800 3500
Overall size (L×W×H)(mm)
1540×1250
×2400
1800×1650
×2600
2200×2500
×2200
