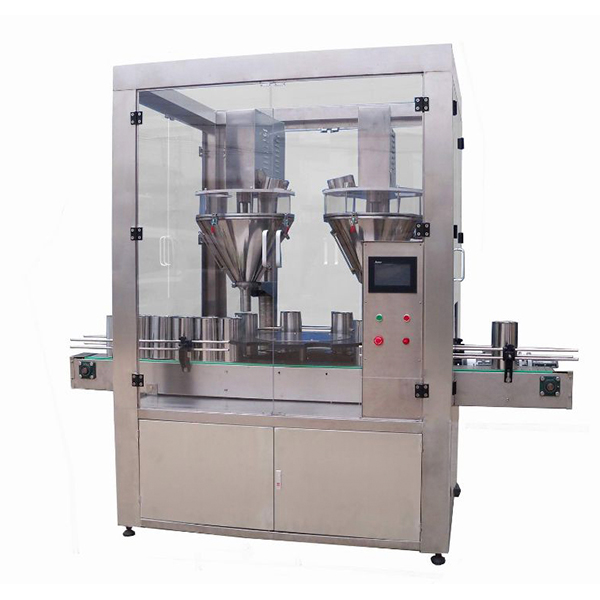

High Precision Rotated Double Head Filling Weighing Machine

This machine is suitable for filling for cans, jars, or citations of every kind of powder, ultra-fine powder, or in a granular form. For example, milk powder, rice powder, protein powder, cocoa powder, powdered drugs, chicken powder, chicken essence, additives, sugar, dyes, spices, etc.
Availability:
Quantity:


This machine is suitable for filling for cans, jars, or citations of every kind of powder, ultra-fine powder, or in a granular form. For example, milk powder, rice powder, protein powder, cocoa powder, powdered drugs, chicken powder, chicken essence, additives, sugar, dyes, spices, etc.


Features:

1, the whole machine is made of stainless steel, GMP standard.

2, Chinese and English LCD touch screen, simple operation, packaging weight can be adjusted at any time, the working state can also be changed at any time.

3. Servo motor is used for filling, which has the advantages of high precision, fast speed, large torque, adjustable speed and good stability.

4. Taiwan high-quality deceleration motor is adopted for mixing: low noise and long service life.

5. Online weighing feedback, automatic secondary filling according to the

specific gravity of materials, ensuring high precision and high speed online filling.

6, fully sealed air resistance glass stainless steel, easy to observe the

working state, dust does not leak and fly, filling exit with dust absorption

device, protect the workshop environment is clean.

7, side open door hopper, easy to clean without dead Angle, easy to replace the screw accessories.






Technical parameters of AT-FCZ-ST:

Form of measurement

Double station weighing & filling

Container size(mm)

φ50—180mm H: 50—350mm

Weighing range(g)

100—2000g(by changing parts)

Weighing precision(g)

±(0.5-2)

Speed(can, jar/min)

30-40

Power(kw)

3P,380V(or customized single phase 220V)power:3.5KW

Air pressure/consumption

6--8kg/cm2 ,0.2m3/min

G.W (kg)

1000

Overall dimensions(mm)

3330×1400×2400

Hopper volume (L)

50
