Automatic Powder Dispenser
Introduction

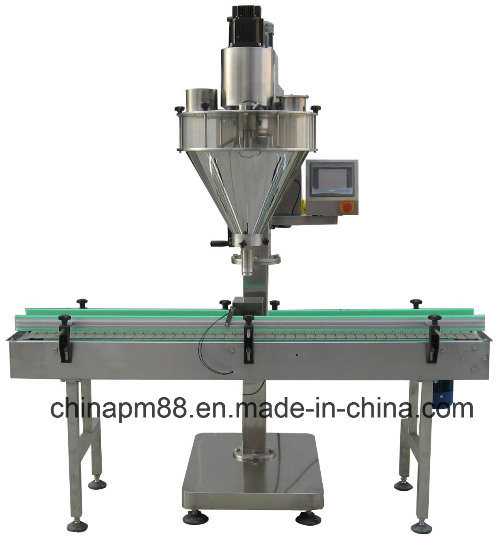

This Machine is a completed economical solution to your filling production line requirements for measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to next step of your other equipment in your line (e.g., capping machine, labeling machine, etc.).it fits more to the good fluidity or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
Features
Lathing auger screw to guarantee the precise filling accuracy
PLC control and touch screen display
Servo motor drives screw to guarantee stable performance
Quick disconnecting hopper could be washed easily without tools
Can be setting to semi-auto filling by pedal switch or auto filling
Full stainless steel 304 material
weight feedback and proportion track to materials, which overcomes difficulties of filling weight changes due to materials' density change.
Save 10 sets of formula inside the machine for later use
Replacing the auger parts, different products ranging from fine powder to granule and different weight can be packed
Model |
|
| Control system | PLC & Touch Screen |
| Hopper | Quick disconnecting hopper 50L |
| Packing Weight | 10-500g |
| Dosing mode | Directly dosing by auger |
| Packing Accuracy | ≤500g, ≤±1%; >500g, ≤±0.5% |
| Filling Speed | 15 - 40 times per min |
| Air supply | 6 kg/cm2 0.05m3/min |
| Power Supply | 3P AC208-415V 50/60Hz |
| Total Power | 1.6 KW |
| Total Weight | 300kg |
| Overall Dimensions | 2000×970×2300mm |
