Fully Automatic Protein Powder Mixing Packing Machine

Quantity:
  • Shanghai, China
  • 1000
  • L/C, T/T, Western Union
  • NFFJ
  • with Automatic Mixer Made of SUS304
  • Single Nozzle Filling or Double Nozzle Filling
  • Automatic Vibration Lift Feeding
  • Electromagnetic Aluminum Foil Seal
  • Vertical/Horizontal Labeling Machine
  • Automatic
  • SYQ
  • Wood Case
  • 5CBM
  • Shanghai
  • 8479909090
  • CE
  • Electric
  • Mixing Filling Sealing Labeling
  • Automatic
  • Protein Powder
  • Customized
This is a fully automatic mixing packing line for dry powder or granule materials.

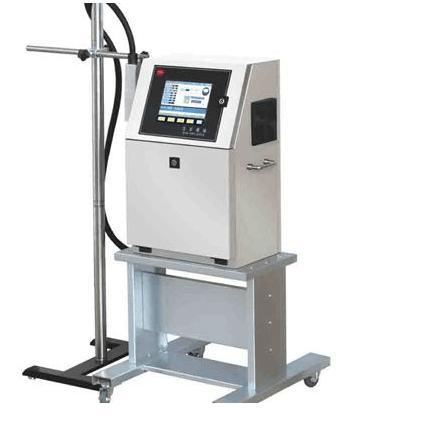

The material will be mixed and then filled into jars or bottles, through electromagnetic aluminum foil sealing machine, automatic capping, and labeling machine, finally print the batch number. The whole working procedure is fully automatic.

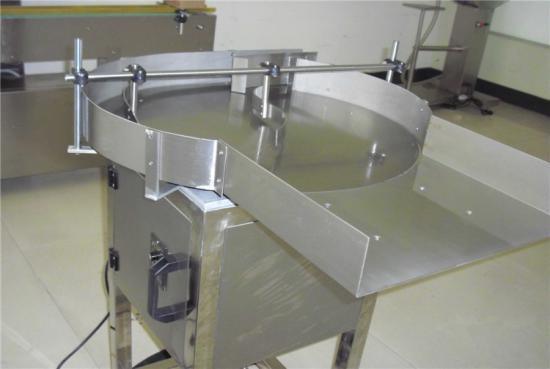

1. Revolving T urntable Bottle 's Feeder

The disorder bottles on the disc are supplied to the converyor of the next procedure orderly through the rotation of the disc, and there is bufferinge function , just for big bottles or jars.
This machine meets the GMP requirements.

Features:

1, It has simple structure and the fountions of tidying bottle and buffering
2, It is made of the 304 stainless steel,,complying the requirement of GMP.

Main technical parameters:
Weight 150kg
Power supply 380V/50Hz
Power 0.75 kw
Diameter of the turn table 600-1200mm
(customize according to the requirements)

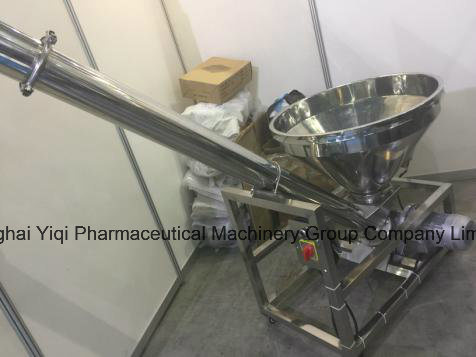

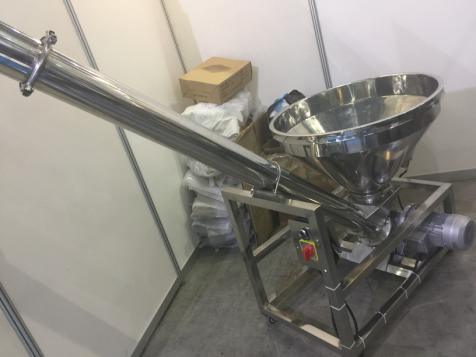

V ibration Lifting feeder

This machine is suitable for automatic feeding or horizontal conveying of powder and powder mixed material

a utomatic control of material feeding level,
Automatic feeding and if there is no material it will automatic stop .
Feed screw quick mounting structure, convenient for quick disassembly and cleaning .
Equipped with a return switch to facilitate cleaning
Vibration feeding for more smooth working.


Main technical parameters:

1. Lifting volume: 2-6 m3/h
2. Container volume: 230 L
3. Lifting height:1.6m/2.2m or customized.
4. Feeding Pipe diameter: 114mm, 159mm, 219mm
5.
6. Power supply: 3 phase 380V/220V,50-60 Hz
7. Power: 1200W
8. G. W: 1 8 0 kg
9. Overall dimensions: 2300×800×2100mm

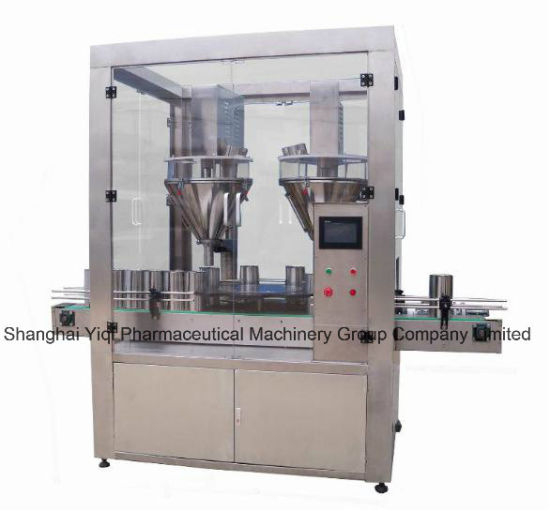

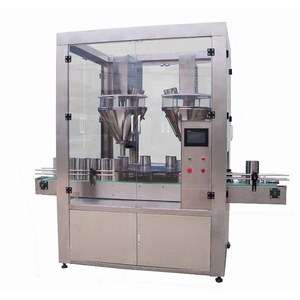

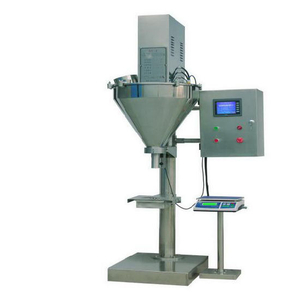

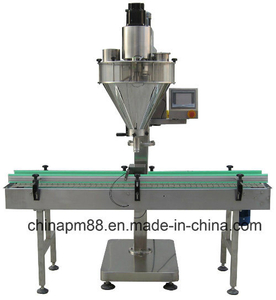

Automatic dosing positioning powder filling machine
F illing with special screw quantitative filling, computer real-time tracking, filling speed, high precision .

1, touch scree n & PLC control system .
2, it could work with automatically bottle feeding system .
3, the whole machine structure, reasonable layout, replacement packaging varieties, clean and convenient .
4, imported servo motor, high speed, large torque, which greatly improves the accuracy of packaging.
5, the use of the principle of weighing filling, packaging weight online display, alarm for nonstandard dosing
  1. high filling standard.

Technical parameters:
Weighing range 200-5000g
Filling accuracy 0.2% (1000 grams)
Packing speed 0-20 / min
Power supply 380/220V 50--60 HZ
Machine power 2KW
Container volume cylindrical container 50--180mm high 50--350mm(could be customized)
Machine dimension 2500 x 1250 x 2300mm
Container volume 50L
G.W 500kg

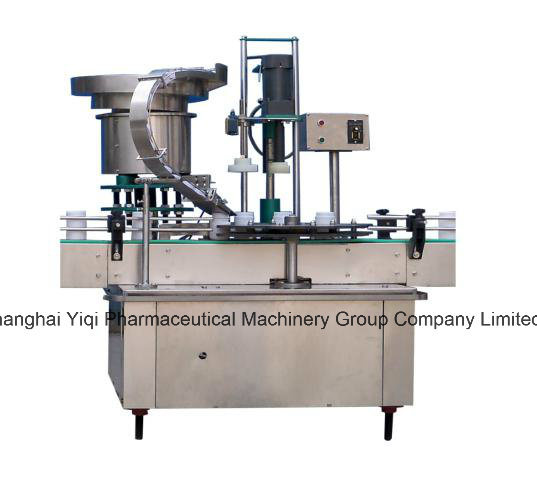

Automatic capping machine
Technical parameters:

Capping heads Single/double
Voltage 220V
Rated Power 1KW
Cap size(mm) 15-120
Bottle height(mm) 50-320
Working speed 10-60
Dimensions(mm) 1500*80*1600
G. W(kg) 300

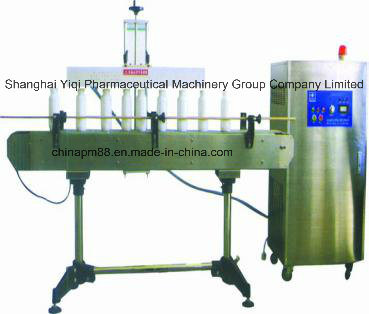

Aluminum foil sealing machine
Model AT-4000
MAX. Power (KW) 4
Sealing diameter φ20-120mm
Sealing speed(pcs/min) 0-250
Dimensions(mm) 600×450×1310
Cooling type Air cooling/tap water cooling
Sealing height of bottles(mm) 400
G. W(kg) 100

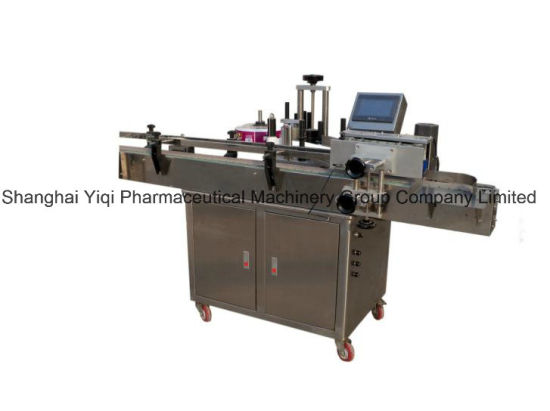

Automatic horizontal labeling machine
Labeling speed (pcs/min) 100-250
Conveying speed(m/min) 0-23 adjustable
Labeling precision(mm) ±1mm
Bottle/jar/can size range(mm) Φ20-Φ80 height over 20mm, could be customized
Inner diameter of label roll Max. Φ300mm
Power 220V/50Hz 200W
Dimensions(mm) 1700*650*1300

Double Cone Mixing Machine, W series
M ain technical parameters:

Model W-200 W-500 W-1000 W-1500 W-2000 W-2500 W-3000
Full volume(m3) 0.2 0.5 1 1.5 2 2.5 3
Working capacity
(kg/batch)
40-80 100-200 200-400 300-500 400-800 500-1000 600-1200
Mixing time(minute) 6-10 6-10 6-10 6-10 6-10 6-10 6-10
Speed(r/m) 12 12 12 12 12 12 7.8
Power(kw) 1.1 2.2 4 4 7.5 7.5 7.5
Overall dimensions
(mm)
1500×650
×1850
1910×800
×1940
2700×1000
×2370
2900×
1000
×2600
3200×1300
×3200
3386×1900
×3560
4450×2200
×3600


The main machine works with perfect auxilary machines.
