Application

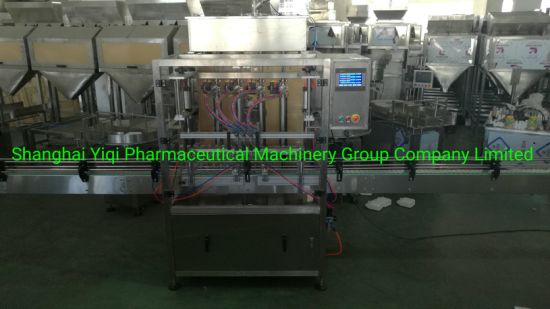

This machine is widely used in food, medicine, chemical, daily chemical, oil, veterinary medicine, pesticide and other industries. It is suitable for filling liquid, viscous liquid, paste and sauce products. Such as cooking oil, honey, tomato sauce, rice wine, seafood sauce, chili sauce, mushroom sauce, peanut butter, lubricants, laundry detergent, hand soap, shampoo, pesticides and other materials. The contact parts with the materials are made of high quality 316L stainless steel, in line with GMP standards.
A special pneumatic three-way valve and a filling valve are used for the granular sauce material, and the material tank is designed with a stirring device to prevent the material from solidifying.
Characteristics
adopts imported servo motor to drive the piston volume barrel to realize metering filling
Three-way filling valve, compact and reasonable design, simple and beautiful appearance
It is simple and convenient to change the specifications and adjust the filling amount directly on the touch screen;
Automatically feeding the bottles, filling, and conveying bottles out, no bottle will not fill.
The filling amount is accurate and has a counting function
PLC & touch screen control
Electrical components are made with international brands, ensuring excellent quality and consistent performance;

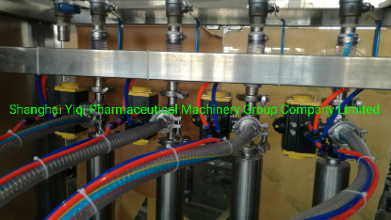

It is equipped with a filling head that prevents dripping and drawing, and ensures no dripping after filling
The submerged filling system is configured to ensure that the filling process does not foam and prevent the filling from overflowing.
Sanitary valve pipe, quick connection, easy to disassemble and install.
Technical Parameters
| Number of filling heads | 4 |
| Dosing range | 50-1000ml or 500-3000ml |
| Filling accuracy | ±1% (>100ml) |
| Production capacity (calculated in 500ml) | 500-1000 bottles / hour |
| Air source pressure | 0.5-0.7mpa |
| Air consumption | 30L/t |
| Total power | 2.0KW |
| Weight | 500 kg |
| Dimensions (length * width * height) | 4000 × 1100 × 2300mm |

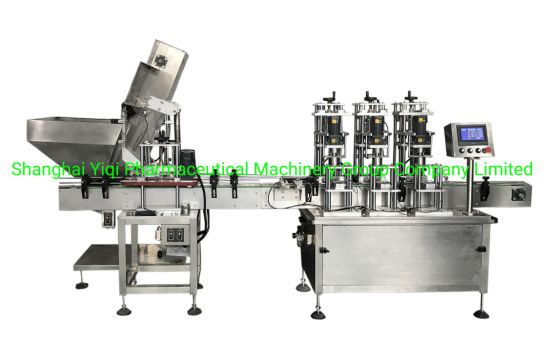

Rotary bottle unscrambler
The machine adopts frequency conversion speed regulation to make the bottle or the jar enter the conveyer belt in sequence under the action of rotary tangential force , and is matched with the packaging production line , thereby achieving the aim of saving labor and improving work efficiency , and the suitable container range could be tinplate cans, glass bottles, plastic bottles , or polyester bottles and etc. The main parts of the machine are made of high - quality SS304 stainless steel and conform to GMP requirements .
Technical parameters:
| Can/jar diameter range | 127mm(could be adjustable by 80mm-130mm) |
| Power supply | 220V 50/60Hz; single phase |
| Power of the machine | 0.75KW |
| Overall dimensions | 1560×1006×1200mm |
| Speed control | Frequency control |
Automatic vacuum capping machine
This machine is suitable for vacuum capping of 3/4 screw tinplate lid in food jar, beverage, condiment, health food and other industries. It is equipped with automatic feeding caps, putting caps on the bottle, and automatic vacuuming & capping. No bottle no cover and automatic alarm for lack of caps.
Main technical parameters:
| Applicable bottle diameter | 30- 85mm |
| Applicable bottle height | 80-250mm |
| Applicable cap | φ38- 55mm |
| Capping speed | 10-30 bottles/min |
| Air source pressure | 0.6~0.8 mpa |
| Air consumption | 100 l/min |
| Power supply | AC380 v, 50 hz |
| Total power | 3.5 kw |
| G. Weight | 700 kg |
| Dimensions | 3500×1000×1900 (length x width x height) mm |

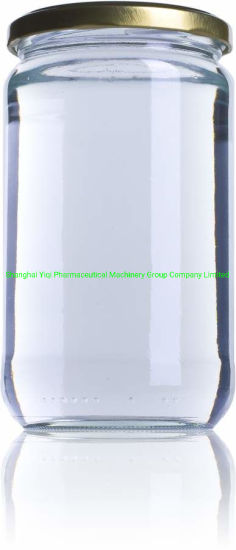

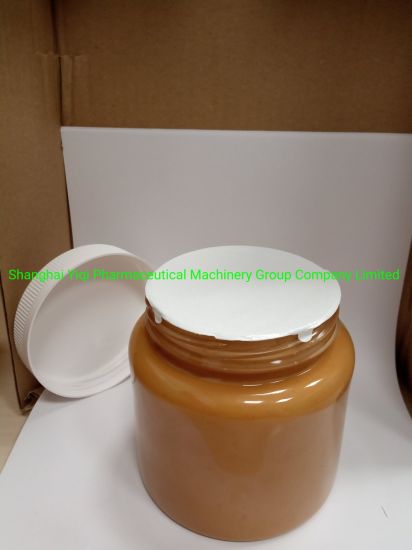

This filling machine could fill plastic bottles or glass jars.
Welcome to check with us for the related other packing machinery. skype: trishatww
Thanks.
