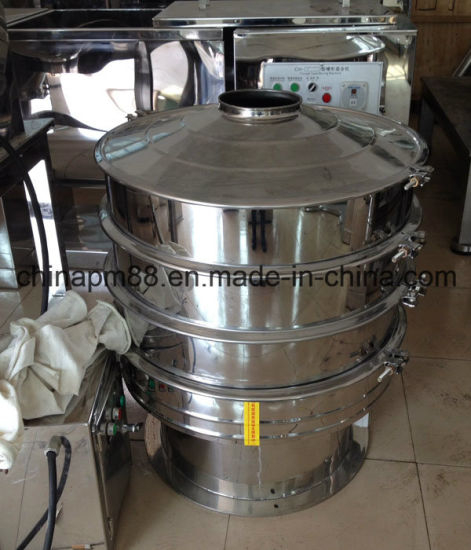

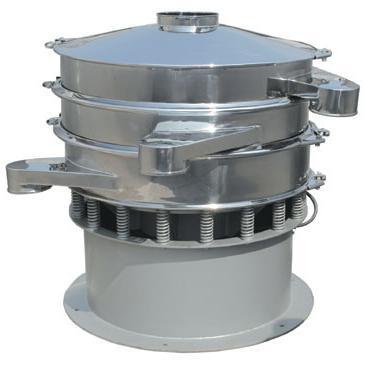

The machine is consists of hopper, vibrating chamber, couple and motor.There are eccentric wheel, rubber software, main shaft and shaft-bearing in the vibration chamber.The adjustable eccentric hammer is driven to the center line through the motor, cause centrifuged force under the state of unbalance and so that the materials from regular eddy.The amplitude of the hammer may be adjusted according to the property of material and the mesh screen.
It is compact in structure, small in volume, tightness dust free, noise-free, high output, low in energy consumption, easy to move and easy to maintain.
It is used for pharmaceutical, chemical, and food manufacturing industry.
We supply a comprehensive range of ancillary equipment to compliment our wide range of machinery products. These include vibro sifter, multi mill, mixers, blenders, tray driers, planetary mixers, and syrup manufacturing plants. We also source for any special purpose equipments that the customers may demand.
| Spec | ZS-350 | ZS-515 |
| Capacity kg | 40-500 | 60-600 |
| Meshes | 12-200 | 12-200 |
| Power kw | 0.55 | 0.55 |
| Speed rpm | 1380 | 1370 |
| Overall dimension | 540× 540× 1060 | 710× 710× 1290 |
| Weight kg | 100 | 180 |
