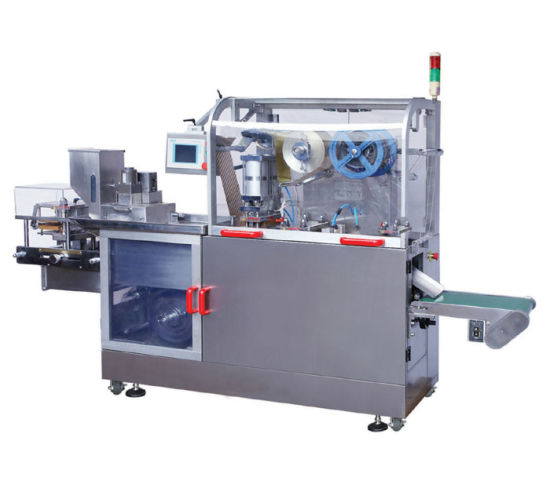

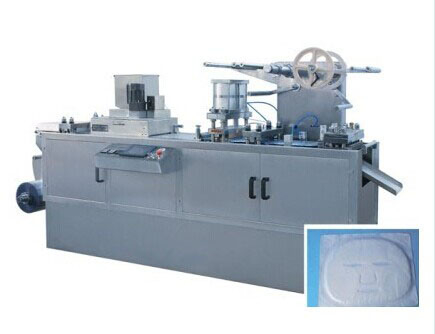

This is an Al-Pl blister packing machine widely used for the industry of pharmaceutical, food and cosmetics saving over USD3000 packing cost for users annually.

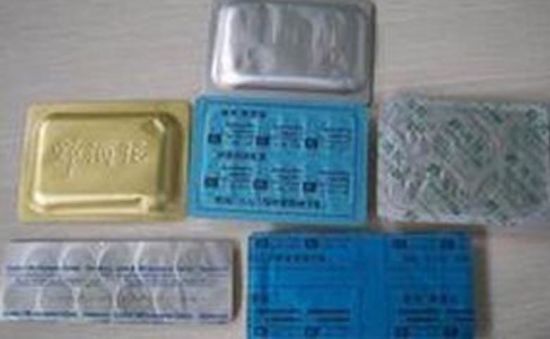

This model could pack: Oral solution liquid, tablets, capsules, ampoule, syringe, vial, milk tablet, pills, candy, and etc.
Features:
1. Worm wheel redactor: Main machine overloading protection with lower noise and stable running.
2. The stroke is adjustable.
3. Blister forming, heat-sealing, lot number printing, avulsion line impressing and cutting all adopted gear mandrel orientation. Each could move freely in the mandrel when turns the hand wheel and that could be adjusted and orientated with the help of gauge.
4. Positive pressure forming matched with mechanical punch ensures well blister forming, and could be collocated with special automatic feeder to fit for certain packing like ampoule, vial, syringe, big honey pill, medical appliance or other special shape packing purpose.
5. No waste material cutting station. The packing material could be saved.
6. Double orientation shafts with spline shaft transmission adopted. This is to ensure the synchronization stable running.
7. Touch screen operation with PLC: Convenient operation, stable running, and easy maintenance.
| Cutting Frequency (Times/min) | 6-50 |
| Production Capacity (pcs/h) | 40000-290000 |
| Max Shaping Areas and Depth (mm) | 310×150×26 (Standard 310×150×14) |
| Travel Range (mm) | 40-160(can be lengthened to 200mm according to the user's requirements) |
| Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) |
| Air Pressure (Mpa) | 0.4-0.6 |
| Air Supply | ≥0.3m3/min |
| Total Power | 380V/220V 50Hz 6.2kw |
| Main Motor Power (kw) | 1.5 |
| PVC Rigid Sheet (mm) | 0.15-0.5×320 |
| PTP Aluminum Foil (mm) | 0.02-0.035×320 |
| Dialysis Paper (mm) | 50-100g×320 |
| Mould Cooling | Tap Water or Circulating Water |
| Overall Dimensions (mm) | 3300×775×1600(L×W×H) |
| Weight (kg) | 2000 |
