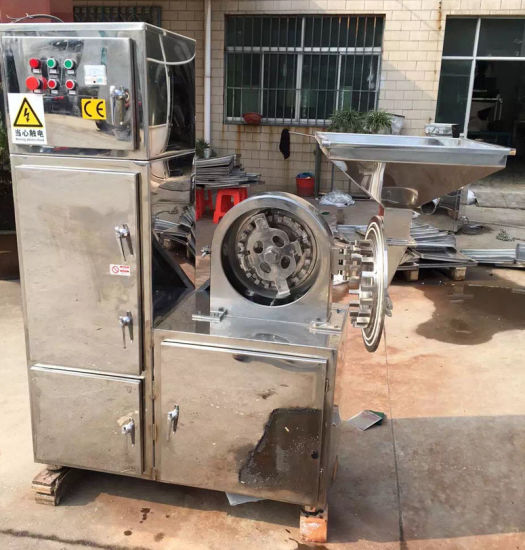

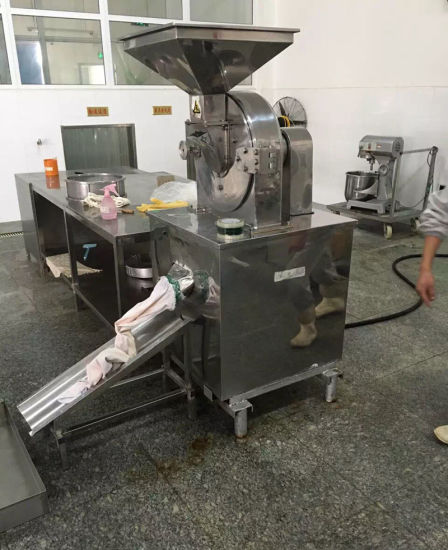

The machine is applied for pharmaceutical, chemical and foodstuff etc as pulverizing machinery, before fine crushing process in equipment, it is not affected by material viscosity, hardness, softness and fiber etc, can have better crushing effect for any material.

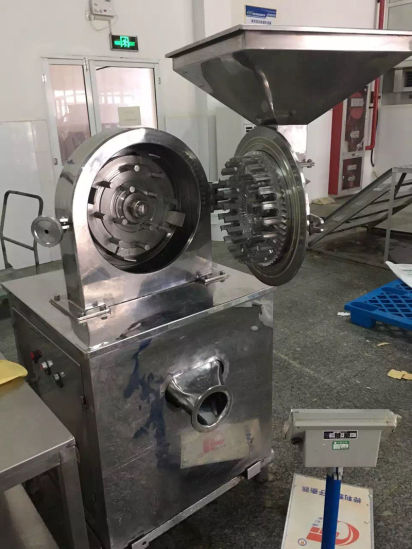

Working principle: The mill for the vertical structure, material by pulverizer into fed into the crushing chamber, rotating impact of rotating knives, shear and crushed by the fixed knife knife and activities at the same time, under the effect of rotating centrifugal force, the material flows to the exit automatically. According to the "GMP" standard design, the whole machine all adopt the stainless steel material manufacturing, make drugs, food, etc can conform to the requirements of the national health.
Technical parameters of WFCJ rough grinding machine:
|Production capacity ||100-500 kg/h ||spindle speed ||960-2800 r/min |
|Feed particle size ||100 mm or less ||motor ||5.5 KW |
|The grain-size ||0.5-20 mm ||work noise ||< 70 decibel |
