The uncut raw material is fed by a transport chain from the backward material plate. When going forward an upper chain covers the cutting material.
Then the highly compressed material comes out by steps, and finally the hanging out material is cut off by an up and down moving system of knives.
This machinery could be sued in the food industry, pharmaceutical industry, and agricutral industry as a perfect cutting machinery to cut vegetables, herbs, food, and tobacco etc.
Application: This herb cutting machine is used for cutting kinds of herb materials, such as herb medicine ,tobacco leaves,shisha /hookah tobacco, licorice roots, spice, leaves and grasses etc. | Main Technical Parameters |
| Capacity | 50-800kg/h |
| Cutting size | 0.5-25 mm(adjustable) |
| motor | Y112M-6 |
| Power | 2.2kw / 380v / 3 Phase / 50Hz |
| Converter | 3.7Kw |
| Cuts amount | 357 times/min |
| Rotary Speed | 940 r/min |
| Transmission chain width | 200 mm |
| Size | 1750 x 750 x 980 mm |
| Net Weight | 420-450 Kg |
Working Features. - The blades move from up to down by mechanical driver

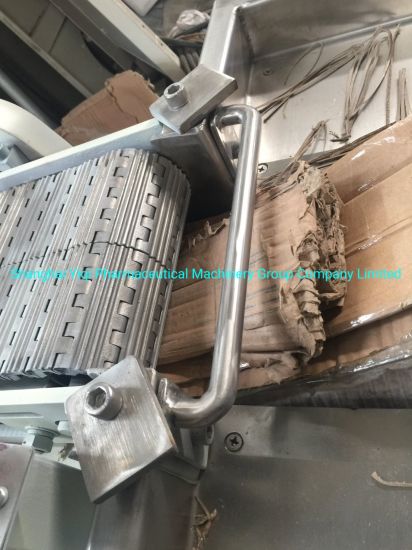

- Using stainless steel convey chain to transport herbal materials to the knife and get fine slices.

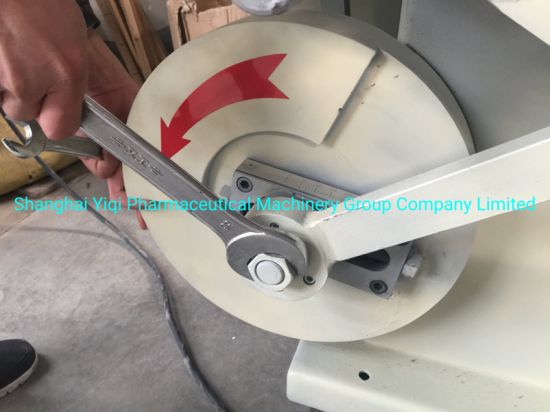

- The design of machine is very scientific, the five-star pulley (clutch) was milled cut through computer, owns high precision & rational structure.
- The machine is made of stainless steel 304, including the convey chain, it's very strong & durable, hard to slip & low noise, easy to clean.
- Meet the requirements of CE & GMP

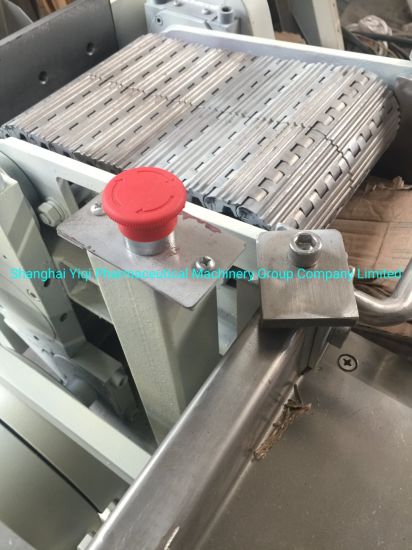

- The upgraded machine is equipped with a emergency stop button for safety use. And an advanced type controller for stable and durable working life.
