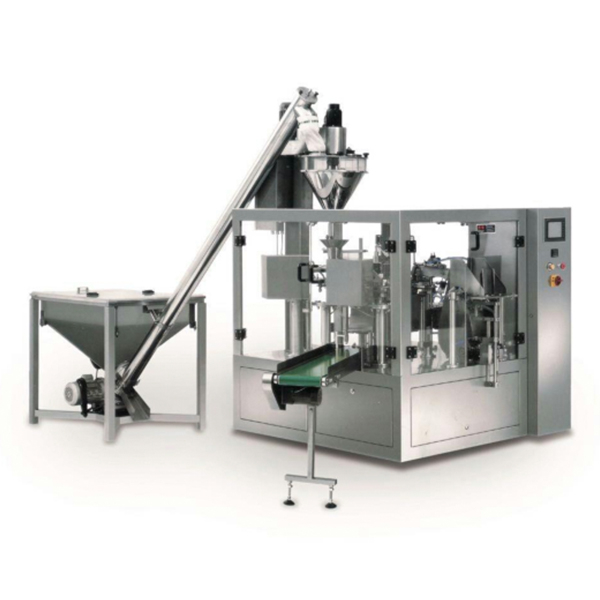

Automatic Rotary Pouch Packaging Machine

This system is designed for pre-made bags, which is a fully automatic bag packing machine with automatic vacuum feeder and auger weighing and filling dispenser system.
It is good for powder materials such as condiment powder, glucose, milk powder, coffee and additives.

Quantity:


This system is designed for pre-made bags, which is a fully automatic bag packing machine with automatic vacuum feeder and auger weighing and filling dispenser system.

It is good for powder materials such as condiment powder, glucose, milk powder, coffee and additives.



This system is PLC controlled and with automatic adjustment bag width device, fully automatic zipper opening device, vacuum feeder, vertical auger powder dispensing system, automatic material hoist, and discharging conveyor.



work process:

1. no bag feeding from upside, sending to the bag holder (with no bag alarm function)

2. Print the date of manufacture. (ribbon detection, ribbon out of shutdown alarm, touch screen display)

3. zip opening. (Open bag detecting, without bag there will be no filling)

4. filling (detection: no filling no sealing)

5. Vibration (to prevent the material from being filled too full and the sealing is not smooth)

6. Vibration (tapping)

7. Heat seal. (heat sealing by high temperature)

8. Shape the output. (plastic sealing to ensure the beauty of the seal)


Advantages:

1.Reduce production costs and management costs.

2.Improve product quality: the product meets the uniform standard in appearance and packaging quality

3.Reduce the defective rate, the finished product rate is over 99.5%, avoiding the waste of manual packaging

4.Improve hygiene standards: the packaging process has no direct contact with people, avoiding pollution



Main performance and characteristics:

1.Wide range of packaging: Suitable for various conditions and properties of seasoning powder

2.Convenient operation: PLC control, man-machine interface operating system, making operation intuitive and convenient

3.Easy adjustment: It is convenient to   adjust various specifications by hand-integrated bag width adjustment device.

4.Suitable for different types of bags

5.perfect prevention system to ensure the yield, no waste of bags and materials

6.The machine packaging part is made of stainless steel to ensure the hygiene and safety of materials, in line with GMP standards.

7.High degree of automation: unmanned in the whole process of measurement and packaging, automatic failure alarm

8.Parts are imported engineering   plastics, no need to refuel, reduce pollution of materials

9.Oil-free vacuum pump to avoid   pollution of production environment

10.Waterproof design can be washed with water to reduce the difficulty of cleaning and improve the service life of the machine.




Technical Parameters:

Bag type

doypack pouch/bags, tote bag, zipper bag,   four-side sealing bag, three-side sealing bag, paper bag, etc.

Packaging material

BOPP. CPP. PTT and other heat sealing   film

Packaging material thickness

5-12 C

Packaging range

Width; 100~280mm Length: 100~330mm

Filling range

5~1500g

Packing speed

25-60 packs/min (packing speed is   determined by different packaging bags, material form and filling method)

Packaging accuracy

Deviation ≥ ± 1%

Total power

2.3kw

Compressed air consumption

≥0.4m3/min
