Automatic Capsule Filling and Sealing Machine for Hard Capsules

Availability:
Quantity:


1. Automatic Powder Pellet Liquid Capsule Filling Machine GMP standard

Advantage:
This machine is a hard capsule filling machine with intermittent liquid injection pump control system. It meets GMP requirements with advantages like compact structure, small size, low noise, accurate filling dosage, complete functions and smooth operation. It is fully automatic for capsule feeding, separating, filling, rejection, locking, and finished product discharging, which is designed for batch production, saves the investment of financial resources and manpower, and is an ideal hard capsule liquid filling machine for the manufacturing of pharmaceuticals and health care products.

2. Automatic Sealing Machine for Hard capsules

Application:

This equipment is designed for sealing all kinds of hard capsules filled with powder, granules, liquid, oil, small capsules, or pellets etc.

The hard capsule sealing machine is a new sealing device for hard capsules.

The equipment could be used to seal hard capsules filled with liquid, particles, powder, pallets, tablets, or even small capsules with materials etc.

The finished sealed products are kept in a sealed state during packaging, storage, and transportation. Which can effectively prevent the volatile of drug, increase the shelf life of drugs, so as to improve the stability of capsules in quality, sealing, and anti-counterfeiting of pharmaceutical enterprises and health care products. Meanwhile, it shows the quality of drug products through sealing packaging.




Main features:
It has been improved the inner design turret, and beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
The working station cam runs under the good lubricating condition, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
Single movement for both upper and lower segments with two-lip seal provide a much better sealing performance.
It is controlled by the computer, has a stepless timing with the frequency-conversion, the number showing makes an easy operation and clear appearance.
It has a protector equipment for the operator and the machine. It has an automatic pause equipment when it is lack for the material It has a steady and safe working, it is the best choice for the hard capsule made factories.

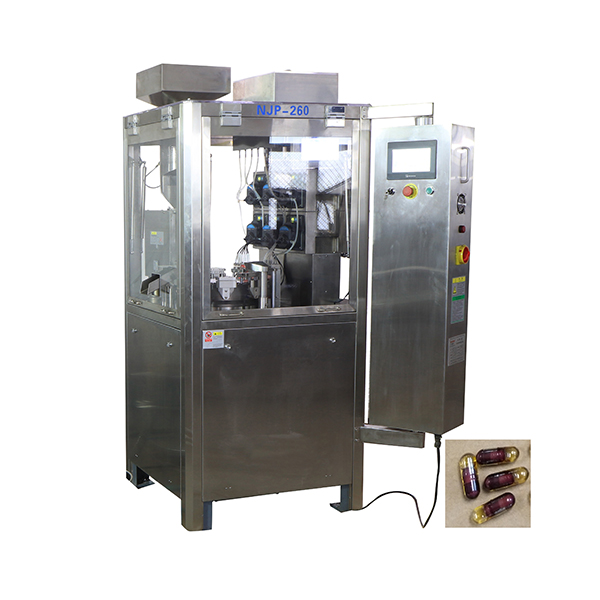

Technical Parameter:

Model

NJP-260

Capacity

15600capsules/hour

Capsule sizes

A-E capsule   size00"-5" and safety capsule A-E

Total power

5.75kw

Water supply

500L/h,   0.2-0.10 Mpa

Dust collector

160m³/h

Overall   Dimensions

1130x1280x2060mm

Weight

2400kg


Technical parameters of the hard capsule sealing machine :

Items

Model

Model

Model

NJF-600C

NJF-1000C

Working capacity

36000/h

60000/h

Filling materials

Pellets, powder, granules, liquid

Pellets, powder, granules, liquid

Die number

6 holes

6 holes

Capsule type

00#, 0#, 1#, 2#, 3#, 4#

gelatin capsules,

methylcellulose capsules,

vegetable capsules

00#, 0#, 1#, 2#, 3#, 4#

gelatin capsules,

methylcellulose capsules,

vegetable capsules

Power supply

380V, 50Hz, 3P (or customized)

380V, 50Hz, 3P (or customized)

Total power

(kw)

4

4

Compressed air consumption (Mpa)

0.6

0.6

G. W(kg)

1200

1200

Environmental requirements

Room temperature 20DC

humidity 40-55%

Room temperature 20DC

humidity 40-55%

Overall dimensions(mm)

2800*900*1900

2800*900*1900
