Infant Milk Formula Filling Packing Line

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
30000/Year
Payment Terms:
L/C, T/T, Western Union
Model NO.:
AT-FT
Filling Principle:
Atmospheric Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bag
Packaging Material:
Plastic
Capacity:
5kg
Trademark:
yiqi
Transport Package:
Wooden Case
Specification:
5cbm
Origin:
Shanghai
HS Code:
84303090
Type:
Weighing-type Filling Machine
Automatic Grade:
Semi-Automatic
Material Type:
Powder
Filling Valve Head:
Single-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Plunger

Product Description

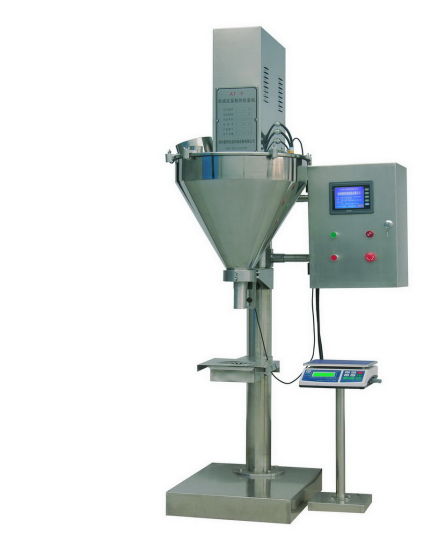

Automatic weighing filling machine

Technical parameters:

Dosing range(g)	1-5000g (for different packing need to change some parts)
Precision	+_ 1%
Packing speed	1500-4500/h
Overall dimensions(mm)	690×1060×2000
Power	AC380 50HZ·1500W

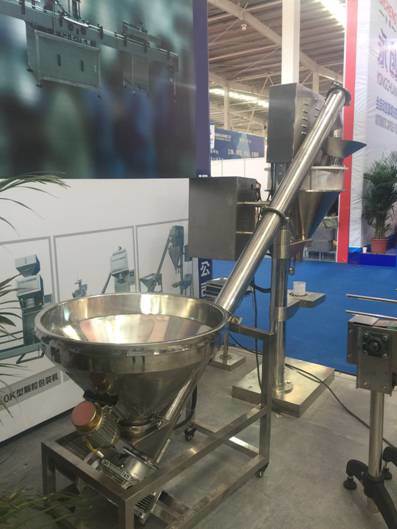

Screw feeding machine for the filling weighing machine

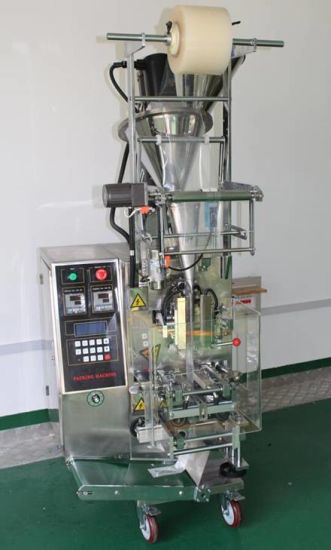

Automatic sachet packing machine for powders with 4 welds

Main technical parameters:

Model	DCF-300-2
Dosing range	0-100g
Dosing method	Spiral weighing
Pack bag dimension(mm)	Length 20-150mm Width: 10-150mm
Packing speed	40-60/min
Power supply	220V/380V
Power	1600W
Overall dimensions(mm)	9307301880
Weight(kg)	280

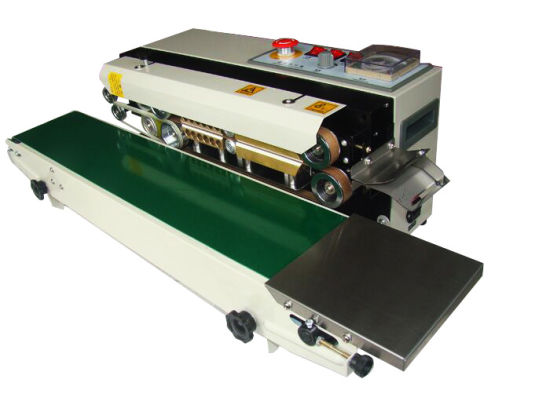

Continuous Sealing machine for milk bags

Technical parameters:

Power	220V 50Hz 520W
Sealing width	5-14mm adjustable
Sealing materials	Thickness 0.03-0.80mm
Sealing length	All
Capacity for Sealing bags	Max. 55bags/min (100mm)
Sealing speed	0-12m/min
Conveyor belt size	775×140mm
Temperature control type	Thermocouple type precise temperature control
Temperature range	Max. 300degree centigrade cooling: air cooling
Overall dimensions	810×370×310mm
Printing capcity	≤39 (font 4 )
Weight	17.5kg
