Fully Automatic Packing Machine for Protein Powder, Infant Milk Powder, Adult Milk Powder

Quantity:


Inquire

Min. Order: 1 Set
Port: Shanghai, China
Production Capacity: 200
Payment Terms: L/C, T/T
Model NO.: AT-FCZ-ST
Material Type: Powder
Packaging: Cans
Packaging Material: Plastic
Speed: Speed(Can, Jar: 30-40/Min)
Air Pressure: 0.2m3/Min
Dimensions(mm): 3330×1400×2400
G. Weight: 1000kg
Trademark: SYQ
Transport Package: Wooden Case
Specification: single filling or double filling
Origin: Shanghai
HS Code: 8433909090
Automatic Grade: Automatic
Application: Dairy Products, Rice, Flour, Seasoning
Type: Powder Dispenser
Forming Species: Filling Into Cans, Bottles, Tins
Forming Function: Filling
Driven Type: Electric

Product Description

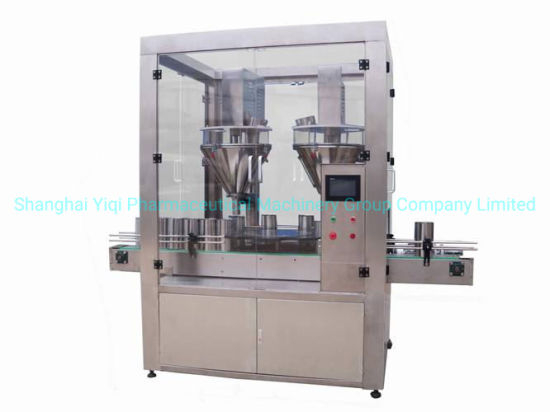

Fully automatic packing machine for protein powder, infant milk powder, adult milk powder
High precision rotated double head filling weighing machine

This machine is suitable for filling for cans, jars, or citations of every kind of powder, ultra-fine powder, or in a granular form. For example, milk powder, rice powder, protein powder, cocoa powder, powdered drugs, chicken powder, chicken essence, additives, sugar, dyes, spices, etc.

Features:

1, the whole machine is made of stainless steel, GMP standard.
2, Chinese and English LCD touch screen, simple operation, packaging weight can be adjusted at any time, the working state can also be changed at any time.
3. Servo motor is used for filling, which has the advantages of high precision, fast speed, large torque, adjustable speed and good stability.
4. Taiwan high-quality deceleration motor is adopted for mixing: low noise and long service life.
5. Online weighing feedback, automatic secondary filling according to the
specific gravity of materials, ensuring high precision and high speed online filling.
6, fully sealed air resistance glass stainless steel, easy to observe the
working state, dust does not leak and fly, filling exit with dust absorption
device, protect the workshop environment is clean.
7, side open door hopper, easy to clean without dead Angle, easy to replace the screw accessories.

Technical parameters

Form of measurement	Double station weighing & filling
Container size(mm)	φ50-180mm H: 50-350mm
Weighing range(g)	100-2000g(by changing parts)
Weighing precision(g)	±(0.5-2)
Speed(can, jar/min)	30-40
Power(kw)	3P,380V(or customized single phase 220V)power:3.5KW
Air pressure/consumption	6--8kg/cm2 ,0.2m3/min
G.W (kg)	1000
Overall dimensions(mm)	3330×1400×2400
Hopper volume (L)	50
