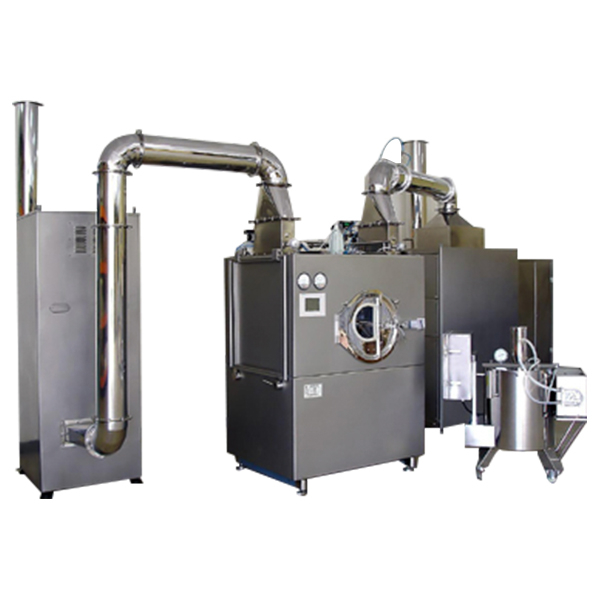

High Efficient Intelligent Coating Machine, BG SERIES

The machine is applied for coating the organic film, water soluble film and sugar. Put the tablet or pellet into the porous coating pan, the tablet or pellet unceasingly moves in the clean and hermetic rotating coating pan.

Quantity:


Features:

The machine is applied for coating the organic film, water soluble film and sugar. Put the tablet or pellet into the porous coating pan, the tablet or pellet unceasingly moves in the clean and hermetic rotating coating pan. In the movements, with the requests of reasonable process parameters, coating agent is automatically sprayed, at the same time, heat air is supplied under a negative pressure, which is vented out through the tablet or pellet layer from the bottom of the coating agent sprinkled on the tablet or pellet surface gets dried promptly and equally with forming a solid and smooth surface film.


Features:

1. As required by the standard of GMP, the quantitative index instruction operation is applied as possible as it could in the medication production process.

2. Under the streamline diversion plate blender’s effect, the prime pistil overturns fluently, exchanges frequently and excludes the collision phenomenon when the prime pistil falls from high, settles the fragment and knocked edge and enhances finished product ratio. Surface of the diversion plate is narrow and small with excluding adherence of dressing to its surface, saving the dressing and improving medication quality.

3. The peristaltic pump

With constant variable precludes return pope. The return radius of the panvaries any time with pressure change, output and pulp spraying quantity automatically balance, which stabilize the atomization effect, simplify the atomization system, prevent spray gun clogging and save dressing, what’s more, it is simple to clean and without any dead corner.

4. The spray guns are especially designed and manufactured for the coating machine, and the atomization is equal, the spraying is large and the universal adjustable nozzle is independent from loading volume.

5. Possess negative pressure display and control inside the coating boiler.

6. Possess supplied hot air’s speed display and control

7. Possess spray gun anti-clogging function.

8. The above functions enables related technical parameters to realized quantitative display and control, the SOP operation method formulation turns feasible and uses quantitative index instruction for the operation, consistency of medication quality in every lot is guaranteed with totally in line with the GMP requirements.

9.This equipment has awarded the appraisal by provincial science and technology inspection department.




Item

BG-40

BG-80

BG-150

Max Working Capacity

40kg/batch

80kg/batch

150kg/batch

Coating Pan diameter

φ820mm

φ950mm

φ1200mm

Feed space diameter

φ340mm

φ380mm

φ480mm

Rotatuon speed of coating rattler(rpm)

3~22r.p.m

3~22r.p.m

3~16r.p.m

Motor power of main machine

1.1KW

1.5KW

2.2KW

Motor power of exhaust machine

2.2KW

3KW

5.5KW

Flow rate of gas exhaust machine

3517m3/h

268m3/h

7419m3/h

Motor power of heating dyer machine

0.25KW

0.75KW

1.1KW

Flow rate of gas heating dyer machine

950m3/h

1950m3/h

2500m3/h

Shirring barrel Volume

30L

50L

65L

Heat with steam main power

Three five line system

Three-phase five line system

Three-phase five line system

Main power of electric heating power   supply

Three-phase five line system

Three-phase five line system

Three-phase five line system

Cleaned air of pressure/air consumption

≥0.6Mpa/0.5M3/min

≥0.6Mpa/0.9M3/min

≥0.6Mpa/1.2M3/min
