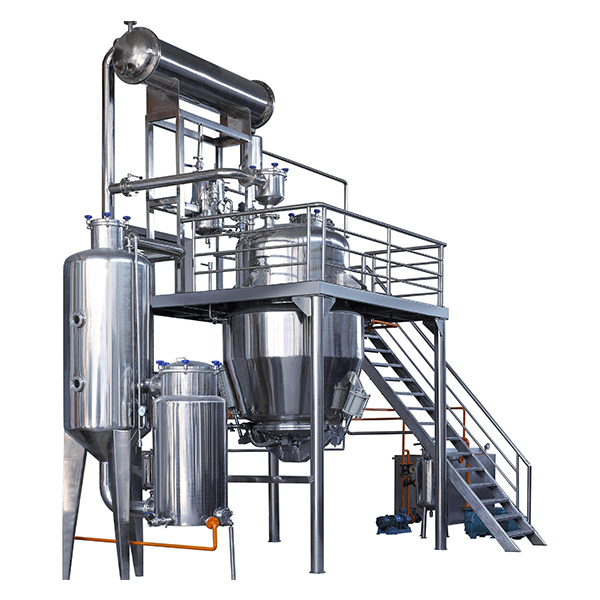

Technical Parameters of the Extraction System

This set of equipment includes: main tank, de-foaming device, condenser, cooler, separator, filter and internal connection pipe, etc.
Availability:
Quantity:


Features:

1. This set of equipment includes: main tank, de-foaming device, condenser, cooler, separator, filter and internal connection pipe, etc.

2. the extraction tank is conical, four ears hanging support, head with sanitary quick open feed inlet, liquid inlet, cleaning port, thermometer with mouth, mouth, mouth function has two times the steam outlet and a plurality of various applications, configuration of steam inlet and outlet side of the tank, the bottom outlet for the movable fluid valve two, one for discharging, one for anti blocking material through the steam inlet and outlet connected with a three-way valve with stainless steel hose connection.

3. slag door pneumatic quick open slag door, equipped with two cylinder, and with a safety interlock device, is arranged in the mat shape net filter screen by the solar disc and plate cushion, prevent deformation, filter mesh 80-100 mesh, can according to the requirements for configuration, slag door beam mining iron spray anti rust paint structure.

4. extraction tank, atmospheric pressure, jacket design pressure is 0.3MPa, jacket design temperature is 143 degrees, cylinder working pressure is 0.7MPa.

5. extraction tank material is 304, using jacketed steam heating form, jacket built-in reinforcement ring, outer foreskin stainless steel welding, using anti-aging pearl cotton or high temperature polyurethane foam insulation, insulation layer thickness 50mm.

6. container polishing: inner wall mirror polishing <0.6um, outer surface upper and lower head mirror or intermediate cylinder grinding matte treatment

7. random accessories: sanitary grade 360 degree self rotating cleaning ball, pressure gauge 0-0.6, thermometer 0-150 centigrade.





Tank volume(M3)

0.5

1.0

2.0

3.0

5.0

6.0

Jacket pressure(Mpa)

0.2-0.3

Work pressure(Mpa)

Normal pressure

Condensing area(M2)

3

4

5

8

8

10

Cooling area(M2)

0.5

0.5

1

1

1.5

1.5

Steam consumption(kg/h)

165

285

346

570

660

718

Cooling water(T/h)

3

4

5

8

8

10

Outlet diameter(mm)

400

800

800

1000

1000

1200
