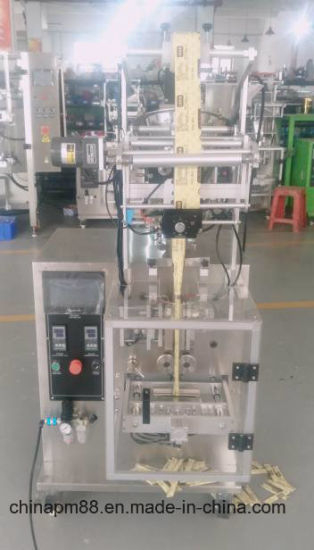

Pneumatic Back Seal Powder Packaging Machine

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
10000/Y
Payment Terms:
L/C, T/T, Western Union
Model NO.:
240F
Material Type:
Powder
Packaging:
Cartons
Packaging Material:
Composite Materials
Capacity:
50PCS/Min
Trademark:
SYQ
Transport Package:
Polywood Case
Specification:
1CBM
Origin:
Shanghai
HS Code:
8479899090
Automatic Grade:
Automatic
Application:
Cosmetics, Drinks, Skin Care Products, Dairy Products, Rice, Flour, Seasoning, Protein Powder
Type:
Filling and Sealing Machine
Forming Species:
Bag Moulding
Forming Function:
Forming, Filling, Seal
Driven Type:
Pneumatic

Product Description

Application:
The machine is suitable for medicine, cosmetic, food, pesticides and special industries and other products, such as food additives, desiccant, milk powder and various powder.

Main performance and characteristics
1, in the packaging process can be automatically completed filling, measuring, bagging, sealing, cutting, hot pressing, batch number and all the work, photoelectric with the standard position without adjustment.
2, intelligent control system, Chinese and English LCD display. Simply set the parameters to precisely control the operation of the system.
3, heat sealing device on the bag evenly heated control, the upper and lower sides can be individually thermostat.
4, the replacement tool can be realized in a zigzag, pattern cut off, a zigzag with cut off, cut bag is stable and reliable card bag, simple operation, can be configured wheeled coding machine, row batch number, shelf life.

Technical parameters:

Model	240F
Dose range(gr)	1 ~ 50
Measurement(mm)	Bag size: 20 ~ 150 bag width 15 ~ 110
Packing speed(bags / min)	25-50
Control system	PLC control system
Power supply	AC220V / 50Hz
Power	1.5KW
Weight	200KG
Dimensions(mm)	L600 * W760 * H1530
