Automatic Powder Packaging Machine for Health Products

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
2000/Y
Payment Terms:
L/C, T/T
Model NO.:
DF-240
Customized:
Customized
Condition:
New
Warranty:
1 Year
Weight:
200kg
Packaging for:
Dry Powder or Granules
Trademark:
syq
Transport Package:
Wooden Case
Specification:
600 * 760 * 1530
Origin:
Shanghai
HS Code:
8422303090
Type:
Pharmaceutical Packaging Machinery
Finished Dosage Form:
Powder or Granules
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Computerized

Product Description

Product Description:

Back seal packing machine for powder.

intelligent automatic control system, it adopts silent stepped motor to make the production environment more quiet in line with environmental requirements.

Application
The machine is suitable for pharmaceutical, cosmetics, food, pesticides and special industries and other products, such as food additives, desiccant, milk powder and various powders.

Main performance and characteristics
1, in the packaging process can be automatically completed filling, measuring, bagging, sealing, cutting, hot pressing, batch number coding and all the work, photoelectric with the standard position without adjustment.

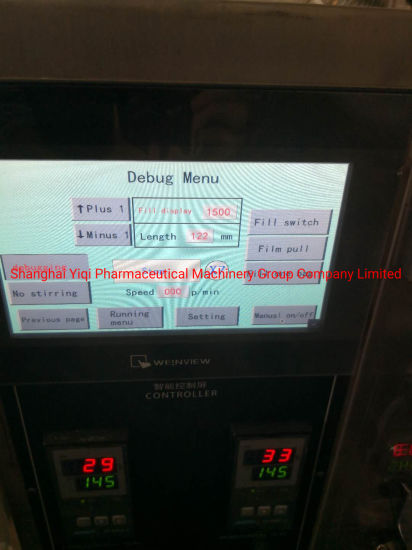

2, intelligent control system, Chinese and English LCD display. Simply set the parameters to precisely control the operation of the system.
3, heat sealing device on the bag evenly heated control, the upper and lower sides can be individually thermostat.
4, the replacement tool can be realized in a zigzag, pattern cut off, a zigzag with cut off, cut bag is stable and reliable card bag, simple operation, can be configured wheeled coding machine, row batch number, shelf life.

Technical Parameters:

Model	240F
Packing form	Back seal
Dosing range	1-50gr
Bag size(mm)	20 ~ 150mm; bag width 15 ~ 110mm
Packing speed	25-50 bags / min
Control system	PLC
Power supply	AC220V / 50Hz
Power	1.5KW
Weight	200KG
Dimensions(mm)	600 * 760 * 1530
