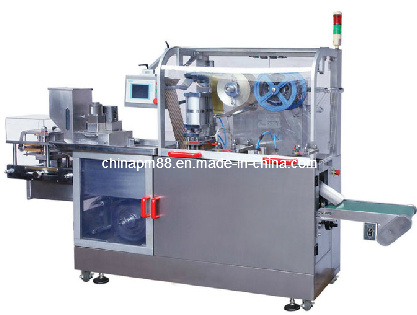

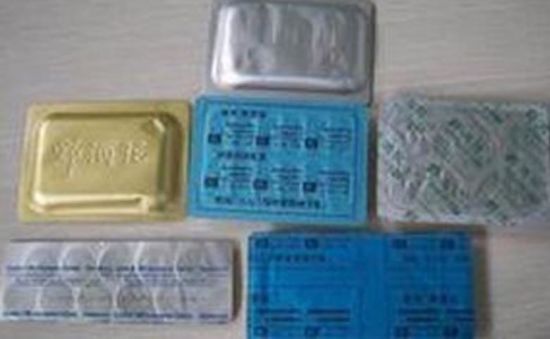

PLC and HMI controlled. It is suiatble for packing tablets, sugar-coated tablets, capsules as well as small food, hardware and electronic components with plastic - aluminum or alu-alu packaging.
It combines ten functions to a whole such as web cutting, aluminum/plastic feeding, blister forming, filling, aluminum foil printing, aluminum/plastic heat-sealing, bach number printing, cross-hatching creasing, sheet cutting, counting etc. It's unnecessary to be operated by manual during production, the packed products have fine sealing, safe and hygienic. The performance and price of machine is better than the similar products abroad.
It is a most welcomed product specially designed for dosage room of hospital, medium and small sized pharmaceutical plants, and health- care product plants. With small size, easy operation, all purpose, adjustable stroke and long durability, it wins a growing popularity worldwide.
1. With inductive self-checking mechanism, it eliminates the waste plate of lacking particles. The qualified production rate reaches 100%.
2. Main transmission is adopted with imported gear reducer with long life and low noise.
3. Adjustable stroke, plate dimensions can be changed freely, suitable for multiple kinds of specifications.
4. Flat-plate structure, suitable for different size and any shape packing such as circular, ellipse, square, triangle, or irregular shape and etc.
1. Cursor tracing registration.
2. Optical fiber or photography detection device. Can you please check the following specifications, or please let us know further about your requirements:
1.) blister design.
2.) tablet/ capsule sizes.
3. ) packing materials: pvc-alu or alu-alu
4. required packing speed.
5.) do you need to link the blister packing machine with carton machine?
6.) other requirements.

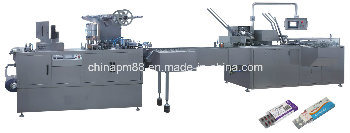

we also provide canoning line for different packing demands:
|Model ||DPB-140B |
|Cutting frequency(times/min) ||Alu-Alu: 6-25 |
|Capacity(pcs/h) ||Alu-Alu: ≤45000 |
|Max. forming area (mm) ||130×130(could be customized) |
|Max.forming depth(mm) ||14 |
|Travel range(mm) ||40-140 |
|Standard Plate(mm) ||80× 57(could be customized) |
|Air pressure(Mpa) ||0.4-0.6 |
|Air supply ||≥0.2M3/min |
|Main motor power(kw) ||0.75 |
|Power supply ||380/220V, 50Hz, 3.5kw |
|PVC rigid sheet(mm) ||0.25-0.5 ×140 |
|PTP Aluminum Foil(mm) ||0.02-0.035×140 |
|Dialysis paper(mm) ||50-100g×140 |
|Mould Cooling ||Tap water or circulation water |
|Overall dimension(mm) ||2300×560×1410(L×W×H) |
|G.W ||800kg |
