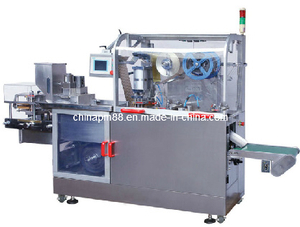

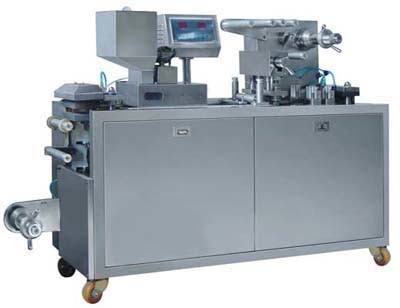

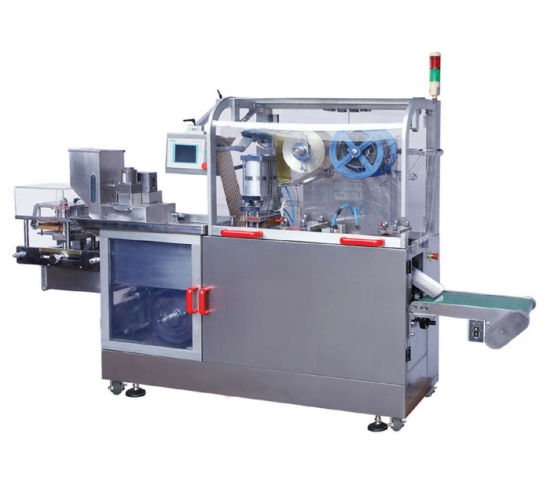

This product is a medicines packing machine designed by our factory. PLC controlled and GMP standard. The newest blister packing machine is an ideal equipment widely used in small pharmaceutical factory, preparation room in the hospital, an institute laboratory in the pharmaceutical factory and health material factor. This machine is applied to Al-Pl, hard Al- aluminum blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares etc.
Production capacity 30-60thousand PCS/h
Standard printing block Step frequency filling-carrying
30-40times/min an edition/time
Packing material PVC hard sheet with width 88 and thickness 0.2 -0.02mm
Aggregate capacity of power supply 1.8kw 220V lighting electricity
Overall size(L X W X H) 900X460X 890mm, reversing wheel is installed to push
| Cutting Frequency (Times/min) | Al-Al: 6-20 times/min Al-plastic: 20-40 times/min |
| Max. Production Capacity (Blister/h) | Al-Al: 1200 (According to standard plate 80×57) Al-plastic: 2400 (According to standard plate 80×57) |
| Max. Forming Area and Depth (mm) | Al-Al: 80×100×14 Al-plastic: 80×100×26 (Standard 70×90×14) |
| TravelRange(mm) | 20-100 (Can be manufactured as user's requirements) |
| Air Pressure (Mpa) | 0.4-0.6 |
| Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) |
| Total Power | 380V/220V 50Hz 1.8kw |
| Main Motor Power (kw) | 0.75 |
| PVC Rigid Sheet (mm) | 0.15-0.5×80 |
| PTP Aluminum Foil (mm) | 0.02-0.035×80 |
| Dialysis Paper (mm) | 50-100g×80 |
| Mould Cooling | Tap Water or Circulating Water |
| Overall Dimensions (mm) | 1400×460×950(L×W×H) |
| Weight (kg) | 450 |
This product is a medicines packing machine designed by our factory. PLC controlled and GMP standard. The newest blister packing machine is an ideal equipment widely used in small pharmaceutical factory, preparation room in the hospital, an institute laboratory in the pharmaceutical factory and health material factor. This machine is applied to Al-Pl, hard Al- aluminum blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares etc.
Production capacity 30-60thousand PCS/h
Standard printing block Step frequency filling-carrying
30-40times/min an edition/time
Packing material PVC hard sheet with width 88 and thickness 0.2 -0.02mm
Aggregate capacity of power supply 1.8kw 220V lighting electricity
Overall size(L X W X H) 900X460X 890mm, reversing wheel is installed to push
| Cutting Frequency (Times/min) | Al-Al: 6-20 times/min Al-plastic: 20-40 times/min |
| Max. Production Capacity (Blister/h) | Al-Al: 1200 (According to standard plate 80×57) Al-plastic: 2400 (According to standard plate 80×57) |
| Max. Forming Area and Depth (mm) | Al-Al: 80×100×14 Al-plastic: 80×100×26 (Standard 70×90×14) |
| TravelRange(mm) | 20-100 (Can be manufactured as user's requirements) |
| Air Pressure (Mpa) | 0.4-0.6 |
| Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) |
| Total Power | 380V/220V 50Hz 1.8kw |
| Main Motor Power (kw) | 0.75 |
| PVC Rigid Sheet (mm) | 0.15-0.5×80 |
| PTP Aluminum Foil (mm) | 0.02-0.035×80 |
| Dialysis Paper (mm) | 50-100g×80 |
| Mould Cooling | Tap Water or Circulating Water |
| Overall Dimensions (mm) | 1400×460×950(L×W×H) |
| Weight (kg) | 450 |
