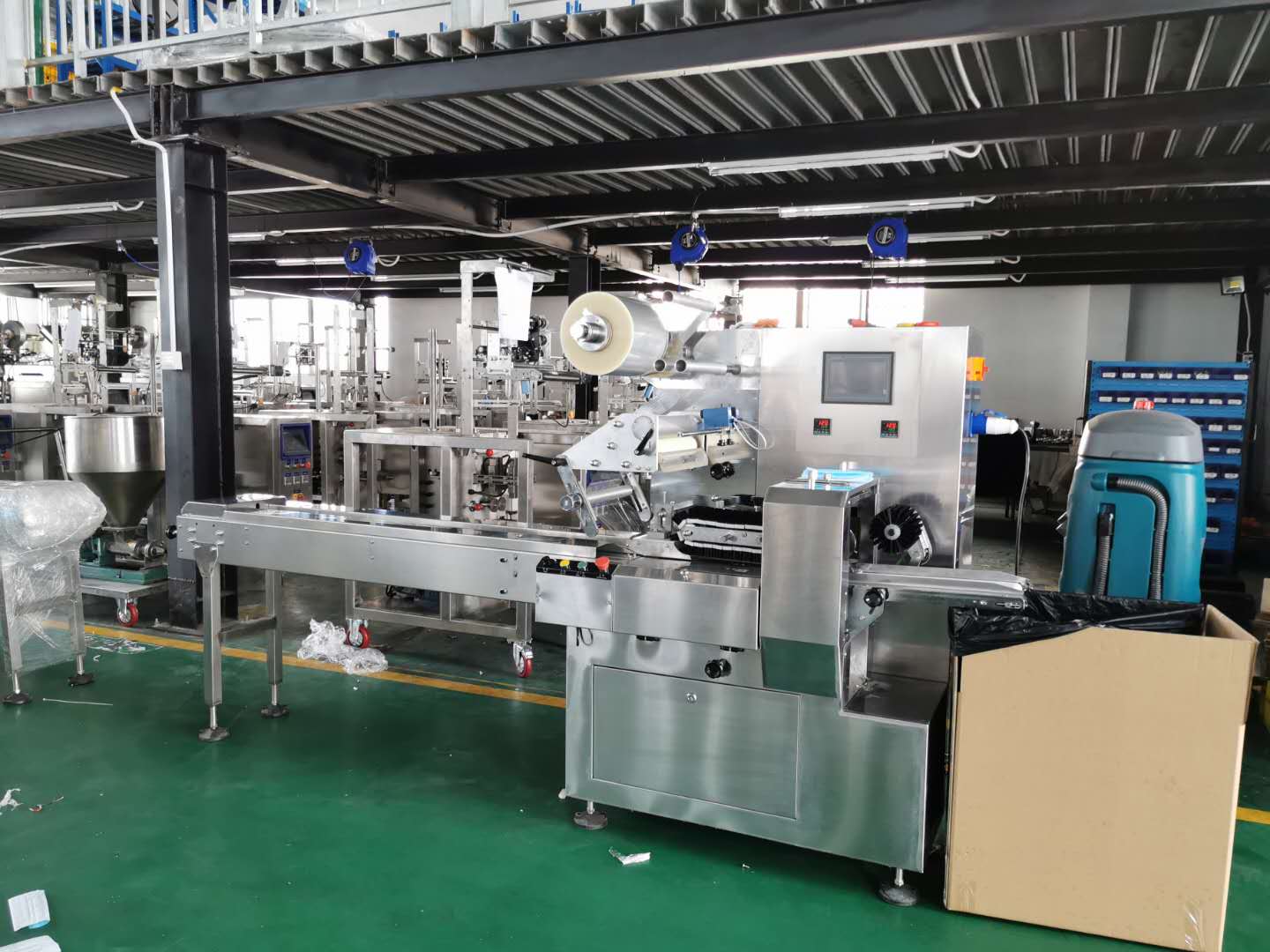

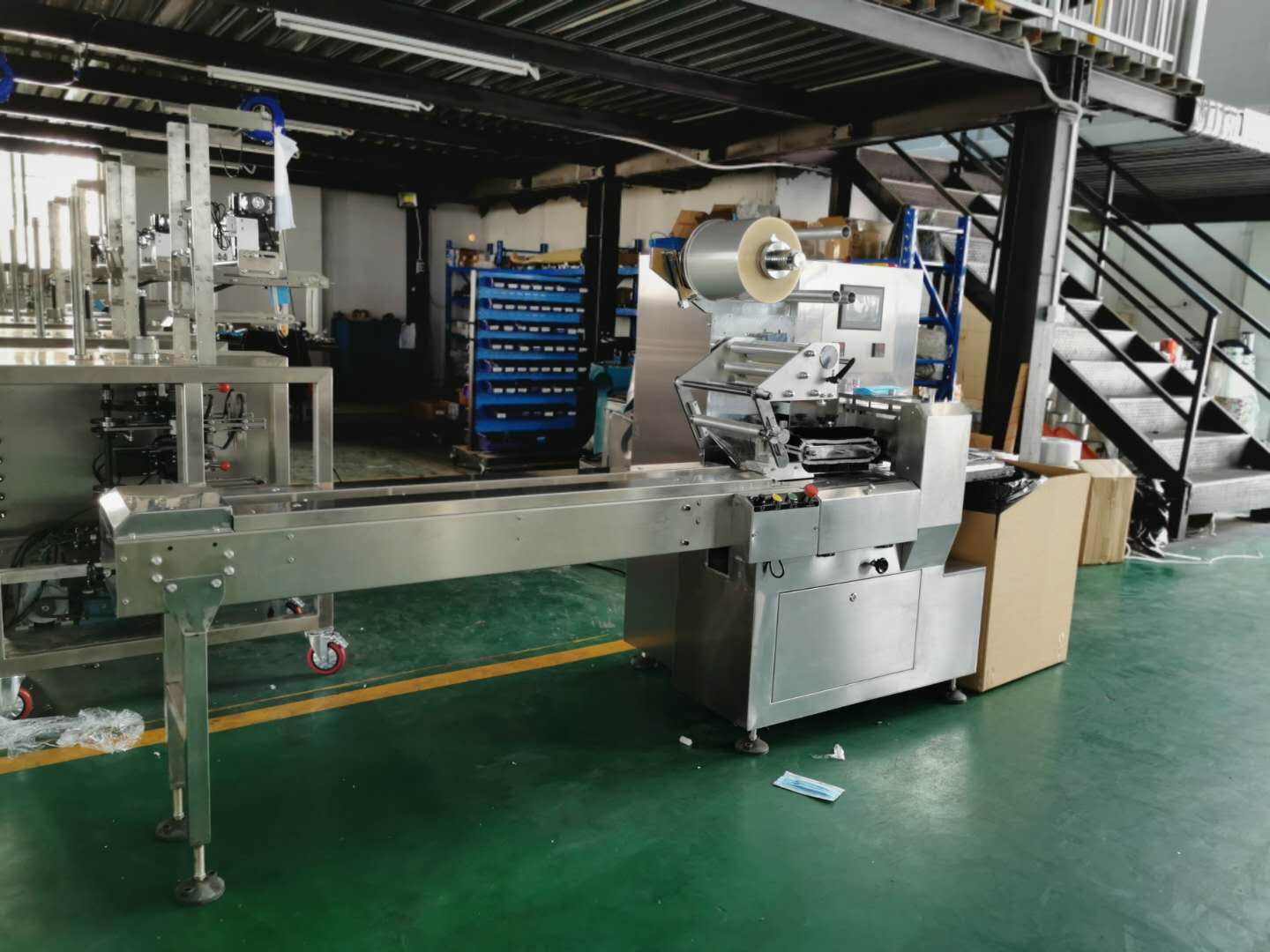

Automatic flow wrap machine hamburger packaging machine

Quantity:
  • Shanghai, China
  • 200sets
  • L/C, T/T, Western Union

Flow wrap packaging machine for food or masks


 Features

1:Double transducer control, flexible bag length cutting, operator needn't to adjust the  unloading working, saving time and saving films.

2:human-machine operation, convenient and quick parameter setting

3:Self diagnosis failure function, clear failure display.

4:High sensitivity optical electric color mark tracking &digital input cut position which makes

 the sealing &cutting more accurate.

5: Separate PID control to temperature, suitable for various packing materials.

6:Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7:Simple driving system, reliable working, convenient maintenance.

8: All the controls are achieved by software, convenient for function adjusting and upgrading.

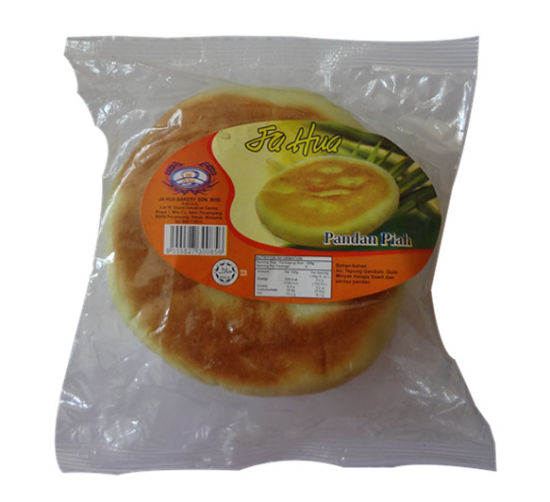

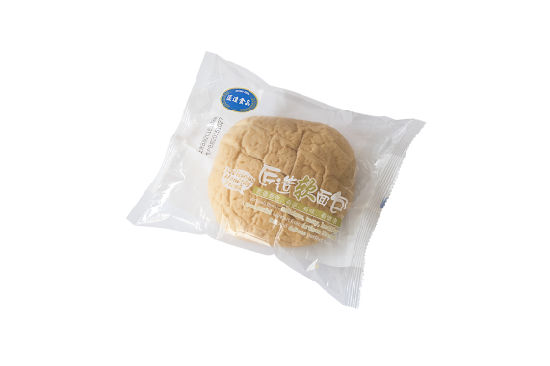

Application

Suitable for packaging various kinds of regular objects like :



Food : like Biscuits , Pies , Chocolates , Bread , Instant noodles, Cup

Cakes ,Energy bar ,Ice cream bar, and etc ...

l  Daily Appliances : Soap bar ,Sponge, Tissue etc ...

l  Medical Product: Masks, Medical marks ,gauze , abrasive, medicine ,Blood sampling device ,etc...

l  Stationery: ball pen ,color pen ,mark pen ,Transparent adhesive, rulers, books, paper cards ,etc..

l  different kinds of Hardware and decoration products.





1. 1-10 pcs/package, mask size range: 180*95mm;

2. The maximum height of the product is 45mm;

3. Packing speed: 0~80 packages/min;

4. Feeding type: manually.

5. Including coding machine;

6. Color-coded tracking;

7. Exhaust function;

8. Delivery date: 5~7 days after receiving the deposit.



The buyer shall   cooperate with the following requirements:



1. The workshop   should be kept dry and ventilated, and there should be air conditioning to   ensure the temperature and humidity of the workshop in a stable state. At the   same time, sufficient equipment space should be ensured in the workshop.

2. The surface of   workshop wall, floor and packaging equipment shall be kept clean, dry and   free of water.

3. Provide   single-phase 220V voltage terminal.

4. Arrange mechanics   and operators with certain mechanical foundation to participate in equipment   installation and debugging, learning and training.

5. Requirements for   making film and bag:

1) except for   electrostatic treatment, there must be no moisture, moisture, water droplets   or foreign matters in the film and on the outer wall.

2) there is no   adhesion phenomenon caused by printing between the membrane words, and the   surface of the membrane maintains good slip.

3) film width error ±1.5mm, film length error ±2.0mm.

4) the membrane   shear part should be flat and straight, and no abnormal phenomena such as   twists and turns or rolls are allowed.

5) film thickness and material should be   consistent with the provided sample.

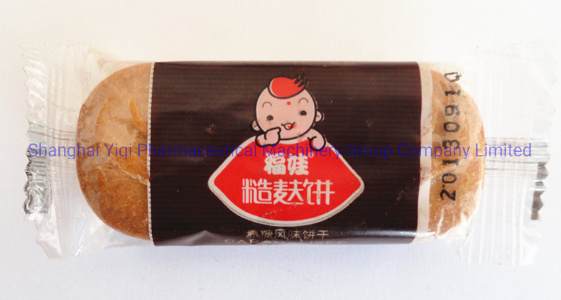

Automatic Hamburger Packing Machine

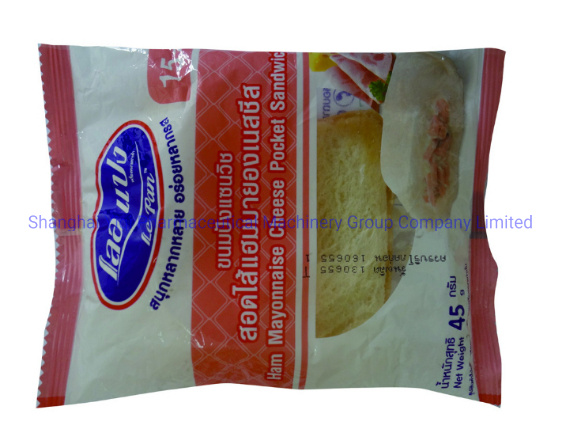

Automatic Hamburger Packing Machine
Automatic Hamburger Packing Machine


Specifications

Model

SYQ-280

Film width

Max 280mm

Bag length

Double cut: 65-190  single cut: 120-280mm

Bag width

30-115mm

Product high

Max.45mm

packing material

OPP/CPP,OPP/PE,PET/PE

Packing speed

80-180bag/min

Machine size

3761x670x151mm

Machine weight

550kg

Power voltage

220V 50/60HZ 2.6KW



Component list

Item

Part name

unit

qty

manufacturer

1

Touch screen

unit

1

Kunlun, China

2

Servo motor

unit

3

Riding, China

3

Driver

unit

3

Riding, China

4

Photoelectric color code sensor

pc

1

Yatai, China

5

Temperature controlled meter

pc

2

Yatai, China

6

Proximity  switch

pc

3

Jinlida, China

7

miniature circuit breaker


7

CHINT, China

8

Solid state relay


3

Aoyi, China
