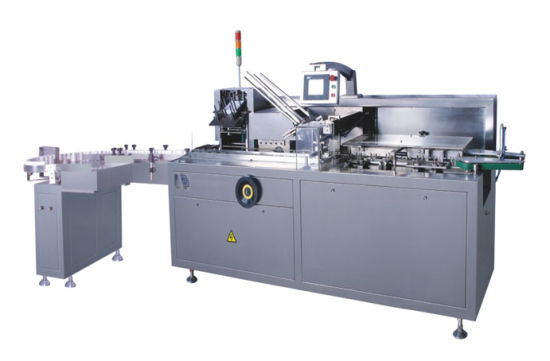

Automatic Pharmaceutical Packaging Cartoning Machine (ZH-100)

1. General Description

This machine is a hi-tech product incorporates of pneumatic-photo-electro-mechanic. It is suitable for inserting tubes, pillow type wrapped products, pharmaceutical products and food similar package into carton in a range. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes canton suction and open, puting the products into cartons, printing batch numbers, sealing carton

s.


Functions and Options

• The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum
• No products no suction.
• No leaflets no suction.
• Product will be manually loaded on conveyer by manual ,then other things finished automaticlly.

• Automatically displaying device for trouble, speed and finished products counting
• Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
• Adopt human-machine operation system.
• International famous brand of electric components such for PLC touch screen, frequency inverters, etc
• Stable performance, operation is easy Controls

Sensors

• Product presence detection sensor
• Leaflet presence detection sensor
• Carton present detection sensor

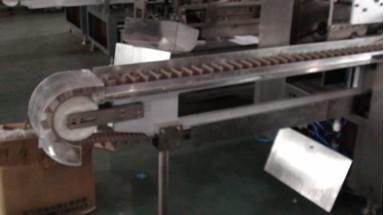

Conveyor for feeding system:
