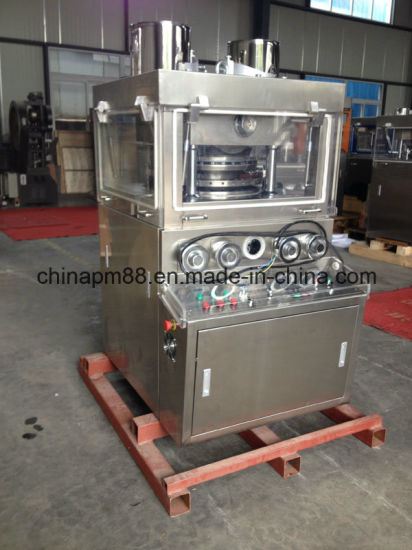

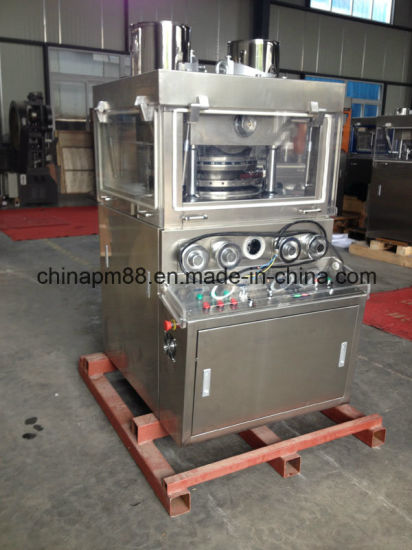

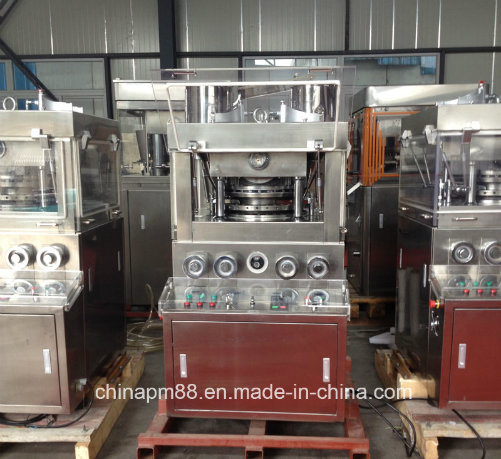

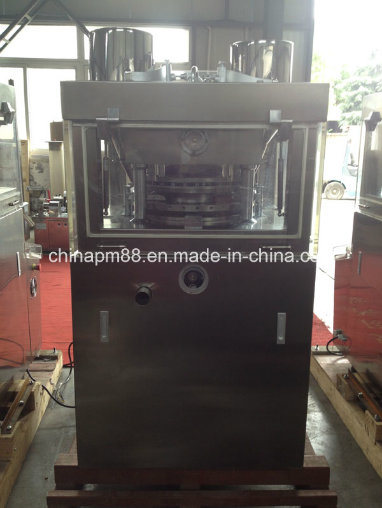

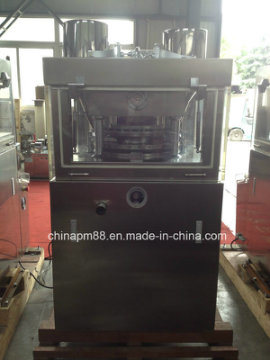

Zpw-31 Double Press Rotary Tablet Press Machine

Quantity:
  • Shanghai, China
  • 3000PCS/Y
  • L/C, T/T, Western Union
  • ZPW-29, 31
  • Customized
  • New
  • 1 Year
  • This Machine Could Be Applied for Food Industry
  • Could Press Polo Candy Shaped Tablets
  • Easy Operation and Maintenaince
  • Max. Tablets Dia 24mm
  • syq
  • Strong Wooden Case
  • CE, GMP
  • Shanghai
  • 8479820090
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized

This machine is a double press rotary tablet press machine. It is with durable working life, and easy operation.
Zpw-31 Double Press Rotary Tablet Press Machine



Main technical data

Number of punches: 29pcs
Maximum working pressure: 800V
Maximum tablet diameter: 4-24mm
Maximum tablet thickness: 6mm
Maximum filling depth: 15mm
Maximum production: 0.125million tablet/hour
Working diameter of rotary table: 420mm
Speed of rotary table: 10-24 r/m
Diameter of stamp: 34mm
Height of middle stamp 22mm
Diameter of upper/lower stamping lever 26mm
Length of upper/lower stamping lever 115mm
Machine's coverage area: 1230*950mm
Height of machine: 1670mm
Net weight of machine: 1700kg
Motor model: Y132S-6
Power: 3kw
Rotation speed: 950r/m
Voltage: 380V

1). This machine integrates automatic rotation, frequency-conversion, speed-adjusting with continuous tablet pressing. It is mainly used for the manufacture of tablet in pharmaceutical ,chemical, food, electronic etc.

2). This machine applies to the pressing of granular material of which powder content(over100 hole) is below 10% and it can't be used for the pressing of half solid, damp granular. Low melting point, easy damping material and the powder without granulator.
3). This machine can produce round, special-shaped and character-engraved tablets 4-20mm.
Model ZPW29, 31
Dies (sets) 29 or 31
Max. Pressure (KN) 80
Max. Dia. of tablet (mm) 24
Max. Filling Depth (mm) 15
Thickness of largest tablet (mm) 6
Turret speed (r/min) 14-36
Production capacity (pc/h) 125000-135000
Motor (kW) 3
Overall dimensions(mm) 1230*950*1670
Net weight (kg) 1700

Model ZPW-29 and ZPW-31 are same model. ZPW-29 could make bigger tablets while ZPW-31 is with higher working capacity.
