This model rotary tablet press is designed for double layered tablets. Which is installed with double force feeding devices for double colored tablet making. The double force feeders are with closed design and good for cleaning working environment for its closed system, GMP standard.

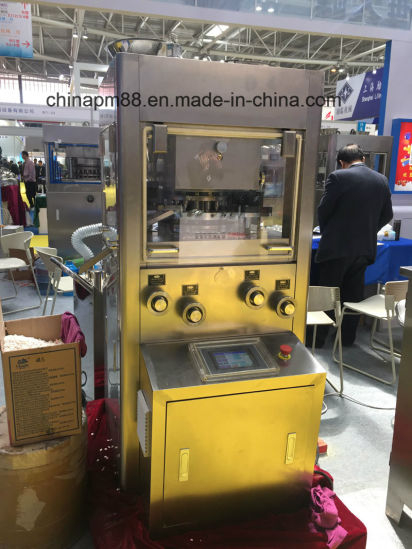

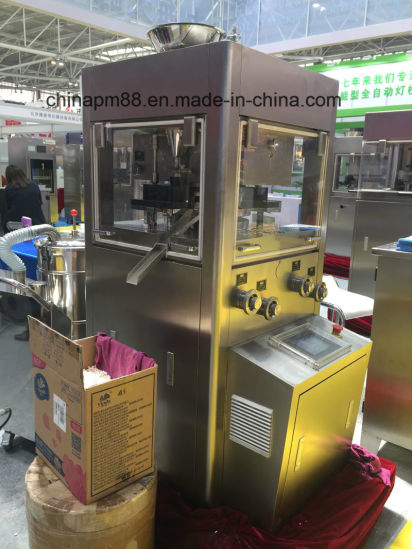

This machine is an automatic rotary single press machine, which is applied for pressing granules into tablets of round shape and irregular shapes. The machine is mainly used in electronics, food, daily commodities, pharmaceutical and other industries.
The machine is fully closed, and it is made of stainless steel, GMP standard.
The transparent observation windows installed enable the working status of the machine could be clearly observed. It can be opened freely to make internal cleaning and maintenance easily.
This model is designed for small batched manufacturing.
The machine is equipped with pressure overload protection to avoid any damage.
Machine is easy operation and maintenance.
Main technical parameters:
|model ||ZPE15 ||ZPE17 |
|Quantity of punches and dies(set) ||15 ||17 |
|Max. Tablet pressure(KN) ||60 ||60 |
|Max. Filling depth(mm) ||17 ||17 |
|Max. Tablet thickness(mm) ||7 ||7 |
|Turret rotation speed(rpm) ||34 ||34 |
|production capacity(pc/h) ||30600 ||34680 |
|overall dimensions(mm) ||900X650X1800 ||900X650X1800 |
|Machine weight(kg) ||700 ||700 |
|motor power(kw) ||3 ||3 |
