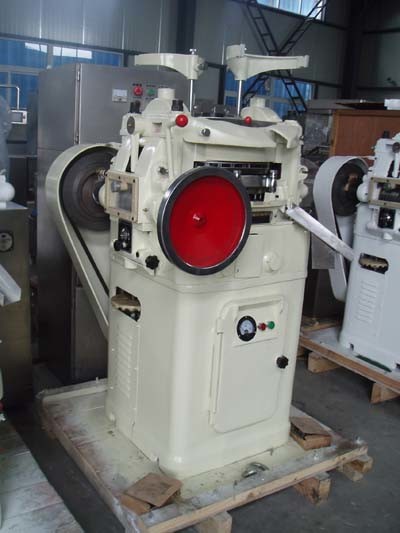

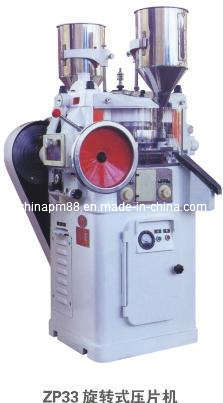

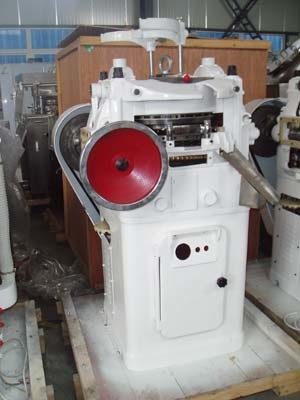

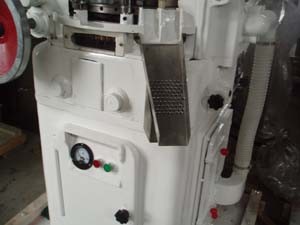

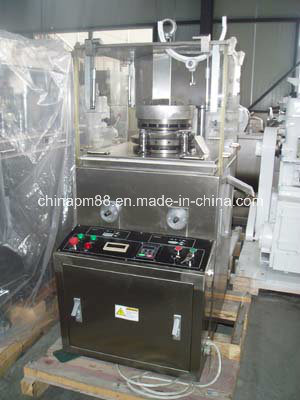

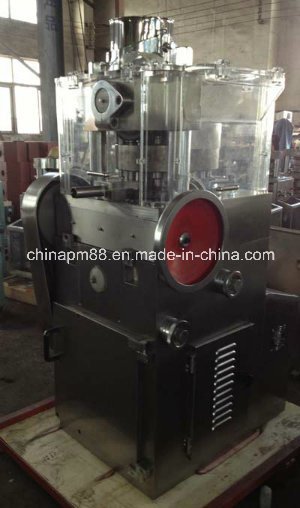

This machine is designed for pressing medicine tablets, button batteries, or mosaic pieces. It is a primary machine to fit batch production of tablets. During
Operation, the speed of the turret rotation, the depth of the filling material and
The thickness of the tablets can be adjusted. The mechanical buffer unit will
Prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder
Material can be reused. This machine has won the fine Quality Product Prize awarded
By the China National Medical Management Bureau.
Dies (sets): 33
Max. Pressure (KN): 40
Max. Dia. Of tablet (mm): 12
Max. Depth of fill (mm): 15
Thickness of largest tablet (mm): 6
Turret speed (r/min) 11-28
Production capacity (PC/h): 43000-110000
Motor (kW): 2.2
Overall dimensions(mm) 950X960X1600
Net weight (kg): 850
