Application

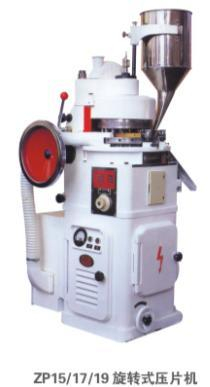

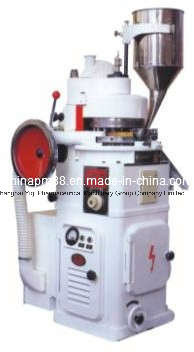

ZP15, 17, ZP19 is widely used in the industry of camphor balls(Moth Balls), calcium tablet manufacturing, milk tablet pressing, confectionery, metallurgy, and some chemical components production. This machine presses not only round tablets, but also different geometrical shape tablets from various kinds of granular materials, especially for small-scale batch production.
| Model | ZP17 |
| Dies (Sets) | 17 |
| Capacity(pcs/h) | 20400-40000 |
| Max. Pressure | 50kn |
| Max. Dia. of Tablet | 20mm |
| Max. Depth of Fill(mm) | 15 |
| Max. Thickness of Tablet (mm) | 6 |
| Turret Speed | 20-40/min |
| Motor | 2.2kw 960r/min, 380/50Hz |
| Overall Dimension(mm) | 880*750*1600 |
| Net Weight (Kg) | 500 |
Technical Data of ZP17, ZP19.
Model ZP19 ZP17
Dies (Sets) 19 17
Capacity(PCS/h) 22800-45000 20400-40000
Max. Pressure 40kn 50kn
Max. Dia. Of Tablet 12mm 20mm
Max. Depth of Fill(mm) 15 15
Max. Thickness of Tablet (mm) 6 6
Turret Speed 20-40/min 20-40/min
Motor 2.2kw 960r/min, 380/50Hz 2.2kw 960r/min, 380/50Hz
Overall Dimension(mm) 880*750*1600 880*750*1600
Net Weight (Kg) 500
