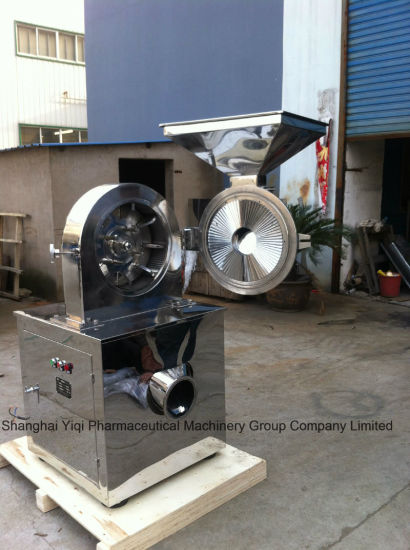

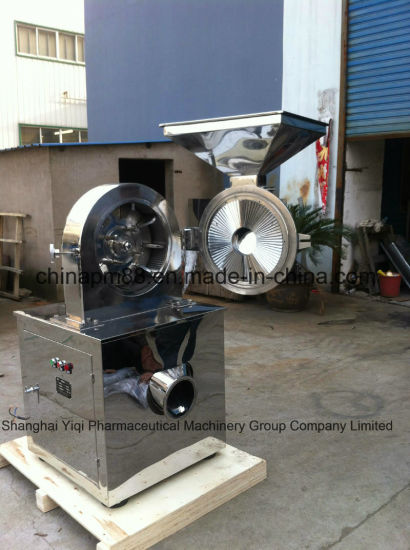

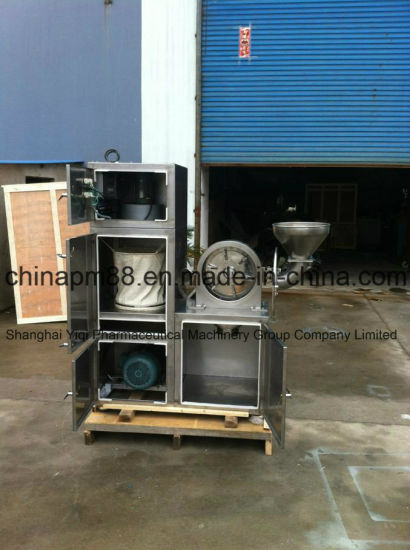

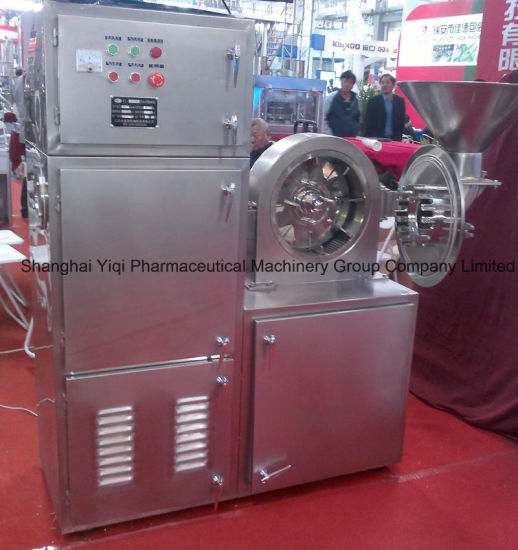

Wfj Fine Pulverizing Machine for Medical Herbs

Quantity:
  • Shanghai, China
  • 1000
  • L/C, T/T, Western Union
  • WFJ-15
  • Non-Customized
  • New
  • 1 Year
  • 980kg
  • 13.5kw
  • SYQ
  • Polywood Case
  • 14CBM
  • Shanghai
  • 8479820090
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
Wfj Fine Pulverizing Machine for Medical HerbsMain Application

The pulverizer (crusher) is composed of main motor, auxiliary motor, and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh, and compact design. Due to the negative pressure sends heat out continuously in operation, the machine is also applied for the grinding of heat sensitive materials, The pulverizer is widely applied in industries such as chemical foodstuff, pharmacy, cosmetic, tincture resin and so on, ranking world advanced levels.

Features

1. CE approved
2. Air and water cooled
3. Fineness of powder adjustable
4. Cyclone discharging, no dust fly.

Working Principle

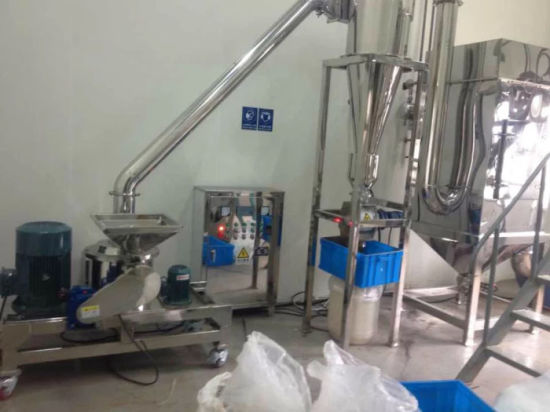

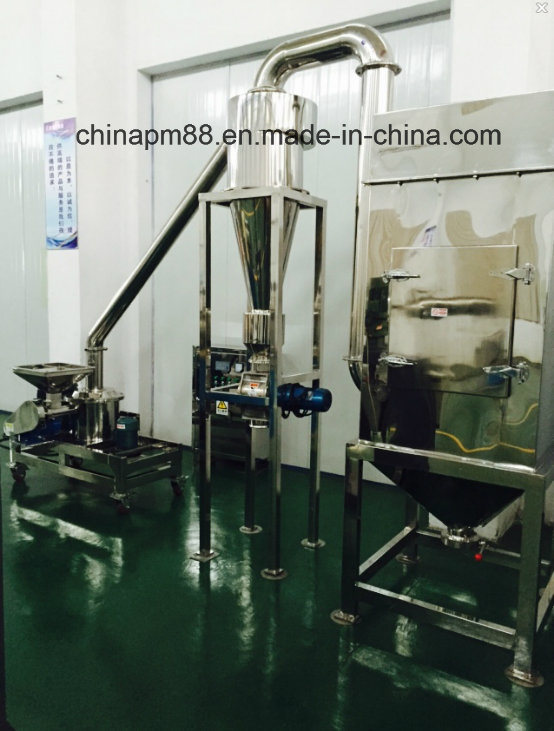

Raw material is delivered to the grinding chamber via hopper by spiral feeder, and it is cut and sheared by the high speed cutters, then the materials moved into the whirl wind separator and sack dust catcher by the negative pressure sucking method. The dust is collected and recycled via cloth bag or filter of dust absorption box. There is no dust flying during production so as to improve the utilization and decrease the production cost.

Main technical Parameters
Model
15

20

Capacity(kg/h)

30-200

50-300

Size of input granules(mm)

< 10

< 12

Size of output granules

80-320adjustable

80-320adjustable

General power(kw)

13.5

17.5

Main running speed (r/min)

6000

4800

Weight(kg)

980

1300

Overall size(mm)L× W× H

4200× 1200× 2700

4700× 1250× 2900
