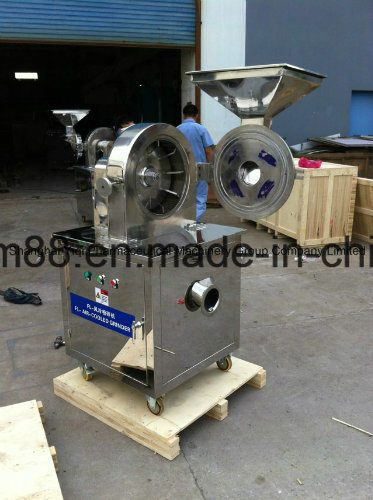

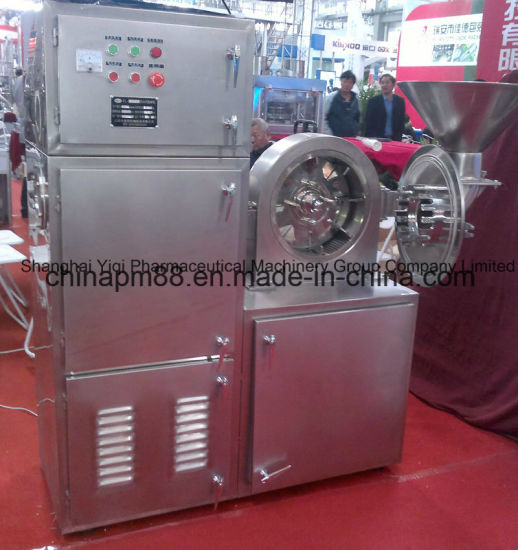

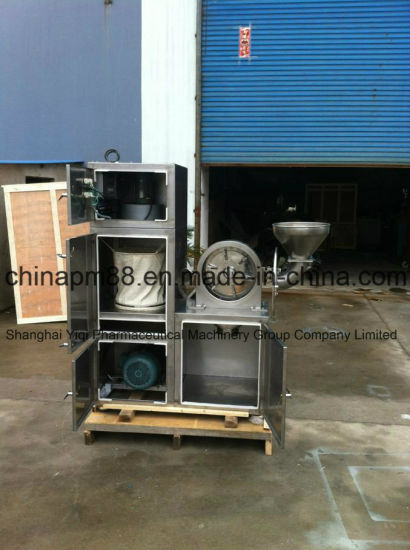

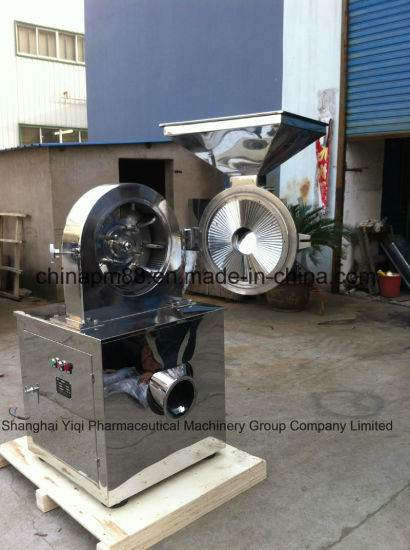

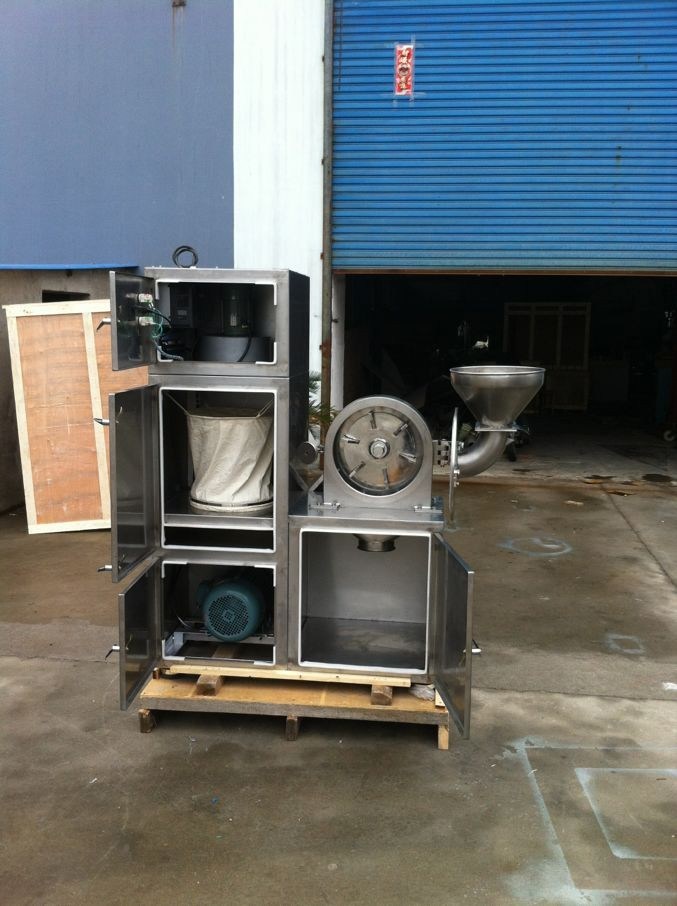

Wfcj Series Pharmaceutical Grind Machine & Pulverizer

Quantity:
  • Shanghai, China
  • 3000units/Year
  • L/C, T/T, Western Union
  • WFCJ350
  • Non-Customized
  • New
  • 1 Year
  • Pulverizer for Chemical, Pharmaceutical Industry
  • It Could Pulverize Any Materials.
  • KH
  • Standard Packaging for Export
  • CE
  • Shanghai
  • 8419820090
  • Preparation Machinery
  • Granules
  • Precision
  • CE, GMP, ISO
  • 220V
  • Non-Computerized
The machine is applied for pharmaceutical, chemical and foodstuff etc as pulverizing machinery, before fine crushing process in equipment, it is not affected by material viscosity, hardness, softness and fiber etc, can have better crushing effect for any material.

Working principle: The mill for the vertical structure, material by pulverizer into fed into the crushing chamber, rotating impact of rotating knives, shear and crushed by the fixed knife knife and activities at the same time, under the effect of rotating centrifugal force, the material flows to the exit automatically. According to the "GMP" standard design, the whole machine all adopt the stainless steel material manufacturing, make drugs, food, etc can conform to the requirements of the national health.


Technical parameters: The following crushers or pulverizers are for your option:
Production capacity 100-500 kg/h spindle speed 960-2800 r/min
Feed particle size 100 mm or less motor 5.5 KW
The grain-size 0.5-20 mm work noise < 70 decibel

Wfcj Series Pharmaceutical Grind Machine & Pulverizer
