Wf Series Gypsum Dust Absorption Grinder & Grinding Machine

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
800
Payment Terms:
L/C, T/T, D/P, Western Union, Paypal
Model NO.:
WF-60B
Customized:
Non-Customized
Condition:
New
Warranty:
1 Year
Capacity:
30-2000kg/H
Trademark:
SYQ
Transport Package:
Polywood Case
Specification:
3CBM
Origin:
Shanghai
HS Code:
8479820090
Type:
Preparation Machinery
Finished Dosage Form:
Granules
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Computerized

Product Description

The machine is mainly applied for the material grinding for the industries of pharmaceutics, chemical and foodstuff, etc.

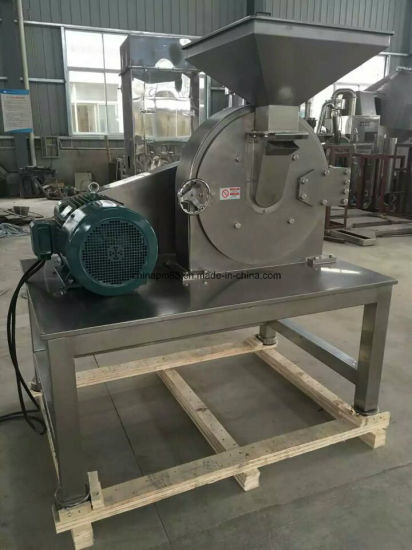

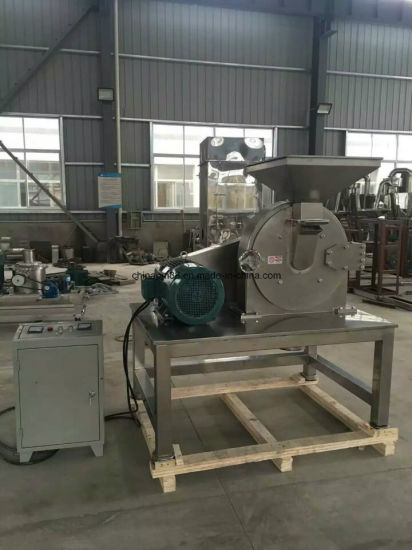

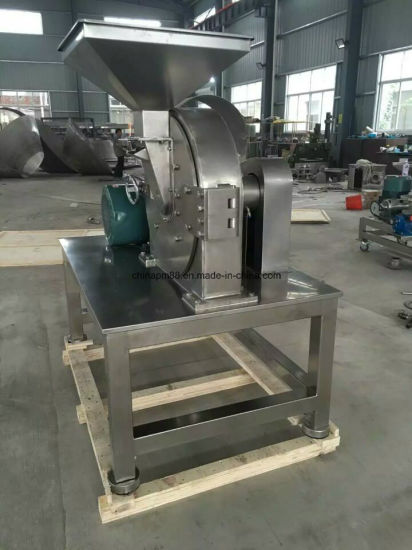

The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The crushed material can enter the collection box by the centrifugal force.

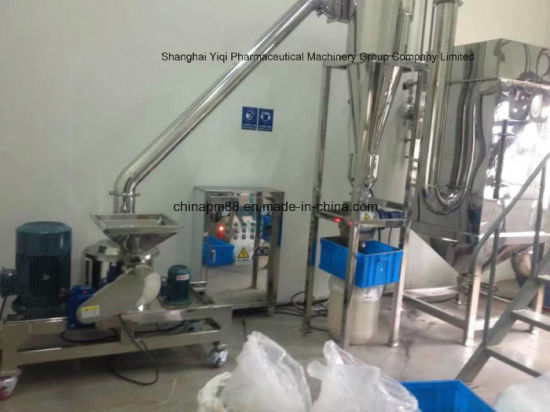

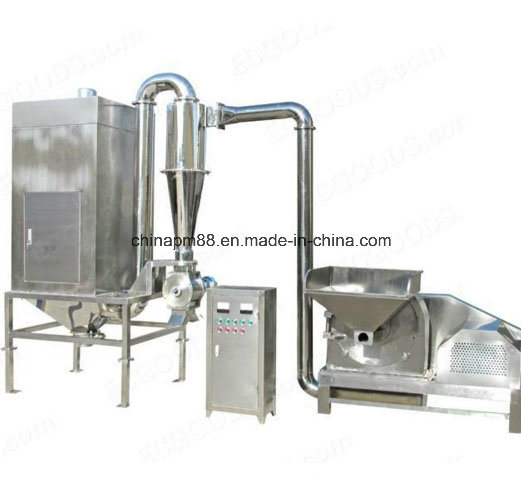

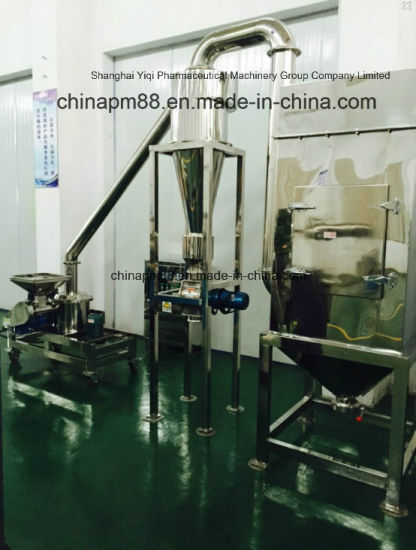

The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box.
Fully made of Stainless steel.
GMP Standard. During working there is no dust flies.

Technical parameters:

MODEL	Working capacity (kg/h)	Speed of main shaft (r/min)	Input size (mm)	fineness (mesh)	Grinding Motor power (kw)	Dustc ollection motor power (kw)	Discharging motor (kw)	Overall dimensions (mm)	Weight (kg)
20B	60-150	4500	6	20-120	4	2.2	0.75	3000×850×2300	580
30B	100-400	3800	6	20-120	5.5	3	0.75	3500×850×2380	880
40B	160-1000	3400	10	20-120	11	4	0.75	3500×900×2380	1200
60B	500-1500	2800	12	20-120	18.5	7.5	1.1	6600×1100×2380	2000
80B	600-2000	2200	15	20-120	37	11	1.5	7800×1100×2500	3000
100B	1000-3000	1500	15	20-120	55	18.5	2.2	9980×1280×2800	6000

Grinding Machine Shredder Grinder
