Wf Model Universal Grain Processing Pulverizer Spice Grinding Machine

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
800
Payment Terms:
L/C, T/T, Western Union
Model NO.:
WF
Condition:
New
Customized:
Customized
Trademark:
SYQ
Transport Package:
Wooden Case
Specification:
150-200kg/h
Origin:
Shanghai
HS Code:
84791000
Type:
Rice Mill
Application:
All
Voltage:
380V
Appearance:
Vertical
Press Materials:
Corn
Press Series:
Fifth

Product Description

This grinder machine can be mainly used for grinding various grains, dry spices and herbs, herbal medicines containing roots and branches, chemical materials, and some other hard and brittle materials.
It could grind grains,roasted coffee bean,spices,herbs,salt,sugar,pepper,walnut shells,seed,etc.After grinding, fine powder can be made.

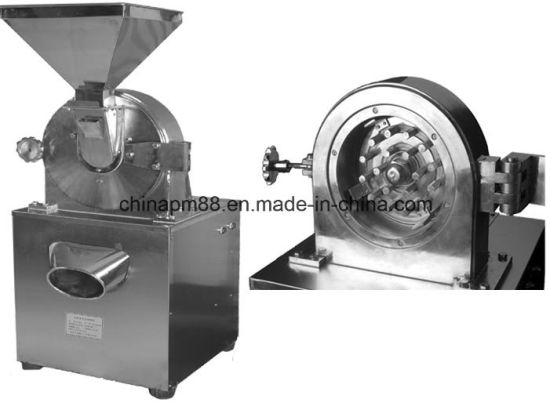

(1) It works with relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials.
(2) The size of granules can be achieved by changing different size screens.

Features:

(1) with nice designed structure. Solid, stable running and good efficiency.

(2) final product is discharged directly from the grinding chamber of the main frame.

(3) Made of stainless steel, no powder accumulation on inside walls.

(4) "GMP" standard.

Technical parameters:

Model	18	20	30	40	60
Capacity(kg/h)	5-30	20-150	30-300	40-800	60-1200
Speed of principal axis(r/min)	5200	4500	3800	3400	2600
Size of input granules(mm)	≤5	≤6	≤10	≤12	≤15
Fineness of products(mesh)	12-120	12-120	12-120	12-120	12-120
Power(kw)	2.2	4	5.5	11	22
Weight(kg)	120	200	320	550	960
Overall size(L×W×H)(mm)	400×400×800	650×500×1250	750×600×1450	900×700×1800	1000×950×1800

Welcome to check with us, we'd like to design any mode of pulverizers for you with fluted disc, pin mode, turbo mode, air cooled, hammer mode, sieve of different sizes, for different capacity.
