This Universal dust absorption pulverizer set is suitable for pharmaceutical, chemical and foodstuff industries, etc. Fully made of stainless steel and GMP standard. It is a new generation of pulverizer with durable working life and reliable quality. Applications:
1. All kinds of food contain sesame seed, walnut, rice, black rice, beans, mung beans, peanuts, lotus seed,
corn, sorghum, barley, buckwheat, oats, etc;
2. All kinds of dried herbs containing almonds, poria cocos, red jujube, Gordon euryale seed, medlar, yi,
hawthorn, HuaiShan, radix polygoni multiflori, red bean, donkey-hide gelatin, frankincense, dodder, angelica, dangshen, astragalus membranaceus,
3. All kinds of chemical raw materials including coal, gypsum, salt, acid.
4. All kinds of spices, pepper, pepper, Chinese prickly ash, star anise, cinnamon and etc.
Main features
The machine adopts the high-speed spinning blade of wind wheel and stationary knife. It has advantages of low noise, light vibration and no dust flying in the course of production. This is according with the requirement of GMP.
Working principle

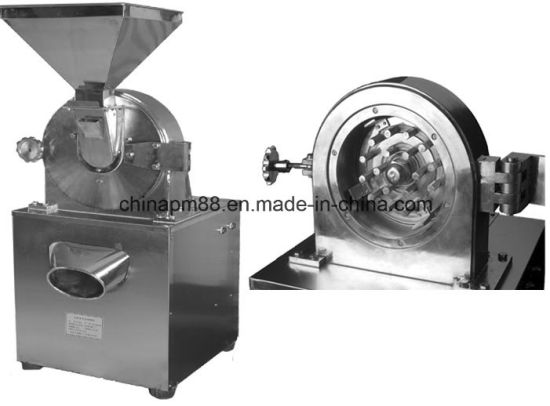

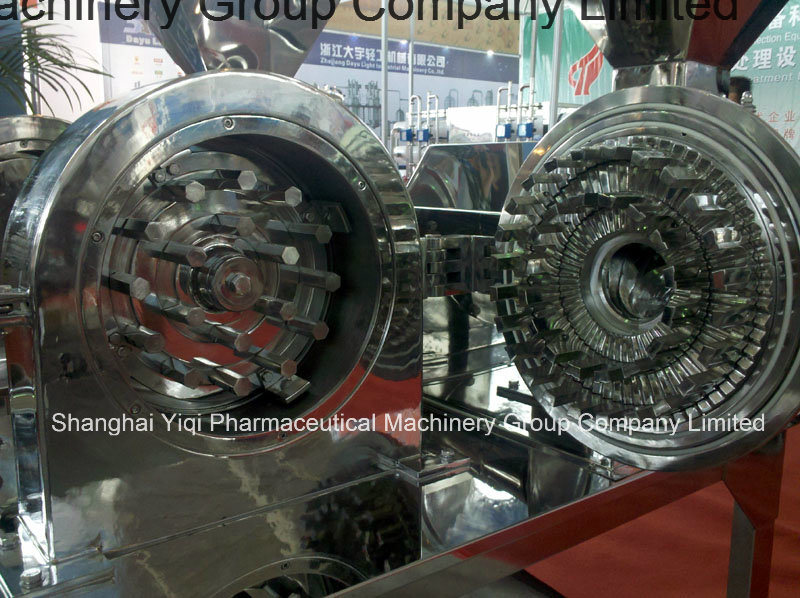

The machine has a relative movement between the moving gear tray and the fixed tray to pulverize the material. The materials are pulverized by gear impacting mutual impacting anc friction. The ground material automatically enters the collecting bag under the action of the eccentric force, and it is discharged from the dust absorption box through filtering bags.
Technicial Parameters:
| Model | 20B | 30B | 40B | 60B |
| Capacity(kg/h) | 20-150 | 30-300 | 40-800 | 60-1200 |
| Speed of principal axis(r/min) | 4500 | 3800 | 3400 | 2600 |
| Size of input granules(mm) | ≤6 | ≤10 | ≤12 | ≤15 |
| Fineness of products(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Power(kw) | 4 | 5.5 | 11 | 22 |
| Weight(kg) | 200 | 320 | 550 | 960 |
| Overall size(L×W×H)(mm) | 650×500×1250 | 750×600×1450 | 900×700×1800 | 1000×950×1800
|
Welcome to check with us about the technical parameters of the pulverizer. We provide coarse pulverizer and fine crushers, customized high efficient pulverizers for herbs and seasonings etc with various working capacity for your different demands.
Welcome to send us the specific requirements, and visit our factory.
