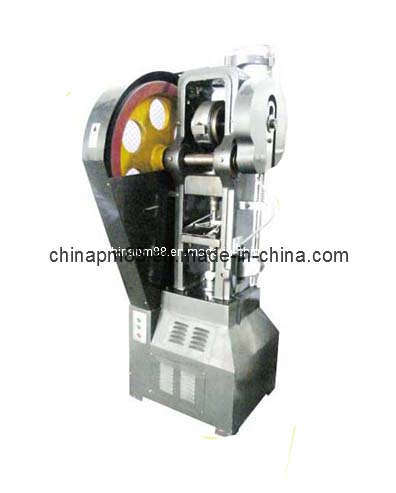

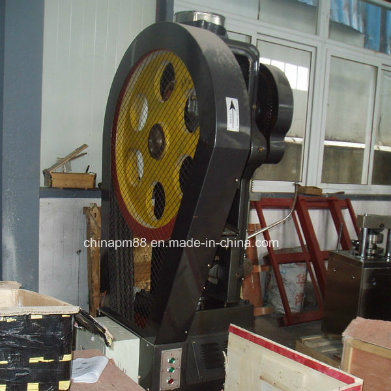

THP fLOWER-BASKET TABLET PRESS
This machine is a single punch tablet press machine for pressing big tablets with heavey compression pressure.
This machine is a continuous automatic tablet press which is mainly for pressing granular raw materials into tablets with impressing logos or images trademark on the tablets. It is widely used in pharmaceutical, chemical, food, and electronic industries.
It is with heavey pressing pressure, could be used to press medicine tablets, coffee pills, powder metallurgical parts, electronnic components, various tablets of pesticide and fertilizer, pool blocks and etc, which is for small scale production, laboratory, or hospital.
A. Easy operation
B. It has big pressure. Could press big tabltes with small capacity.
C. Material filling and depth adjustment.
D. It is driven by electricity or manually.
E. It could press various shapes of tablets if change the P/D.
|15 ||20 ||25 ||30 ||45 |
|Pressure(KN) ||150 ||200 ||250 ||300 ||450 |
|Max. stroke of up punch (mm) ||110 ||110 ||120 ||130 ||140 |
|Depth of filling (mm) ||70 ||80 ||90 ||100 ||120 |
|Dia of low punch (mm) ||115 ||115 ||130 ||140 ||100 |
|Diameter of the largest tablet (mm) ||55 ||65 ||80 ||85 ||90 |
|Production number (times/mn) ||20-40 ||20-35 ||15-35 ||15-32 ||12-25 |
|Motor (kw) ||3 ||4 ||4 ||5 ||6 |
|Overall size(mm) ||2120x980x960 ||2100x1000x1050 ||2180x1020x1080 ||2240x1100x1040 ||2330x1165x1080 |
|Net weight (kg) ||1100kg |
