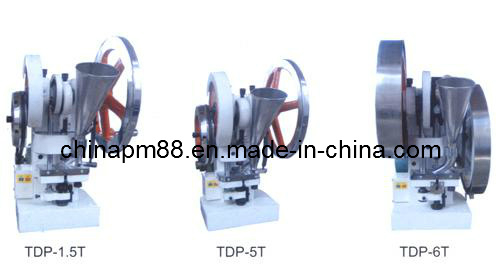

TDP Series includes three models by different pressing pressure: 1.5tons, 5tons, 6 tons for different sizes of tablets and different raw materials.

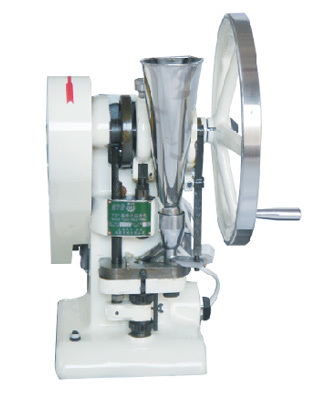

This Single-punch tablet press is designed for pressing tablets from a variety of granulated materials.The Single-punch tablet press is a pressing machine driven by motor or hand.One punch die set is included.Filling depth, tablet thickness, and punch pressure are all adjustable.Our Single-punch tablet press is an ideal equipment for laboratory, research department and small manufacturers.
Technical parameters: | No. | Item | TDP-1.5Ton | TDP-5Ton | TDP-6Ton |
| 1 | Max.press strength(KN) | 15 | 50 | 60 |
| 2 | Max.tablet diameter(mm) | 10 | 16 | 25 |
| 3 | Max.filling depth(mm) | 10 | 12 | 16 |
| 4 | Productive capacity(pcs/h) | 6000 | 1400 | 1400 |
| 5 | Motor power(kw) | 0.55 | 0.75 | 1.1 |
| 6 | Turning speed(r/min) | 1400 | 1400 | 1400 |
| 7 | Weight(kg) | 91 | 125 | 150 |
| 8 | Length*width*height(mm) | 700*370*800 | 700*400*800 | 700*500*900 |
