| Quantity: | |
|---|---|
Shanghai, China
6000PCS/Y
L/C, T/T, Western Union
TDP
Customized
New
1 Year

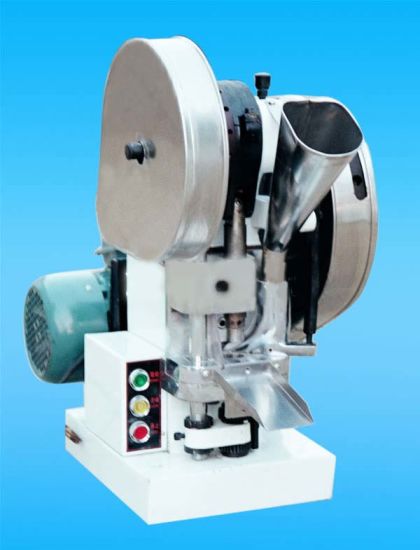

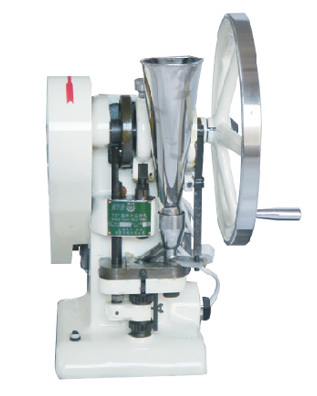

Single Punch Tablet Press for Lab or Individual
with Heavey Punching Presure
syq
Export Packaging
CE GMP
Shanghai, China
8479190090
Preparation Machinery
Tablet
Precision
ISO
220V
Non-Computerized

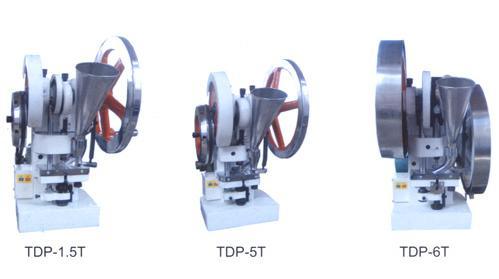

| Model | TDP-1.5 | TDP-5 | TDP-6 |
| Max. Pressure (kN) | 15 | 50 | 60 |
| Max. dia. of tablet (mm) | 12 | 20 | 25 |
| Max. Depth of fill (mm) | 12 | 16 | 16 |
| Thickness of largest tablet (mm) | 6 | 6 | 6 |
| Production capacity (pcs/h) | 5000 | 4500 | 5000 |
| . Motor (KW) | 0.55 | 0.75 | 1.1 |
| Overall size(mm) | 700*370*800 | 700*400*800 | 700*500*900 |
| Net weight | 48 | 125 | 140 |
| Model | TDP-1.5 | TDP-5 | TDP-6 |
| Max. Pressure (kN) | 15 | 50 | 60 |
| Max. dia. of tablet (mm) | 12 | 20 | 25 |
| Max. Depth of fill (mm) | 12 | 16 | 16 |
| Thickness of largest tablet (mm) | 6 | 6 | 6 |
| Production capacity (pcs/h) | 5000 | 4500 | 5000 |
| . Motor (KW) | 0.55 | 0.75 | 1.1 |
| Overall size(mm) | 700*370*800 | 700*400*800 | 700*500*900 |
| Net weight | 48 | 125 | 140 |
