Tdp Mode China Made Single Punch Tablet Press Machine

Quantity:
  • Shanghai, China
  • 1000units/Year
  • L/C, T/T, Western Union
  • TDP-1.5, TDP-5, TDP-6
  • New
  • 1 Year
  • for Lab
  • SYQPM
  • Standard Packing for Export
  • CE
  • China
  • 8479820090
  • Preparation Machinery
  • Tablet
  • CE, GMP, ISO
  • 220V
  • Non-Computerized
  • Customized

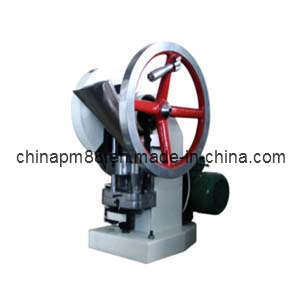

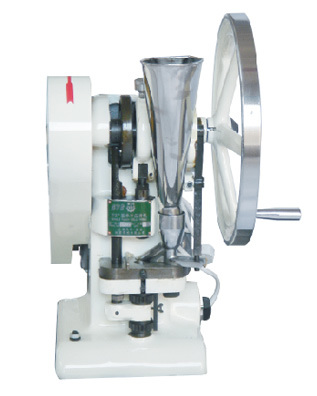

This Single punch tablet press, TDP is designed for pressing tablets from a variety of granulated materials.The Single punch tablet press is a pressing machine driven by motor or manually.One punch die set is included.Filling depth, tablet thickness, and punch pressure are all adjustable.Our Single punch tablet press is an ideal equipment for laboratory, research department, hospital, trial producing depts, and small batch production.
Model TDP5 single punch tablet press is with large pressing pressure of 50KN, it could press the tablets diameter 12-20mm.
It could press herbals, and western medicine.

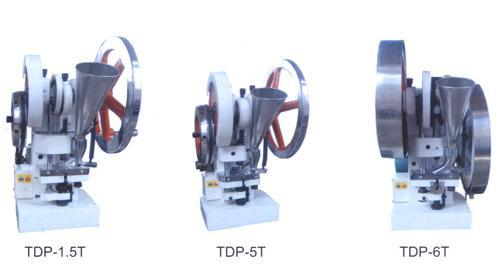

Model
TDP-1.5
TDP-5
TDP-6
Max. Pressure (kN)
15
50
60
Max. dia. of tablet (mm)
12
20
25
Max. Depth of fill (mm)
12
16
16
Thickness of largest tablet (mm)
6
6
6
Production capacity (pcs/h)
5000
4500
5000
. Motor (KW)
0.55
0.75
1.1
Overall size(mm)
700*370*800
700*400*800
700*500*900
Net weight
48
125
140

Tdp Mode China Made Single Punch Tablet Press Machine
