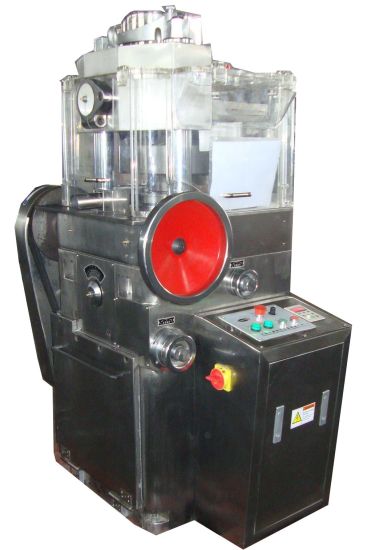

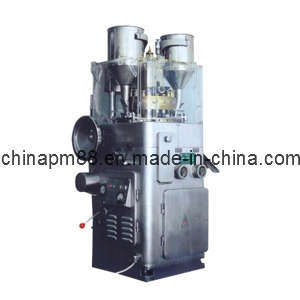

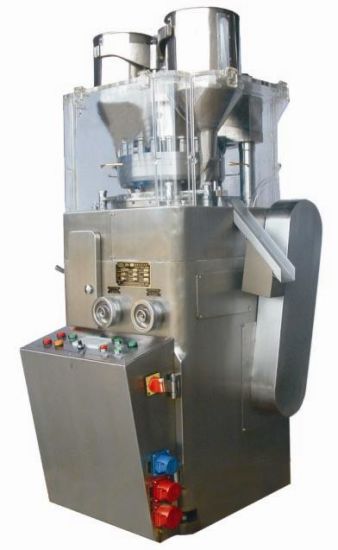

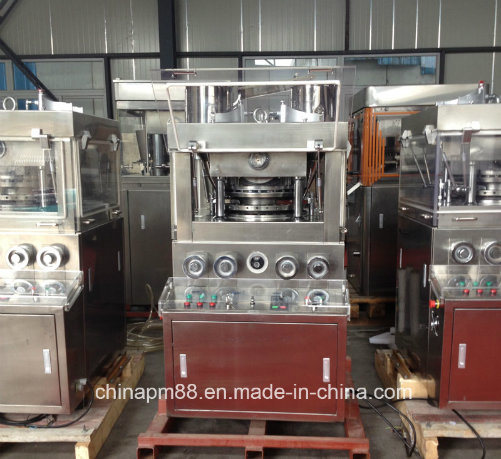

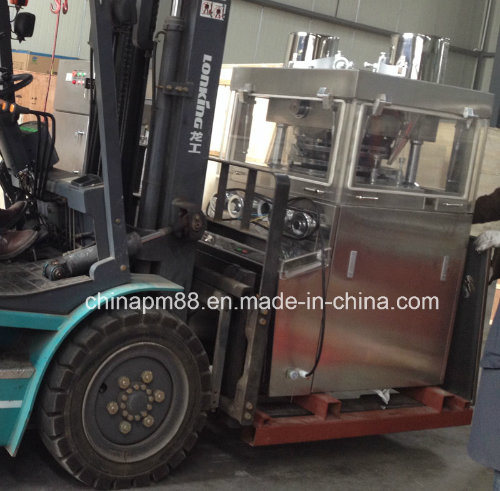

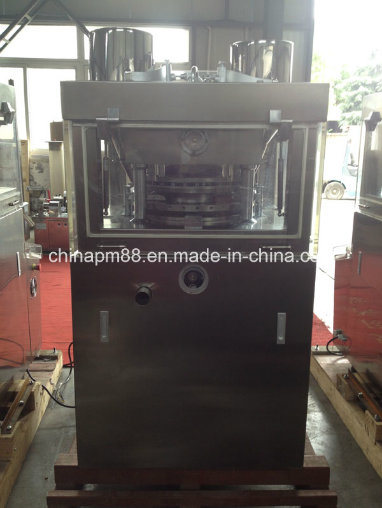

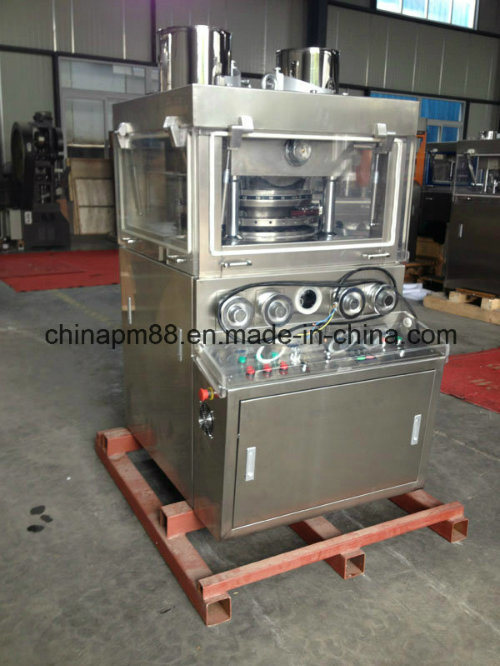

Tabet Press Machine for Big Tablets (ZPW21)

Quantity:
  • Shanghai, China
  • 2000PCS/Y
  • L/C, T/T
  • ZPW21
  • New
  • 1 Year
  • for Vitamin Products, Veterinary Medicine
  • 1750
  • syq
  • Strong Export Packaging
  • CE, GMP
  • Shanghai
  • 8419820090
  • Crude Drug Equipment
  • Tablet
  • CE, GMP, ISO
  • 380V
  • Non-Computerized
  • Customized
ZPW21A(B) rotary tablet press - Medical Machinery
ZPW21A(B)rotary tablet press is designed for pressing tablets from various kinds of granular materials.
ZPW21A(B)rotary tablet press can press not only round tablets but also different geometrical shape tablets, double-layer and annular tablets. The tablets may have the impressed letters on both sides. The turret carries 21 sets of movable-punches and dies. So, 21 tablets press will be pressed for each rotation of the turret.

Operating Principle of ZPW21A(B) rotary tablet press:
During operation, the depth of the filling material and the thickness of the tablets can be adjusted. The pressure for tablet pressing is set by the hydraulic drive system and a pressure gauge in ZPW21A(B)rotary tablet press is to show the pressure value. An overload protection unit is included in the system to avoid the damage of the punches and apparatus when overloaded. The machine stops automatically.
New ZPW21A(B)rotary tablet press is designed to meet the GMP standard. ZPW21B is an improved version of ZPW21A. Its pressing area is sealed with four polymath methacrylate doors to be isolated with outside environment. The material contact parts are made of stainless steel and their surface is specially antisepticised to avoid pollution.

Tablet press, is also can be called as tablet press machine, pill press machine, tablet compression machine and tablet making machine, is for pressing powder raw materials into tablets.

Technique Parameter of ZPW21A(B) rotary tablet press:
Dies (sets) 21
Max. Pressure (KN) 80
Max. Dia. Of tablet (mm) 30
Max. Filling Depth (mm): 18
Max. Thickness of largest table (mm) 9
Production capacity (pieces/h) 40000/h
Motor power (kW) 3
Overall size (mm) 900*800*1640
Weight (kg): 1200

Technical parameter:
Dies 21 sets
Max. Pressure 80KN
Max. Dia. of Tablet 20mm(length 16mm)
Max. Depth of Fill 18mm
Max. Thickness of Tablet 9mm
Turret Speed 5-36r/min
Production Capacity 15000-45000pc/h
Motor 40KW 1400r/min 380/50v/hz
Overall Size (L*W*H) 900*840*1640mm
Net Weight 1200kg


More choices of tablet press machinery:

ZPW-29

Tabet Press Machine for Big Tablets (ZPW21)
Tabet Press Machine for Big Tablets (ZPW21) Tabet Press Machine for Big Tablets (ZPW21) Tabet Press Machine for Big Tablets (ZPW21)

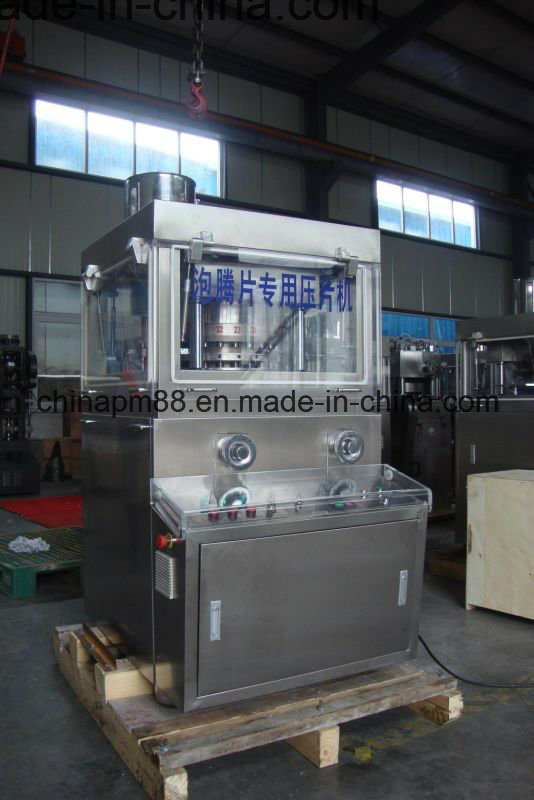

Effervescent Tablet Press Machine:

Tabet Press Machine for Big Tablets (ZPW21)
