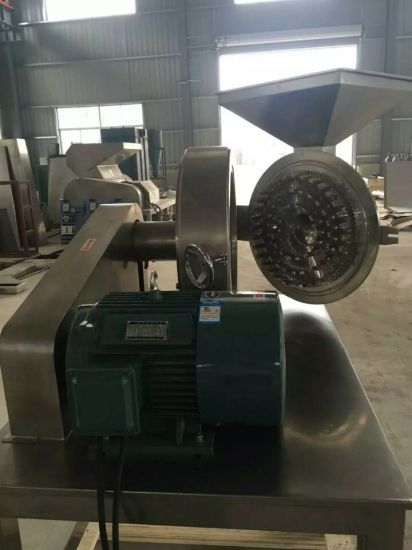

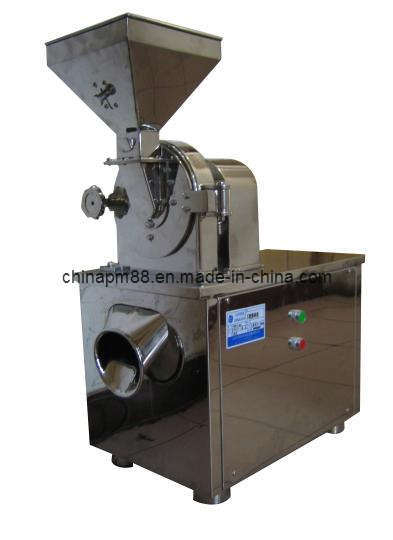

Fully made of stainless steel, it is designed for pharmaceutical, food, and chemical industry for small scaled manufacturing. It is also called herb hammer mill, or called high efficient stainless steel pulverizer, which is developed by our factory studied the technology of Japan and Germany.
With a simple structure, durable quality, stable running, easy cleaning and good grinding effect, this model is widely welcomed by hospital, laboratory, R& D department of the pharmaceutical manufacturers, and small scaled manufacturing plant. The finished products could be discharged directly from the crushing chamber of main machine, the fineness could be controlled by different sizes of screen.
The whole machine is fully made of stainless steel. The inner wall of the housing is well polished, reached the requirements of GMP.
This model could grind the materials feeding size less than 2mm into the final fineness of 120meshes.
Technical parameters: | PULVERIZER | SF-130 | SF-180 | SF-250 | SF-320 |
| Rotation of main shaft(rpm) | 7000 | 4000 | 3800 | 3800 |
| Feeding size(mm) | 4 | 5 | 8 | 10 |
| Fineness(meshes) | 10-120 | 10-120 | 10-120 | 10-120 |
| Working Capacity(kg/h) | 2-5 | 10-20 | 50-250 | 80-300 |
| Motor Power (kw) | 1.1 | 2.2 | 5.5 | 7.5 |
| | | | | |
| Dimension(mm) | 550*400*950 | 420*600*1000 | 860*500*1360 | 880*520*1450 |
| Material of machine(SUS) | 304 | 304 | 304 | 304 |
