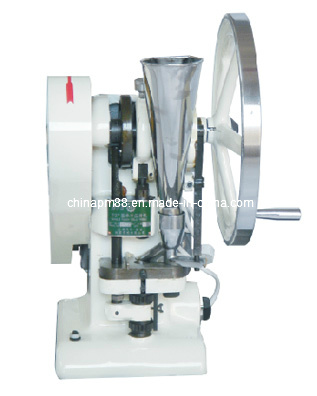

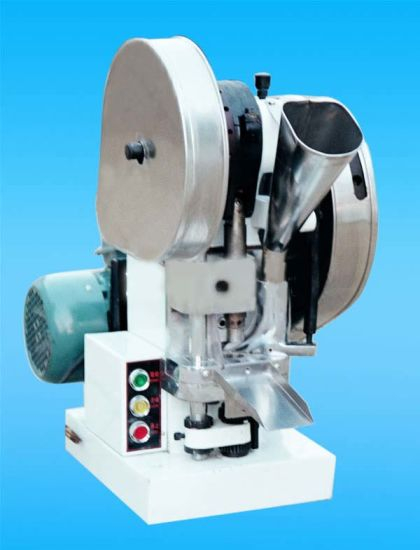

Single Tablet Press for Lab (TDP)

Quantity:
  • Shanghai, China
  • 800
  • L/C, T/T, Western Union
  • TDP6
  • Customized
  • New
  • <1 Year
  • for Hard Pressing Materials and Big Tablets
  • syq
  • Wooden Case
  • ISO
  • Shanghai
  • 8479900000
  • Preparation Machinery
  • Tablet
  • Precision
  • ISO
  • 220V
  • Non-Computerized
This Single-punch tablet press, TDP is designed for pressing tablets from a variety of granulated materials. The Single-punch tablet press is a pressing machine driven by motor or hand. One punch die set is included. Filling depth, tablet thickness, and punch pressure are all adjustable. Our Single-punch tablet press is an ideal equipment for laboratory, research department and small manufacturers.
Single Tablet Press for Lab (TDP)

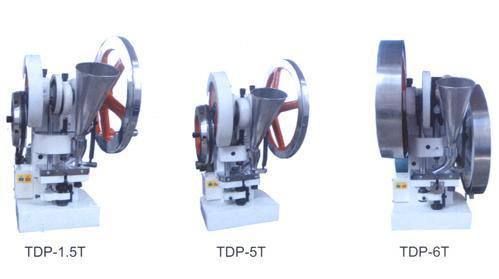

Model
TDP-1.5
TDP-5
TDP-6
Max. Pressure (kN)
15
50
60
Max. dia. of tablet (mm)
12
20
25
Max. Depth of fill (mm)
12
16
16
Thickness of largest tablet (mm)
6
6
6
Production capacity (pcs/h)
5000
4500
5000
. Motor (KW)
0.55
0.75
1.1
Overall size(mm)
700*370*800
700*400*800
700*500*900
Net weight
48
125
140
