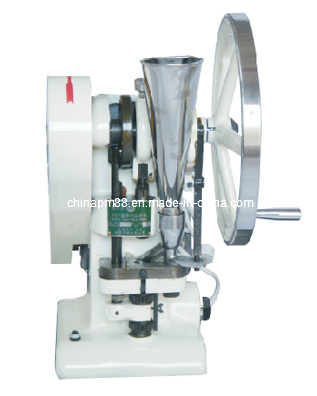

Single Punch Tablet Press (TDP1.5)

  • 2000PCS/Y
  • Standard Packaging
  • L/C, T/T
  • TDP1.5
  • Customized
  • New
  • <1 Year
  • Small Pharaceutical Machinery
  • with Different Choices for Compress Presure
  • SYQ
  • CE
  • Shanghai, China
  • 8479820090
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, GMP, ISO
  • 220V
  • Non-Computerized
This Single-punch tablet press is designed for pressing tablets from a variety of granulated materials. The Single-punch tablet press is a pressing machine driven by motor or hand. One punch die set is included. Filling depth, tablet thickness, and punch pressure are all adjustable. Our Single-punch tablet press is an ideal equipment for laboratory, research department and small manufacturers.

Model TDP1.5
Maximum Pressure(KN) 1.5
Maximum Dia. Of Tablet(mm) 12
Maximum Filling Depth(mm) 12
Maximum Thickness of Tablet(mm) 6
Production Capacity(pieces/hour) 5000
Motor power(KW) 0.55
Overall Size(mm) 700*370*800
Weight(KG) 90
GW. : 130

You may have the othe choices: ZP-9, GMP standard for small scaled manufacturing and for R & D.

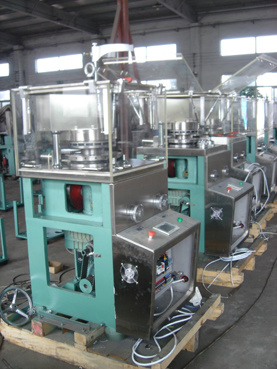

Features of ZP-5, 7, 9
1) It is a single-sided press machine.
2) It continues automatic working for pressing powder raw materials or granules into tablets. It is mainly used in pharmaceutical, chemical, food and electronic industries.
3) The cover of ZP 5/7/9 rotary tablet press machine is made of stainless steel with close type. The tablet press machine is made of stainless steel materials which could keep surface luster and prevent from cross pollution.
4) ZP 5/7/9 punching automatic rotary tablet press machine meets GMP requirement.
5) Easy cleaning and maintenance.
6) The speed is adjustable.
7) An overload protection unit is included in the system to avoid the damage of the punches and apparatus. When overloaded, the machine stops automatically. This machine also has electronic magic driver and other safety protection device which can be adjusted and operated when running.

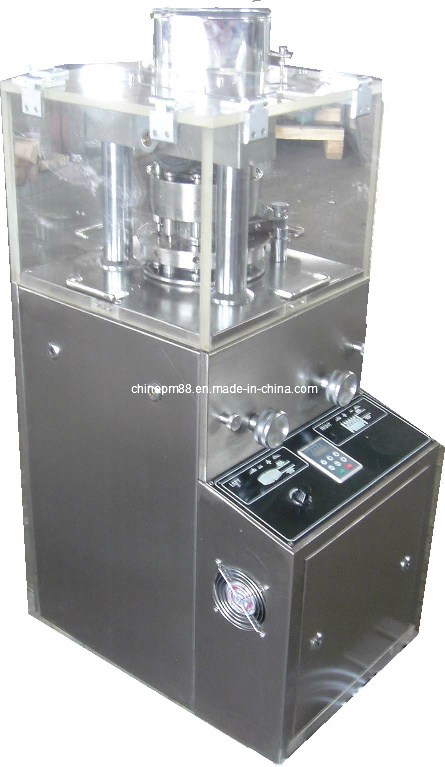

Technical Parameters of ZP-9(strengthened model)

Model NumberZP-9B
Punch & Dies(PCS)9
Max. Pressure (KN)60
Max. Diameter(MM)20
Max. filling depth(MM)15
Max. tablet thickness(MM)6
Turret Speed(R/M)0-30
Max. Working Capacity(tablets per hour)16200
Overall dimension(MM)480×630×1100

Single Punch Tablet Press (TDP1.5)

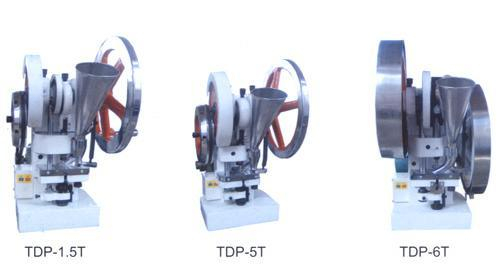

Model TDP-1.5 TDP-5 TDP-6
Maximum Pressure(KN) 15 50 60
Maximum Dia. Of Tablet(mm) 12 20 25
Maximum Filling Depth(mm) 12 16 16
Maximum Thickness of Tablet(mm) 6 6 6
Production Capacity(pieces/hour) 5000 4500 4500
Motor power(KW) 0.55 0.75 1.1
Overall Size(mm) 700*370*800 700*400*800 700*500*900
Weight(KG) 90 125 145
GW. 130 170 190
